product name

1421-0 Briggs and Stratton Pressure Washer 4,000 PSI

Model: 1421-0

Save
 Part Not Listed?Part Not Listed?
product name

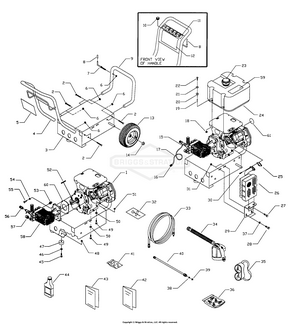

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
BOLT, Carriage BS-B2043GS
...
3
BASE BS-BB5205
...
4
HANDLE BS-CB3861CGS
...
5
DECAL, INSTRCTN, START, PW BS-186490GS
...
6
NUT, Lock BS-99583GS
...
7
HOOK, Gun BS-B2150GS
...
8
CAP, Vinyl, Black BS-B2516GS
...
9
BUMPER BS-CB4105GS
...
10
GROMMET BS-30809GS
...
11
DECAL, 5 QD Nozzles BS-B4159GS
...
12
DECAL, LOGO, 01421 BS-B5218GS
...
13
ASSY., Wheel & Tire 10" BS-88521GS
...
14
PUSHNUT BS-194062GS
...
15
CLAMP, Hose 13/32" BS-48031GGS
...
16
FILTER-CHEM HOSE BS-709496
...
17
HOSE-CHEMICAL BS-705076
...
18
NUT, FLANGE LOCK - M6 BS-77395GS
...
19
SLEEVE, Grommet Space BS-B2513
...
20
BSHNG, MNTNG, TANK BS-B2465GS
...
21
WASHER BS-B2495GS
...
22
SCREW BS-38750GS
...
23
CAP, Fuel Tank BS-846987
...
24
ASSY, TANK, FUEL, 2 GAL BS-B2346GS
...
25
GASKET, Exhaust BS-90239GS
...
26
MUFFLER BS-A7433GS
...
27
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
28
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
29
BRCKT, MFFLR BS-186327GS
...
30
SHCS, M8 - 1.25 x 20 BS-40976
...
31
NUT BS-194005GS
...
32
KIT, Nozzle Cleaning BS-B2509
...
33
Hose BS-205734GS
...
34
GUN BS-704311
...
35
GOGGLES BS-87815GS
...
36
KIT, Spray Tips BS-B4847GS
...
38
SCREEN, Gun Inlet BS-B4224GS
...
39
O-RING, Hi Pressure BS-97837GS
...
40
ASSY., Nozzle Ext. with QD BS-B3858
...
41
KIT, Maintenance, O-Ring BS-191922GS
...
42
MANUAL-OPERATOR BS-B5226GS
...
43
MANUAL, Engine BS-A8927GS
...
44
BOTTLE, Oil BS-BB3061GS
...
45
SCREW BS-42909GS
...
46
Washer, .34 x 1 x 10 BS-50190GS
...
47
VIBE MOUNT, with Washer BS-191413GS
...
48
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
49
BOLT, M8 - 1.25 x 40 mm BS-57821
...
51
NUT, Hex Locking Flange M8 BS-67989GS
...
52
KEYSTOCK, 1/4X2 BS-703890
...
53
THERMAL RELIEF BS-195016GS
...
54
WASHER, Lock BS-22129GS
...
55
BOLT, HEX, 5/16-24X1 BS-703301
...
56
CONNECTOR, Quick Connect BS-95458
...
57
INLET, Garden Hose BS-186839GS
...
58
PUMP, ANNOVI, [email protected] (See "Pump" & "Unloader" illustration & parts lists) BS-185806GS
...
59
LABEL, Warning BS-21786GS
...
60
PLATE, Spacer BS-B186659
...
61
DECAL, RECOIL, GN-410 BS-91682GGS
...
FILTER, Garden Hose Parts Not Shown BS-B2384GS
...
Kit, Valve Parts Not Shown BS-192980GS
...
Kit, Valve Parts Not Shown BS-192980GS

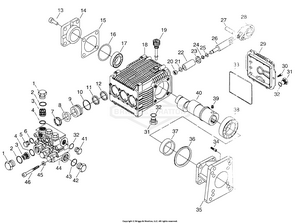

Pump

...
...
1
Plug BS-101B2327GS
...
2
O-Ring BS-100B2327
...
3
Valve BS-102B2327GS
...
4
O-Ring BS-103B2327
...
5
Plug BS-104B2327GS
...
6
O-Ring BS-105B2327
...
7
Support Ring BS-106B2327GS
...
8
Gasket BS-107B2327GS
...
9
Piston Guide BS-108B2327GS
...
10
O-Ring BS-109B2327GS
...
11
Gasket BS-110B2327GS
...
12
Seal BS-186381GS
...
13
Screw BS-112B2327
...
14
Bearing Support BS-113B2327GS
...
15
Shim BS-132B2327GS
...
16
Circlip BS-10887628PGS
...
17
Bearing BS-186382GS
...
18
Pump Housing BS-186383GS
...
19
Oil Cap BS-117B2327
...
20
Nut BS-118B2327GS
...
21
Washer BS-119B2327GS
...
22
Piston BS-120B2327GS
...
23
Spacer BS-121B2327GS
...
24
O-Ring BS-122B2327
...
25
Ring BS-161B2327
...
26
Piston Guide BS-123B2327GS
...
27
Piston Pin BS-124B2327GS
...
28
Con Rod BS-186384GS
...
29
Complete Rear Cover BS-118B2126GS
...
30
Screw BS-1343501
...
31
PLUG-DRAIN BS-203034GS
...
32
O-Ring BS-134B2327
...
33
O-Ring BS-116B2126GS
...
34
Screw BS-142B2126
...
35
Gas Engine Flange BS-150B2126GS
...
36
O-Ring BS-139B1410GS
...
37
Seal BS-138B1410GS
...
38
Bearing BS-137B1410GS
...
39
Grub Screw BS-152B2126GS
...
40
Shaft BS-186386GS
...
41
Plug BS-136B2327GS
...
42
PLUG BS-138B2327GS
...
43
O-Ring BS-137B2327GS
...
44
Pump Head BS-139B2327GS
...
45
Washer BS-159B2327GS
...
46
Screw BS-140B2327GS

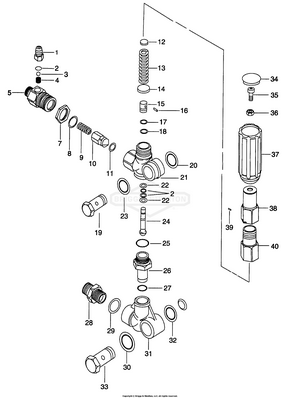

Unloader

...
...
1
HOSE TAIL BS-190642GS
...
2
KIT, Chemical Injection BS-192914GS
...
3
BALL BS-211B2327GS
...
4
Spring BS-212B2327GS
...
5
Injector Body BS-213B2126GS
...
7
Injector Nut BS-215B2327GS
...
8
O-Ring BS-137B2327GS
...
9
Spring BS-216B2327GS
...
10
Plunger BS-217B2327GS
...
11
O-Ring BS-218B2327GS
...
12
Spacer Plate BS-220B2327GS
...
13
Spring BS-221B2327GS
...
14
Spring, Spacer Plate BS-222B2327GS
...
15
Upper Piston BS-219B2327GS
...
16
Pin BS-223B2327GS
...
17
Ring BS-224B2327GS
...
18
O-Ring BS-225B2327GS
...
19
Inlet Bolt BS-226B2327GS
...
20
Washer BS-227B2327GS
...
21
Valve Housing BS-228B2327GS
...
22
Ring BS-229B2327GS
...
23
Washer BS-230B2327GS
...
24
Lower Piston BS-232B2327GS
...
25
O-Ring BS-234B2327GS
...
26
Piston Guide BS-233B2327GS
...
27
O-Ring BS-235B2327GS
...
28
Suction Fitting BS-241B2327GS
...
29
O-Ring BS-240B2327GS
...
30
Washer BS-239B2327GS
...
31
Bypass Fitting BS-238B2327GS
...
32
Washer BS-237B2327GS
...
33
Inlet Bolt BS-236B2327GS
...
34
Plug BS-248B2327GS
...
35
Screw BS-155B2327GS
...
36
Nut BS-246B2327GS
...
37
Knob BS-245B2327GS
...
38
Housing BS-243B2327GS
...
39
Pin BS-244B2327GS
...
40
Spring Guide BS-242B2327GS
...
Complete Unloader BS-153B2126GS
...
...
...
