1420-0 Briggs and Stratton Pressure Washer 3,500 PSI

Model: 1420-0

Save
 Part Not Listed?Part Not Listed?
product name

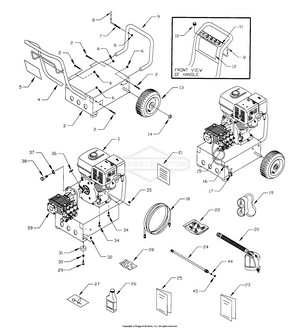

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
BOLT, Carriage BS-B2043GS
...
3
BASE, Powder Coat Black BS-BB5205
...
4
HANDLE, Powder Coat Blk Wrnkle BS-CB3861A
...
5
DECAL, Instructions BS-84160
...
6
NUT, Lock BS-99583GS
...
7
HOOK, 5/16" Square Neck Gun BS-82150
...
8
CAP, Black Vinyl .280" BS-82516
...
9
BUMPER BS-CB4105GS
...
10
GROMMET BS-30809GS
...
11
DECAL, 5 QD Nozzles BS-B4159GS
...
12
DECAL, UNIT, PW, 01420 BS-186011GS
...
13
ASSY., Wheel & Tire 10" BS-88521GS
...
14
PUSHNUT BS-194062GS
...
15
CLAMP, Hose 13/32" BS-48031GGS
...
16
HOSE-CHEMICAL BS-705076
...
17
FILTER-CHEM HOSE BS-709496
...
18
Hose BS-205734GS
...
19
GOGGLES BS-87815GS
...
20
GUN BS-704311
...
21
CARD, Owners Registration BS-88681
...
22
KIT, Spray Tips BS-B4847GS
...
23
MANUAL, Owners 1420-0 BS-185829
...
24
ASSY, Wand Ext. with OD BS-83858
...
25
MANUAL, Honda BS-~NSP
...
26
BOTTLE, Oil BS-100005
...
27
KIT, Nozzle Cleaning BS-B2509
...
28
KIT, Maintenance, O-Ring BS-191922GS
...
29
SCREW BS-42909GS
...
30
Washer, .34 x 1 x 10 BS-50190GS
...
31
VIBE MOUNT, with Washer BS-191413GS
...
32
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
34
BOLT BS-64416GS
...
35
NUT, Lock BS-52859GS
...
36
KEYSTOCK, 1/4X2 BS-703890
...
37
LOCKWASHER, SPLIT 3/8 BS-703454
...
38
SCREW BS-23645GS
...
39
ASSY, Complete Pump (See "Pump and Unloader" Illustration and Parts List) BS-187263
...
44
SCREEN, Gun Inlet BS-B4224GS
...
45
O-RING, Hi Pressure BS-97837GS

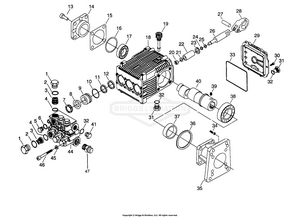

Pump

...
...
Complete Pump Assy (See "Unloader" Illustration and Parts List) BS-187263
...
1
Plug BS-101B2327GS
...
2
O-Ring BS-100B2327
...
3
Valve BS-102B2327GS
...
4
O-Ring BS-103B2327
...
5
Plug BS-104B2327GS
...
6
O-Ring BS-105B2327
...
7
Support Ring BS-106B2327GS
...
8
Gasket BS-107B2327GS
...
9
Piston Guide BS-108B2327GS
...
10
O-Ring BS-109B2327GS
...
11
Gasket BS-110B2327GS
...
12
Seal BS-186381GS
...
13
Screw BS-112B2327
...
14
Bearing Support BS-113B2327GS
...
15
Shim BS-132B2327GS
...
16
Circlip BS-10887628PGS
...
17
Bearing BS-186382GS
...
18
Pump Housing BS-186383GS
...
19
Oil Cap BS-117B2327
...
20
Nut BS-118B2327GS
...
21
Washer BS-119B2327GS
...
22
Piston BS-120B2327GS
...
23
Spacer BS-121B2327GS
...
24
O-Ring BS-122B2327
...
25
Ring BS-161B2327
...
26
Piston Guide BS-123B2327GS
...
27
Piston Pin BS-124B2327GS
...
28
Con Rod BS-186384GS
...
29
Complete Rear Cover BS-118B2126GS
...
31
PLUG-DRAIN BS-203034GS
...
32
O-Ring BS-134B2327
...
33
O-Ring BS-116B2126GS
...
34
Screw BS-142B2126
...
35
Gas Engine Flange BS-150B2126GS
...
36
O-Ring BS-139B1410GS
...
37
Seal BS-138B1410GS
...
38
Bearing BS-137B1410GS
...
39
Grub Screw BS-152B2126GS
...
40
Shaft BS-186386GS
...
41
Plug BS-136B2327GS
...
44
Pump Head BS-139B2327GS
...
45
Washer BS-159B2327GS
...
46
Screw BS-140B2327GS
...
47
THERMAL RELIEF BS-195016GS

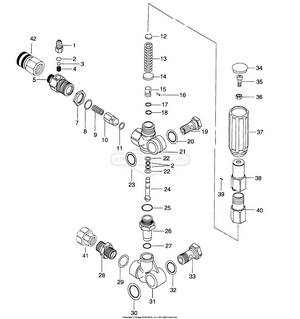

Unloader

...
...
Complete Unloader BS-153B2126GS
...
1
HOSE TAIL BS-190642GS
...
2
KIT, Chemical Injection BS-192914GS
...
3
BALL BS-211B2327GS
...
4
Spring BS-212B2327GS
...
5
Injector Body BS-213B2126GS
...
7
Injector Nut BS-215B2327GS
...
8
O-Ring BS-137B2327GS
...
9
Spring BS-216B2327GS
...
10
Plunger BS-217B2327GS
...
11
O-Ring BS-218B2327GS
...
12
Spacer Plate BS-220B2327GS
...
13
Spring BS-221B2327GS
...
14
Spring, Spacer Plate BS-222B2327GS
...
15
Upper Piston BS-219B2327GS
...
16
Pin BS-223B2327GS
...
17
Ring BS-224B2327GS
...
18
O-Ring BS-225B2327GS
...
19
Inlet Bolt BS-226B2327GS
...
20
Washer BS-227B2327GS
...
21
Valve Housing BS-228B2327GS
...
22
Ring BS-229B2327GS
...
23
Washer BS-230B2327GS
...
24
Lower Piston BS-232B2327GS
...
25
O-Ring BS-234B2327GS
...
26
Piston Guide BS-233B2327GS
...
27
O-Ring BS-235B2327GS
...
28
Suction Fitting BS-241B2327GS
...
29
O-Ring BS-240B2327GS
...
30
Washer BS-239B2327GS
...
31
Bypass Fitting BS-238B2327GS
...
32
Washer BS-237B2327GS
...
33
Inlet Bolt BS-236B2327GS
...
34
Plug BS-248B2327GS
...
35
Screw BS-155B2327GS
...
36
Nut BS-246B2327GS
...
37
Knob BS-245B2327GS
...
38
Housing BS-243B2327GS
...
39
Pin BS-244B2327GS
...
40
Spring Guide BS-242B2327GS
...
41
Conn, Gdn Hse BS-95320GS
...
42
Quick Connect Connector BS-95458
...
...
...
