1418-1 Briggs and Stratton Pressure Washer 3,000 PSI

Model: 1418-1

Save
 Part Not Listed?Part Not Listed?
product name

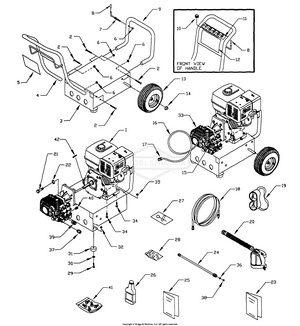

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
BOLT, Carriage BS-B2043GS
...
3
BASE, HSPW, PWDR CT, BLK BS-BB2226BGS
...
4
HANDLE BS-CB3861A
...
5
DECAL, Operating Instructions BS-B4160GS
...
6
NUT, Lock BS-99583GS
...
7
HOOK, Gun BS-B2150GS
...
8
CAP, Vinyl, Black BS-B2516GS
...
9
BUMPER BS-CB4105GS
...
10
GROMMET BS-30809GS
...
11
DECAL, 5 QD Nozzles BS-B4159GS
...
12
DECAL, UNIT, PW, 01418 BS-B5607GS
...
13
ASSY., Wheel & Tire 10" BS-88521GS
...
14
PUSHNUT BS-194062GS
...
15
CLAMP, Hose 13/32" BS-48031GGS
...
16
HOSE-CHEMICAL BS-705076
...
17
FILTER-CHEM HOSE BS-709496
...
18
Hose BS-205734GS
...
19
GOGGLES BS-87815GS
...
20
GUN BS-704311
...
21
SCREW BS-23645GS
...
22
LOCKWASHER, SPLIT 3/8 BS-703454
...
23
MANUAL, Owners BS-186777
...
24
ASSY., Nozzle Ext. with QD BS-B3858
...
25
MANUAL, Engine BS-B1464GS
...
26
BOTTLE, Oil BS-100005
...
27
KIT, Nozzle Cleaning BS-B2509
...
28
KIT, Maintenance, O-Ring BS-191922GS
...
29
SCREW BS-42909GS
...
30
Washer, .34 x 1 x 10 BS-50190GS
...
31
VIBE MOUNT, with Washer BS-191413GS
...
32
NUT, Hex Locking Flange M8 BS-67989GS
...
33
ASSY, Pump (See "Pump" and "Unloader" illustrations and parts lists) BS-B2126AGS
...
34
BOLT BS-64416GS
...
35
NUT, Lock BS-52859GS
...
36
SCREEN, Gun Inlet BS-B4224GS
...
37
Conn, Gdn Hse BS-95320GS
...
38
O-RING, Hi Pressure BS-97837GS
...
39
QUICK CONNECT BS-95458
...
40
THERMAL RELIEF BS-195016GS
...
41
KIT, Nozzles QD BS-186301GS
...
42
KEYSTOCK, 1/4X2 BS-703890

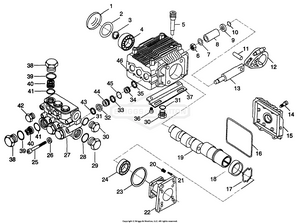

Pump

...
...
1
Cap BS-110B2126GS
...
2
Circlip BS-10887628PGS
...
3
Snap Ring BS-112B2126GS
...
4
Bearing BS-113B2126GS
...
5
DIPSTICK, Pump BS-11287628PGS
...
6
Piston Washer BS-11187822PGS
...
7
Piston Washer BS-11187822PGS
...
8
Piston BS-123B2126GS
...
9
Spacer Disc BS-11687628PGS
...
10
KIT, Chemical Injection BS-192914GS
...
11
Piston Pin BS-115B2126GS
...
12
Con Rod BS-119B2126GS
...
13
Guiding Piston BS-120B2126GS
...
14
Screw BS-117B2126GS
...
15
Complete Rear Cover BS-118B2126GS
...
16
O-Ring BS-116B2126GS
...
17
Snap Ring BS-12687628PGS
...
18
Bearing BS-12587628PGS
...
19
Hollow Shaft BS-149B2126GS
...
20
Grub Screw BS-152B2126GS
...
21
Screw BS-155B2327GS
...
22
Gas Engine Flange BS-150B2126GS
...
23
Bushing BS-151B2126GS
...
24
Seal BS-12187822PGS
...
25
Screw BS-10087822PGS
...
26
Washer BS-137B2126GS
...
27
Head BS-136B2126GS
...
28
O-Ring BS-137B2327GS
...
29
O-Ring BS-10387628PGS
...
30
Plug BS-10487628PGS
...
31
O-Ring BS-10387628PGS
...
32
Gasket BS-10587822PGS
...
33
Gasket BS-10393360PGS
...
34
Rear Piston Guide BS-131B2126GS
...
35
Seal BS-16593360PGS
...
36
Screw BS-129B2126GS
...
37
Foot BS-126B2126GS
...
38
PLUG BS-190641GS
...
39
O-Ring BS-100B2327GS
...
40
Complete Valve BS-10287822PGS
...
41
O-Ring BS-10387822PGS
...
42
Plug BS-11193360PGS
...
43
Support Ring BS-106B2126GS
...
44
Piston Guide BS-108B2126GS
...
45
O-Ring BS-10493360PGS
...
46
Pump Body BS-109B2126GS
...
A
KIT,Valve Includes item no(s). 40 and 41 BS-193955GS
...
B
KIT-PISTON Includes item no. 8 BS-201B2126GS
...
C
KIT-OIL SEAL Includes item no(s). 1, 16, and 35 BS-202B2126GS
...
D
KIT-WATER SEAL Includes item no(s). 32 and 45 BS-203B2126GS
...
E
KIT-SUPPORT RING Includes item no. 43 BS-204B2126GS
...
F
Pump Head Kit BS-205B2126GS

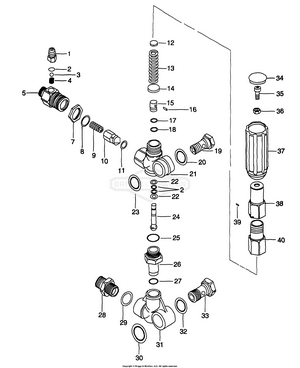

Unloader

...
...
1
HOSE TAIL BS-190642GS
...
2
KIT, Chemical Injection BS-192914GS
...
3
BALL BS-211B2327GS
...
4
Spring BS-212B2327GS
...
5
Injector Body BS-213B2126GS
...
7
Injector Nut BS-215B2327GS
...
8
O-Ring BS-137B2327GS
...
9
Spring BS-216B2327GS
...
10
Plunger BS-217B2327GS
...
11
O-Ring BS-218B2327GS
...
12
Spacer Plate BS-220B2327GS
...
13
Spring BS-221B2327GS
...
14
Spring, Spacer Plate BS-222B2327GS
...
15
Upper Piston BS-219B2327GS
...
16
Pin BS-223B2327GS
...
17
Ring BS-224B2327GS
...
18
O-Ring BS-225B2327GS
...
19
Inlet Bolt BS-226B2327GS
...
20
Washer BS-227B2327GS
...
21
Valve Housing BS-228B2327GS
...
22
Ring BS-229B2327GS
...
23
Washer BS-230B2327GS
...
24
Lower Piston BS-232B2327GS
...
25
O-Ring BS-234B2327GS
...
26
Piston Guide BS-233B2327GS
...
27
O-Ring BS-235B2327GS
...
28
Suction Fitting BS-241B2327GS
...
29
O-Ring BS-240B2327GS
...
30
Washer BS-239B2327GS
...
31
Bypass Fitting BS-238B2327GS
...
32
Washer BS-237B2327GS
...
33
Inlet Bolt BS-236B2327GS
...
34
Plug BS-248B2327GS
...
35
Screw BS-155B2327GS
...
36
Nut BS-246B2327GS
...
37
Knob BS-245B2327GS
...
38
Housing BS-243B2327GS
...
39
Pin BS-244B2327GS
...
40
Spring Guide BS-242B2327GS
...
0
Complete Unloader BS-153B2126GS
...
Service Kit Includes items 11, 17, 18, 20, 22, 23, 2, 25, 27, 32, 30, 29, and 8 BS-250B2327GS
...
...
...
