1329-0 Briggs and Stratton Portable Generator SE5000, 5,000 Watt

Model: 1329-0

Save
 Part Not Listed?Part Not Listed?
product name

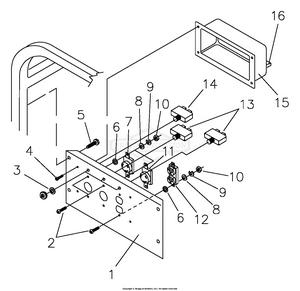

Control Panel

...
...
1
PANEL, Control BS-B81897
...
2
SCREW, M4 - 0.7 x 10mm BS-75475
...
3
WASHER, 7/16" Int Lock BS-82881GS
...
4
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
5
SCREW BS-313085GS
...
6
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
7
OUTLET-120V TL30A BS-705932
...
8
WASHER BS-38150GS
...
9
WASHER, No. 8 Lock BS-22264
...
10
NUT, M4-0.7 Hex BS-51715GS
...
11
OUTLET, 120/240V Locking, 20A BS-68867GS
...
12
OUTLET, 20A,120V BS-68759GS
...
13
BREAKER-CIRCUIT 20A BS-209872GS
...
14
BREAKER-CIRCUIT 30A BS-706178
...
15
PANEL, Control, Back, Plastic BS-81919GS
...
16
HOUSING, Receptacle BS-22694GS

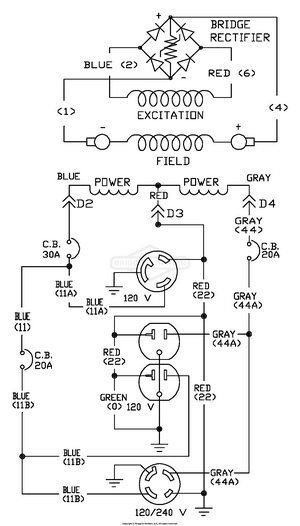

Electrical Schematic

...

No Parts Available for this Schematic

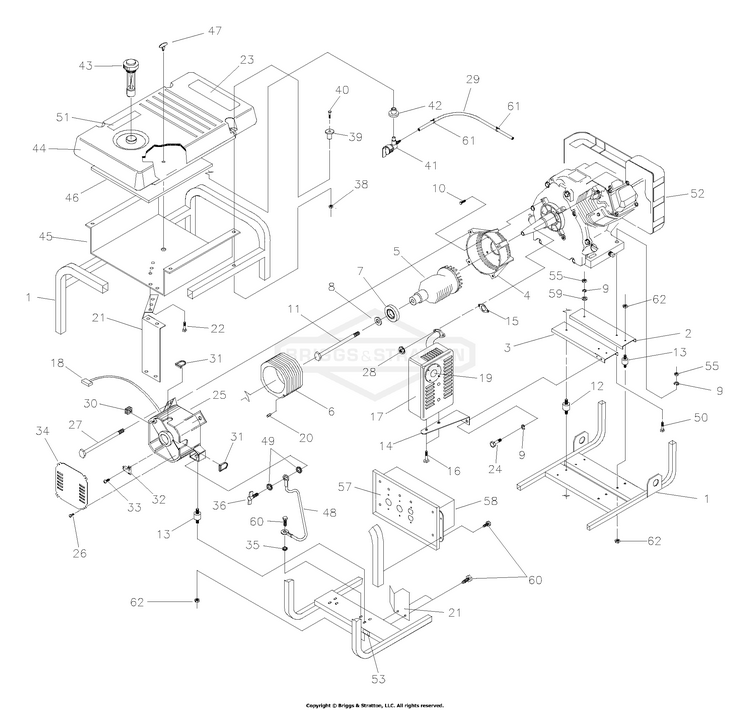

Generator

...
...
1
CRADLE BS-AB4314
...
2
SUPPORT, Engine BS-A92531GS
...
3
SPPRT, ENG/MFFLR BS-AB4340GS
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
ASSY, Rotor BS-91844JGS
...
6
ASSY, Stator BS-91859AGS
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-97696
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
FLOOR PLATE BS-5047480B
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
14
BRACKET, Muffler BS-92532GS
...
15
GASKET BS-710250
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
MUFFLER BS-B4206GS
...
18
FASTEN, On Tab Housing 6P BS-22695GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
SHIELD, Heat BS-192983GS
...
22
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
23
DECAL, START INSTRUCTIONS BS-93826GS
...
24
MODULE BS-84009650
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT, Stator BS-86308CGS
...
28
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
29
HOSE, 1/4" I.D. BS-30340
...
30
GROMMET, RUBBER BS-67022GS
...
31
GROMMET, Plastic RBC BS-84242GS
...
32
ASSEMBLY, Brush Holder BS-91825
...
33
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
34
COVER, Bearing Carrier BS-B67025
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
SCREW BS-691677
...
44
ASSY,Tank, Fuel BS-193500GS
...
45
HEATSHIELD BS-208564GS
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL HYDROWALK (DD61) BS-5022531
...
51
DECAL, Danger BS-194799GS
...
52
ENGINE BS-~NSP
...
53
DECAL, Ground BS-B4986GS
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
DECAL, Control Panel BS-B4252
...
58
PNL, CNTRL, TAIWAN BS-81898GS
...
60
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
61
CLAMP, Hose 1/2" BS-48031C
...
--
PLUG, 125V 30A 3-Prong Accessories Not Illustrated BS-100523GS
...
--
PLUG-120/240V TL20A Accessories Not Illustrated BS-100522GS
...
--
BOTTLE, Oil Accessories Not Illustrated BS-BB3061GS

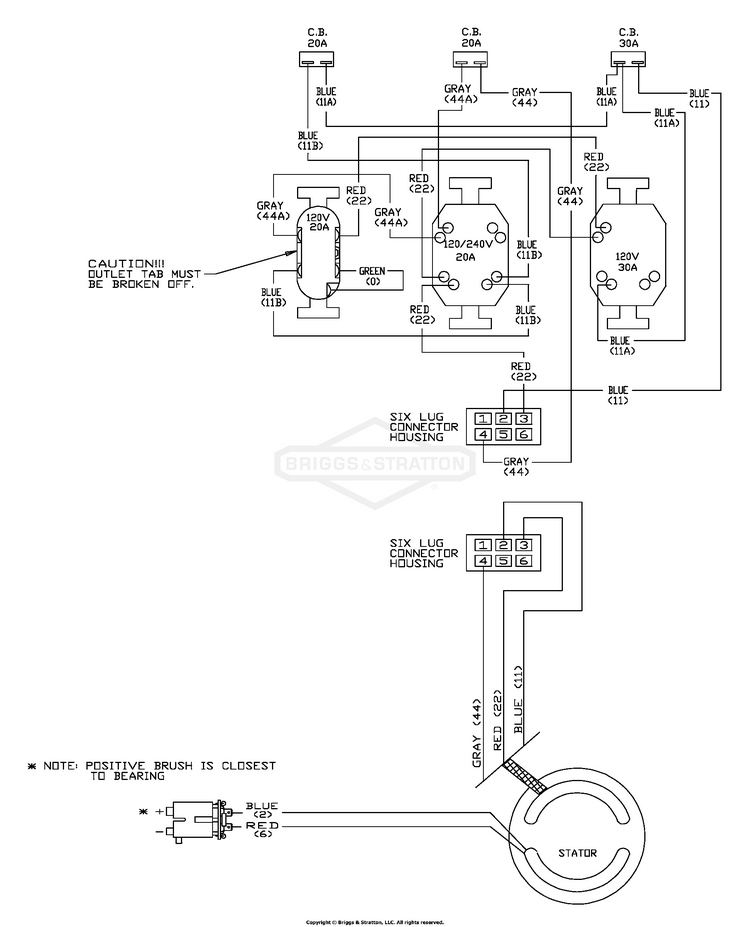

Wiring Diagram

...
