product name

1292-1 Briggs and Stratton Pressure Washer 2,300 PSI

Model: 1292-1

Save
 Part Not Listed?Part Not Listed?

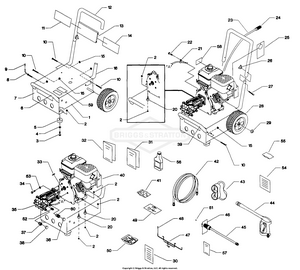

product name

Pressure Washer

...
...
1
BASE BS-AB1770
...
2
NUT, Hex Locking Flange M8 BS-67989GS
...
3
SCREW BS-42909GS
...
4
Washer, .34 x 1 x 10 BS-50190GS
...
5
VIBE MOUNT, with Washer BS-191413GS
...
6
DECAL, 1-800 Number BS-20566GS
...
7
DECAL, BASE, PW BS-B2192GS
...
8
HOOK, Gun BS-B2150GS
...
9
CAP, Vinyl, Black BS-B2516GS
...
10
BOLT, Carriage BS-B2043GS
...
11
DECAL, UNIT, PW, 01292 BS-B3760GS
...
12
HANDLE BS-B1983GS
...
13
BILLBOARD, Plastic BS-B1631AGS
...
14
DECAL, Instructions BS-B1932GS
...
15
NUT, Lock BS-99583GS
...
16
SUPPORT, Handle BS-CB1981GS
...
20
MOUNT, Rubber Shock BS-21217GS
...
21
CLAMP, Hose BS-B1232GS
...
22
TAPTITE, #10-32 X 5/8 BS-32713GS
...
23
HOSE-CHEMICAL BS-705076
...
24
FILTER-CHEM HOSE BS-709496
...
25
TAG, Oil Warning BS-70453GS
...
26
KNOB, Handle BS-97178GS
...
27
BOLT, Carriage BS-31669GS
...
28
WHL, 3.00 X 10.00, S-PNEU, 1/2 BS-B1760GS
...
29
PUSHNUT BS-194062GS
...
30
SHEET, WARNING, BREATHER BS-B4095GS
...
31
MANUAL, Operator's BS-277040
...
32
MANUAL-OPERATOR BS-B4730GS
...
33
KEY BS-23139BGS
...
34
SCREW BS-95531GS
...
35
PUMP, GNRL, [email protected] BS-B3699AGS
...
36
CAP, QC, PRSSR, HI BS-B4757GS
...
37
KIT, Inlet, Hose, Garden BS-194004GS
...
38
CAP, GRDN HOSE, INLET BS-97098GS
...
39
BUMPER BS-B1982GS
...
41
KIT, "O" Ring BS-B3057
...
42
HOSE, 25 FT, M QC/F QC BS-B4719GS
...
43
GOGGLES BS-87815GS
...
44
GUN, High Pressure BS-B4720
...
45
ASSY, WAND, 1.20 BS-188792CGS
...
46
TAG, Nozzle Instructions BS-97566GS
...
47
HANGER, Hose, Gun, Jug BS-B2168AGS
...
48
CAP, Vinyl Black BS-B1460GS
...
49
KIT, Nozzle Cleaning BS-B2163
...
50
KIT, Hardware, Handle BS-B2203GS
...
51
NOZZLE, Replacement BS-92661GS
...
52
VLV, THERMAL RELIEF BS-B3213GS
...
53
WASHER, Lock BS-92479GS
...
54
CARD, Owner Registration BS-88681
...
55
STABILIZER, FUEL, 1 OZ BS-85883GS
...
56
BOTTLE, Oil BS-100005
...
57
BRCHR, STABIL GEN BS-83831GS
...
58
DECAL, STA-BIL BS-81886GS
...
59
DECAL, IMPORTANT, PURG AIR BS-B4099GS
...
60
QUICK DISCONNECT, Hose to Gun BS-95458

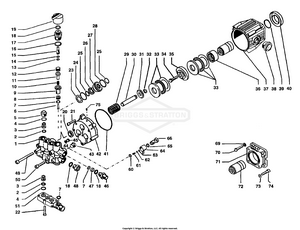

Pump

...
...
1
MANIFOLD BS-100B3699GS
...
2
O-RING 12.42 X 1.78 BS-101B3699
...
3
VALVE UNIT BS-102B3699GS
...
4
O-RING BS-103B3699GS
...
5
VALVE CAP BS-104B3699GS
...
6
SCREW BS-105B3699GS
...
7
O-RING BS-106B3699GS
...
8
VALVE SEAT BS-107B3699GS
...
9
SPACER BS-108B3699GS
...
10
SPRING BS-109B3699GS
...
11
UNLOADER PISTON BS-110B3699GS
...
12
RING-SPLIT BS-187292GS
...
13
O-RING BS-112B3699GS
...
14
ANTI-EXTRUSION RING BS-113B3699GS
...
15
UNLOADER STEM BS-114B3699GS
...
16
O-RING BS-115B3699
...
17
GUIDE BS-116B3699GS
...
18
O-RING BS-117B3699
...
19
REGULATING KNOB BS-118B3699GS
...
20
OIL SEAL BS-119B3699GS
...
21
SCREW BS-120B3699GS
...
22
SCREW, M6 X 30 BS-121B3699
...
23
HEAD RING BS-122B3699GS
...
24
O-RING BS-123B3699GS
...
25
O-RING BS-124B3699
...
26
PACKING BS-125B3699GS
...
27
RETAINER BS-126B3699GS
...
28
O-RING BS-127B3699
...
29
SPRING BS-128B3699GS
...
30
ASSY, PISTON BS-129B3699GS
...
31
SPRING PLATE BS-130B3699GS
...
32
SPRING PLATE RETAINER BS-131B3699GS
...
33
ROLLER BEARING BS-132B3699GS
...
34
SCREW,M8 X 28 BS-133B3699
...
35
WOBBLE PLATE BS-134B3699GS
...
36
BEARING BUSHING BS-135B3699GS
...
37
CRANKCASE BS-136B3699GS
...
38
SIGHT GLASS BS-137B3699
...
39
SNAP RING BS-138B3699GS
...
40
OIL SEAL BS-139B3699GS
...
41
O-RING BS-140B3699
...
42
PISTON GUIDE BS-141B3699GS
...
44
PLUG, M14 X 1.5 X 9MM BS-142B3699
...
PLUG BS-143B3699GS
...
45
O-RING BS-144B3699GS
...
46
NIPPLE,M22 X 1.5 BS-14192293P
...
47
ORIFICE BS-146B3699GS
...
48
PLUG, 3/8 BS-147B3699GS
...
49
SCREW BS-148B3699GS
...
50
SCREW BS-149B3699GS
...
51
INLET MANIFOLD BS-150B3699GS
...
60
O-RING BS-151B3699
...
61
SPRING, CONICAL BS-152B3699
...
62
BALL, 7/32" BS-153B3699
...
63
O-RING BS-154B3699
...
64
HOSE BARB BS-155B3699
...
65
O-RING BS-11292294PGS
...
66
INJECTOR HOUSING BS-157B3699GS
...
69
WASHER BS-158B3699
...
70
SCREW BS-159B3699GS
...
71
GAS MOUNTING FLANGE BS-160B3699GS
...
72
CRANKSHAFT BS-161B3699GS
...
73
WASHER BS-162B3699
...
74
SCREW BS-163B3699
...
75
VENT PLUG BS-164B3699GS
...
HIGH PRESSURE SEAL REPAIR KIT (Includes items 23 - 28) ASSY'S IN KIT 1 BS-201B3699GS
...
CHECK VALVE C/O-RING REPAIR KIT (Includes items 4 & 5) ASSY'S IN KIT 4 BS-202B3699GS
...
CHECK VALVE C/O-RING REPAIR KIT (Includes items 2 & 3) ASSY'S IN KIT 6 BS-203B3699GS
...
OIL SEAL REPAIR KIT (Includes item 20) ASSY'S IN KIT 3 BS-204B3699GS
...
KIT, UNLDR, SRV ASSY'S IN KIT 1 BS-187293GS
...
...
...
