product name

1281-0 Briggs and Stratton Pressure Washer 1,300 PSI w/Cart

Model: 1281-0

Save
 Part Not Listed?Part Not Listed?
product name

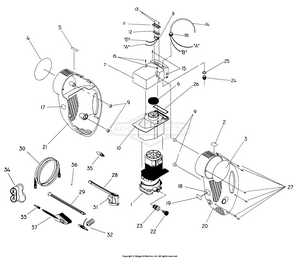

Main Unit

...
...
2
DECAL, BRANCH CRCT BS-B1415GS
...
3
DECAL, Unit BS-A1252
...
4
DECAL, 00777-1 INSTRUCT BS-B2525GS
...
5
DECAL, 1-800 Number BS-20566GS
...
6
FOAM, AIR IN FAN END BS-98806GS
...
7
HOUSING-SWITCH BS-B1650GS
...
8
SWITCH, Rocker 16A BS-20984
...
9
MNT, VIBR, 15DI BS-98801GS
...
10
COVER, Motor BS-B1566
...
11
COUPLER, 1/2" NPT BS-5020985
...
12
PLUG BS-5020986FS
...
13
SCREW BS-84543BGS
...
14
CORD, Power BS-98805
...
15
PLASTITE, #6-19 X .75 BS-84358GS
...
16
RELIEF, STRAIN, CORD BS-99349GS
...
17
DECAL, ETL ELECT P.W. BS-B1053GS
...
18
DECAL, Data BS-B3729
...
19
OVERLAMINATE BS-79552
...
20
HSNG, EPW, GNRC, RED OUTLET BS-21334GS
...
21
BACK PLATE BS-5021335
...
22
QC, PLSTC, GARDEN BS-21265GS
...
23
Garden Hose Quick Connect BS-7175187GS
...
24
NUT, STRN RELIEF, LOCK BS-A1484GS
...
25
SEAL RING, Strain Relief BS-A1485
...
26
O-RING, Housing Seal BS-97835GS
...
27
PLASTITE, #6-19 X 1.0 BS-99350GS
...
28
GUN, Spray BS-21336
...
29
EXTNSN, BAY, BAY BS-21337GS
...
30
HOSE, High Pressure BS-B3337
...
31
DECAL, WARNING, EPW, GUN BS-B1866GS
...
32
FOAMER, W\HANGER HOLE BS-B1935GS
...
33
ADPTR, BAYONET AL-8 BS-B1051GS
...
34
GOGGLES BS-87815GS
...
35
NZZL, TURBO, 1.15, M22, ARL BS-B1300DGS
...
36
ORIFICE BS-B1236DGS
...
37
BRUSH, Utility BS-88185GS

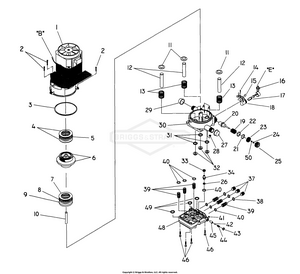

Pump And Motor

...
...
1
ASSY, MOTOR, FELCHAR BS-B1514GS
...
2
SCREW BS-40945GS
...
3
O-RING, Housing Seal BS-97835GS
...
4
WSHR, 35 X 55 X 3 BS-20610GS
...
5
CAGE, THRST, BRNG, NDL BS-97822GS
...
6
ASSY, ELE, CAM/THIN GEAR BS-B2663GS
...
7
WSHR, BRNG, 40X60X1 BS-97826GS
...
8
BRNG, NDL, THRST, 40X60 INA BS-97824AGS
...
9
WSHR, BRNG, 30X60X6 BS-97825GS
...
10
SHAFT, IDLER, AXIALCAM BS-97833GS
...
11
RETAINER, PSTN SPRING BS-97830GS
...
12
PSTN, 15 DIA X 65 LG BS-97832GS
...
13
SPRING, RETURN, PSTN, EG BS-99503GS
...
14
TAPTITE, M4-0.7 X 10 BS-A1495GS
...
15
GROMMET, Rubber BS-21055
...
16
TIE WRAP, 4" Black BS-28739AGS
...
17
SWITCH, MICRO, 21 AMP BS-20138GS
...
18
SHIM BS-5020928
...
19
SPRING, PSTN, PASS BS-B3660GS
...
20
PSTN, UNLDR, PASS BS-B3568GS
...
21
DECAL, Hydro Drive BS-5021126
...
22
O-RING, 25.07 ID 2.62 BS-21125GS
...
23
STOP, PSTN RETURN BS-20217GS
...
24
BALL JOINT, 3/8-24 MA BS-5021124SM
...
25
CAP, RETAINR AUTO SW BS-20218GS
...
26
Close Nipple BS-5021123
...
27
CAP, ADPTR, INLET BS-B1124GS
...
28
O-RING, BYPASS EE BS-97855GS
...
29
CAP, ADPTR, HP BS-97100GS
...
30
HSNG, PSTN BS-B3570GS
...
31
SEAL, Oil Piston BS-93680GS
...
32
SPACER, Pilot BS-97831GS
...
33
SPRING, VLV, CHK BS-97929GS
...
34
VLV, SHUTTLE BS-B3569GS
...
37
CAP, Outlet Port BS-97841GS
...
38
O-RING, Cap BS-97840GS
...
39
ASSY, VLV, CHK, HIGH P BS-B1449GS
...
40
O-RING, VLV, CHCK BS-97934GS
...
41
PLUG, Taper dia. 5.4 BS-76353A
...
42
BALL, 3/16, POPOFF VLV BS-97852GS
...
43
SCREW, SET STEEL BS-B2240GS
...
44
SPRING, VLV, POP-OFF BS-A1130GS
...
45
SEAT, VLV, POP-OFF BS-B1960GS
...
46
Nylon Roller BS-5040946
...
48
HEAD, PUMP, ELEC, MACHD BS-B3571GS
...
49
SEAL, PSTN, U-CUP BS-93667GS
...
50
O-RING, 3.68 X 1.78 BS-B2020GS
...
...
...
