1276-0 Briggs and Stratton Transfer System 30 Amp Power Transfer System

Model: 1276-0

Save
 Part Not Listed?Part Not Listed?
product name

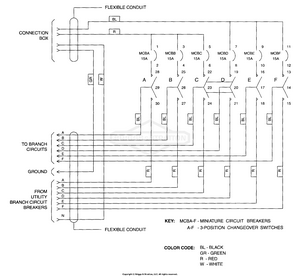

Electrical Data

...

No Parts Available for this Schematic

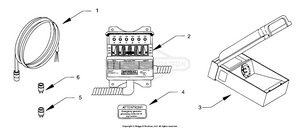

Power Transfer System Components

...
...
1
Connecting Cord Set BS-B3284
...
2
SWITCH, TRNSFR, MNL, TAIWAN BS-97774GS
...
3
Connecting Box BS-B3298
...
4
DECAL, ATTN GEN GRDED BS-B4626GS
...
5
PLUG, 240 20A 4P, TWLK BS-B4208GS
...
6
PLUG, 250V, 30A BS-43438GS

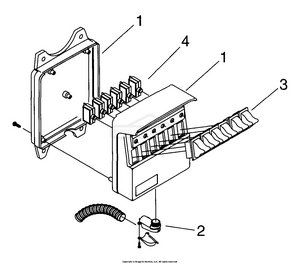

Switch Enclosure

...
...
1
Complete Enclosure, front and back BS-20030
...
2
Connector, 90 degree BS-39271
...
3
SWITCH, ROCKER, DPST BS-98927GS
...
4
BRKR, CRCT, 15A BS-99151GS
...
...
...
