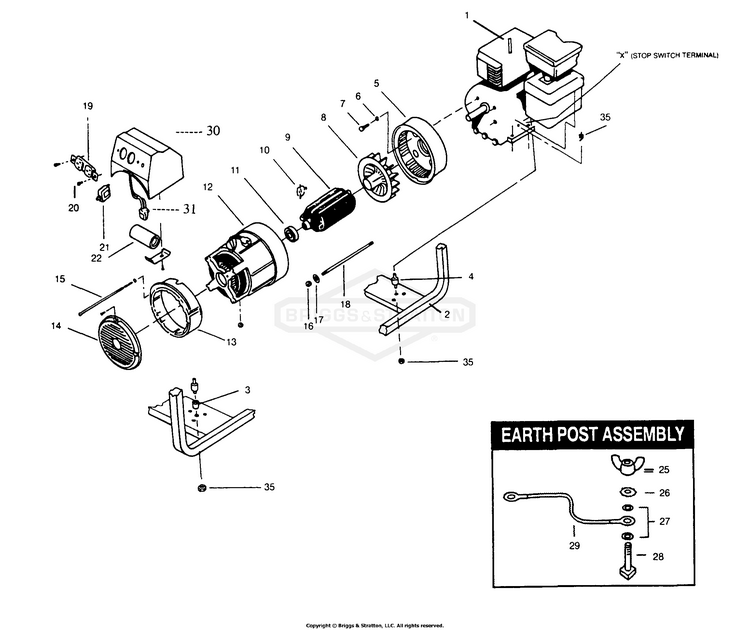

Generator ET2500

...
...
1
Engine Briggs & Stratton 5HP BS-~NSP
...
2
Cradle BS-20409
...
3
Spacer BS-94917A
...
4
MOUNT,Vibration BS-85651GS
...
5
Adaptor flange BS-A1930A
...
6
WASHER, Lock BS-22129GS
...
7
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
8
FAN, RTR BS-20419AGS
...
9
ASSY, RTR, UK BS-B2998AGS
...
10
ASSY, Diode/Varistor BS-A1816GS
...
11
BRNG, RTR BS-A1949AGS
...
12
ASSY, STATOR, UK BS-B2926AGS
...
13
Cowling BS-A1931A
...
14
Grill BS-A1932
...
15
BOLT, STATOR, UK BS-B3964GS
...
16
NUT, NYLOCK, M8-1.25 BS-20316GS
...
18
BOLT, RTR, UK BS-A1928GS
...
19
OUTLET, 120V, 20A, DPLX BS-68758GS
...
21
BREAKER-CIRCUIT 20A BS-209872GS
...
22
16 uF Capacitor BS-A1817
...
23
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
25
SCREW, Wing BS-87680GS
...
26
NUT, M6 BS-49813GS
...
27
WASHER BS-22447GS
...
28
SCREW BS-690664
...
29
LEAD, EARTH, 125MM BS-94876CGS
...
30
HSNG, ALT, UK BS-185910GS
...
31
HRNSS, WIRE, ALT BS-185911GS

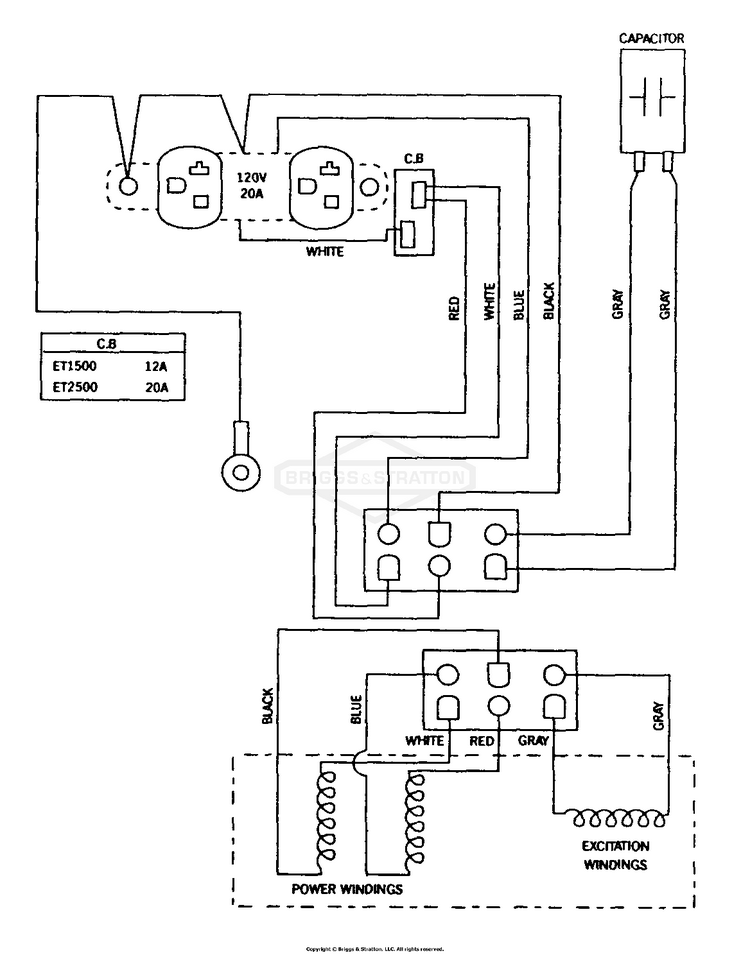

Wiring Diagram

...

No Parts Available for this Schematic

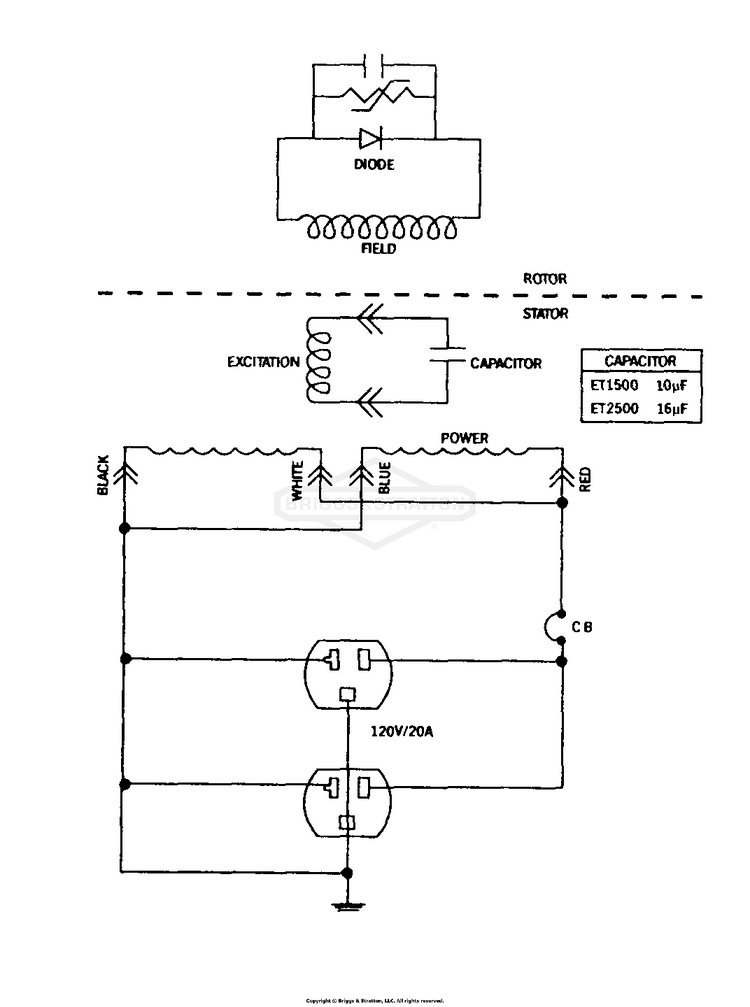

Wiring Schematic

...

No Parts Available for this Schematic

...
...
...
