product name

1195-0 Briggs and Stratton Pressure Washer 1,800 PSI

Model: 1195-0

Save
 Part Not Listed?Part Not Listed?
product name

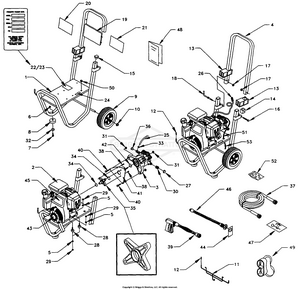

Pressure Washer

...
...
1
BASE, HSPW, PWDR CT, BLK BS-BB2789GS
...
2
ENGINE, Honda 4HP BS-B2537
...
3
PUMP BS-317054GS
...
4
HNDL, PWDR CT, BLK BS-BB2534GS
...
5
WASHER, Lock BS-22129GS
...
6
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
7
HHCS, M8 x 50 BS-51731
...
8
VIBE MOUNT, with Washer BS-191413GS
...
9
TIRE BS-B2142GS
...
10
PUSHNUT BS-194062GS
...
11
HANGER, Hose BS-B2168
...
12
CAP, Vinyl Black BS-B1460GS
...
13
COVER, Hinge BS-B1779GS
...
14
END CAP, Tube BS-B2347GS
...
15
CAP PLUG, Tubing BS-46476GS
...
16
BOLT, Carriage BS-31669GS
...
17
NUT BS-194005GS
...
18
HOOK, Square Neck Gun BS-B2759GS
...
19
BILLBOARD, Plastic BS-B1631AGS
...
20
DECAL, 1800PSI BS-B2812GS
...
21
DECAL, INSTRCTN, START BS-B2796GS
...
22
DECAL, Data BS-88056
...
23
OVER LAMINATE BS-79552
...
24
DECAL, 1-800 Number BS-20566GS
...
25
HOSE, Chemical Inject BS-A1040AGS
...
26
FILTER-CHEM HOSE BS-709496
...
27
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
28
MOUNT, Rubber Shock BS-21217GS
...
29
SKID PLATE BS-5045771B
...
30
TRANSAXLE BS-84010384
...
31
NUT, with Washer BS-B1880GS
...
32
Washer, .34 x 1 x 10 BS-50190GS
...
33
CLAMP, Hose 13/32" BS-48031GGS
...
34
O-RING, Engine Adapter BS-B2218GS
...
35
ADPTR, ENG, HS BS-B2486GS
...
36
CAP, ADPTR, HP BS-97100GS
...
37
HOSE, 1/4"x25' BS-B1969
...
38
HHCS, 5/16-24 X 1 1/4 BS-30209GS
...
39
GUN, High Pressure BS-B1861
...
40
SCREW BS-42909GS
...
41
ADPTR, PUMP, LVRWSH BS-97739GS
...
42
SEAL, Engine Donut BS-98300GS
...
43
DECAL, Recoil BS-B2517
...
44
TAG, Nozzle Instructions BS-97566GS
...
45
DECAL, ENG, 4HP, OVERHD CAM BS-B3094GS
...
46
WAND, HI-LO, 1.20, M22, ARL BS-B1867EGS
...
47
KIT, Nozzle Cleaning BS-B2163
...
48
MANUAL-OPERATOR BS-B2808GS
...
49
GOGGLES BS-87815GS
...
50
GROMMET BS-30809GS
...
51
HOSE, Thermal Drain BS-B3107GS
...
52
KIT, Maintenance BS-B3057
...
53
CLAMP, Hose Band BS-48031BGS

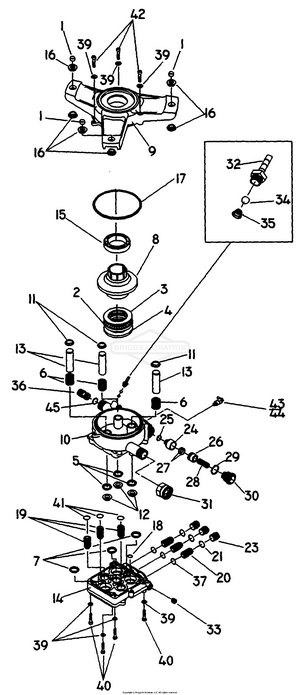

Pump

...
...
1
SLEEVE, Grommet Spacer BS-96795GS
...
2
ASSY, CAGE, BRNG, 45 X 65 BS-21640GS
...
3
WSHR, BRNG, 45X65X1 BS-21641GS
...
4
WASHER, BRG. DIA. 36 x 65 x 6T [SPECIAL] BS-21642
...
5
SEAL, Oil Piston BS-93680GS
...
6
SPRING, RTRN, PSTN, 2300 BS-97828GS
...
7
SEAL, PSTN, U-CUP BS-93667GS
...
8
CAM, AXIAL 5.6mm w/INSERT BS-B2557
...
9
ADAPTER, Engine BS-98227GS
...
10
HSNG, PSTN, PW, MACH BS-20110GS
...
11
RETAINER, PSTN SPRING BS-97830GS
...
12
SPACER, Pilot BS-97831GS
...
13
PSTN, 15 DIA X 65 LG BS-97832GS
...
14
HEAD, CYL, GAS PUMP BS-A1111BGS
...
15
BRNG, BALL, 35X72X17 BS-57018GS
...
16
BUSHING, Rubber Mount BS-21429GS
...
17
O-RING, Housing Seal BS-97835GS
...
18
O-RING, Hi Pressure BS-97837GS
...
19
ASS'Y, CHECK VALVE - INLET BS-97838
...
20
ASSY, VLV, CHK, OUTLET BS-97839GS
...
21
O-RING, Cap BS-97840GS
...
23
CAP, Outlet Port BS-97841GS
...
24
SEAT, UNLOADER BS-97842
...
25
O-RING, 0.364 ID X 0.070, 70 D BS-97843GS
...
26
PISTON, UNLOADER BS-B1253
...
27
SEAL, PARBAK UNLDR BS-97845GS
...
28
SPRING, UNLOADER BS-A2731
...
29
O-RING, UNLDR CAP BS-97847GS
...
30
CAP, UNLDR, PLASTIC BS-A2730GS
...
31
TRANSAXLE BS-84010384
...
32
FTG, EE/EG CHEM INJ BS-A1575GS
...
33
PLUG, 1/8" - 27 [WITH SEALANT] BS-96137GS
...
34
BALL, DIA. 5.5 CHEMICAL INJECTOR BS-95379
...
35
SPRING, INJ, CHEM BS-95380GS
...
36
VENTURI, CHEMICAL INJECTOR BS-20631
...
37
O-RING, VLV, CHCK BS-97934GS
...
39
LOCK WASHER, M6 RIBBED BS-93873
...
40
Nylon Roller BS-5040946
...
41
O-RING, PISTN HOUSNG BS-97851GS
...
42
CAPSCREW, Socket Head BS-97962GS
...
43
VALVE, Thermal Relief BS-208673GS
...
44
BUSHING, .75 X 1.00 X BS-5023344SM
...
45
O-RING, VENTURI BS-B1077GS
...
...
...
