1174-0 Briggs and Stratton Portable Generator 2,000 Watt AC

Model: 1174-0

Save
 Part Not Listed?Part Not Listed?
product name

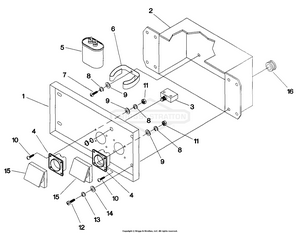

Control Panel

...
...
1
PNL, CNTRL, 01174 BS-B3462GS
...
2
BOX, Control Panel BS-B3463
...
3
BREAKER, Circuit BS-75207DGS
...
4
OUTLET, 250V 16A Berker BS-82528
...
5
CAPACITOR, 12.5 MFD BS-99887GS
...
6
CLIP, Spring BS-B2427C
...
7
PHMS, M4 - 0.7 x 10 BS-75475
...
8
LOCKWASHER, M4 BS-22264
...
9
Thumb Control Lever BS-5043180B
...
10
PPHMS, M4-0.7 x 16 BS-75476GS
...
11
NUT, M4-0.7 Hex BS-51715GS
...
12
PHMS, M5 - 0.8 x 12 BS-91526
...
13
WASHER, M5 Lock BS-49226GS
...
14
WASHER, #10 M5 Flat BS-23897GS
...
15
CVR, HINGED, BRKR BS-79782GS
...
16
GROMMET, Rubber BS-96021

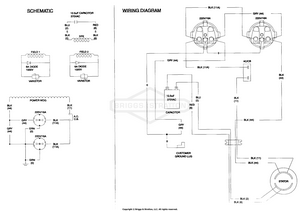

Electrical Data

...

No Parts Available for this Schematic

Generator

...
...
1
HANDLE BS-BB2795
...
2
DECAL, GRD LUG BS-67210AGS
...
3
ASSEMBLY, Welded Leg BS-BB2827
...
4
ENGINE, 5.5 h.p. - VS Briggs BS-B1936
...
5
PLATE, Base BS-B99684
...
6
ASSY, RTR, 220V BS-B3846JGS
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-96796GS
...
9
BOLT, 5/16-24 X 5.00 BS-99849GS
...
10
ASSY, STATOR, 2000DPE55 BS-B3472JGS
...
11
PNL, CNTRL, KOREA BS-B3484GS
...
12
SCREW, Wing BS-87680GS
...
14
PLATE, RBC End Stator BS-B99686
...
15
NUT, M6 BS-49813GS
...
16
BOLT BS-66449LGS
...
17
COVER, Bearing BS-99850
...
18
DECAL, DATA, GNRC GEN BS-78817GS
...
19
PUSHNUT BS-194062GS
...
20
TIRE, Black Mag BS-21206GS
...
21
SCREW BS-313085GS
...
22
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
23
MOUNT, Rubber Donut BS-87841GS
...
24
HHCS, M8 - 1.25 x 35 BS-39414GS
...
25
CARRIAGE BOLT BS-B3085GS
...
26
CAP, End BS-B2790GS
...
27
COVER, Hinge BS-B2791GS
...
28
NUT BS-194005GS
...
29
HLDR, EXTNSN CORD BS-B3044GS
...
30
CAP, Plug BS-81895GS
...
31
DECAL, SHROUD, ENG BS-B1905GS
...
32
SCREW BS-40945GS
...
33
NUT, FLANGE LOCK - M6 BS-77395GS
...
34
WASHER, Lock BS-22129GS
...
35
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
36
WLDMNT, AXLE, VSPW BS-97741GS
...
...
...
