1173-1 Briggs and Stratton Pressure Washer 2,700 PSI

Model: 1173-1

Save
 Part Not Listed?Part Not Listed?
product name

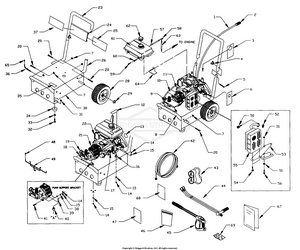

Pressure Washer

...
...
1
HOSE-CHEMICAL BS-705076
...
2
FILTER-CHEM HOSE BS-709496
...
3
TAG, FILL, OIL, CSA, ENG/FRCH (English/French) BS-94481GS
...
4
KNOB, Handle BS-97178GS
...
5
BOLT, Carriage BS-31669GS
...
6
TAG, INSTRCTN, START, FRENCH (English/French) BS-B1210BGS
...
7
NUT, Lock BS-99583GS
...
8
BUMPER BS-B1982GS
...
9
TAG, HANG, PRES ADJ (English/French) BS-98944GS
...
10
TAG, Breather (Tri-Lingual) BS-B1288GS
...
11
CLAMP, Hose BS-B1232GS
...
12
DECAL, DANGER, FRENCH (French) BS-96686GS
...
13
DECAL, Recoil BS-91682B
...
14
SKID PLATE BS-5045771B
...
15
WASHER, Lock BS-22129GS
...
16
MOUNT, Rubber Shock BS-21217GS
...
17
QT., Liquid Neoprene BS-~NSP
...
18
CAP, ADPTR, HP BS-97100GS
...
19
CAP, GRDN HOSE, INLET BS-97098GS
...
20
BOLT, Carriage BS-B2043GS
...
22
ENGINE, ENGB2219 BS-~NSP
...
23
HANDLE BS-B1983GS
...
24
BILLBOARD, Plastic BS-B1631AGS
...
25
DECAL, Instructions BS-B2772
...
26
SUPPORT, Handle BS-CB1981GS
...
27
DECAL, BASE, PW BS-B2192GS
...
28
WHL, 3.00 X 10.00, S-PNEU, 1/2 BS-B1760GS
...
29
PUSHNUT BS-194062GS
...
30
BASE BS-AB1770
...
31
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
32
SCREW BS-42909GS
...
33
Washer, .34 x 1 x 10 BS-50190GS
...
34
VIBE MOUNT, with Washer BS-191413GS
...
35
DECAL, 1-800 Number BS-20566GS
...
36
HOOK, Gun BS-B2150GS
...
37
DECAL, 2700PSI BS-B1990GS
...
38
NUT-M6 FLANGE BS-52857GS
...
39
BRACKET, Pump Support BS-20707
...
40
RIM, WHEEL BS-84010093
...
41
SCREW BS-38750GS
...
42
HOSE, High Pressure BS-91630
...
43
GOGGLES BS-87815GS
...
44
WAND, DUAL, FIXED 1.10, 150 BS-B2140CGS
...
45
KIT, GUN/CONN, RPLCMNT BS-189533GS
...
46
KIT, Hardware, Handle BS-B2203GS
...
47
KIT, Maintenance, O-Ring BS-191922GS
...
48
CAP, Vinyl Black BS-B1460GS
...
49
HANGER, Hose, Gun, Jug BS-B2168
...
50
SHCS, M8 1.25 x 20 BS-40976
...
52
GASKET, Exhaust BS-89476GS
...
53
BRACKET, Muffler BS-83208GS
...
54
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
55
MUFFLER BS-83071GS
...
56
HHCS, M8 - 1.25 x 35 BS-39414GS
...
57
CLAMP, Hose BS-48031C
...
58
VALVE-FUEL SHUT OFF BS-698180
...
59
BOLT, M6 - 1.0 x 21 Lg. Shoulder BS-96001
...
60
BSHNG, TANK BS-96002GS
...
61
TANK, FUEL, 1 GAL, PLAIN BS-94994GS
...
62
CAP, FUEL, THREAD VENT BS-95549GS
...
63
HOSE, Fuel - 1/4" I.D. BS-30340
...
64
SWITCH, ELECTRIC CLUT BS-5021545SM
...
65
CAP, Vinyl, Black BS-B2516GS
...
66
NUT, Hex Locking Flange M8 BS-67989GS
...
67
MANUAL-OPERATOR (English/French) BS-B3258GS
...
68
SHEET, Nozzle Cleaning (French) BS-B3064
...
69
KIT, O-Ring BS-B3062

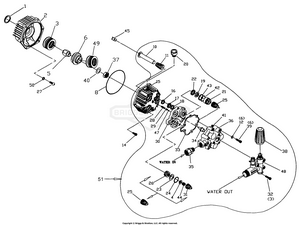

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
4
POPPET, VLV, CHCK BS-97215GS
...
5
ADPTR, ENG SHFT, TAPER BS-95165GS
...
6
CAM, MED, 7.5, 5.5, MACH BS-21277VGS
...
8
O-RING, Crankcase BS-93790GS
...
10
ASSY, Ceramic Piston & Cap BS-99427GS
...
11
SPRING, Piston Return BS-96400GS
...
12
WASHER, Steel Special BS-B2665GS
...
14
SCREW BS-40945GS
...
15
HSNG, PSTN BS-97568AGS
...
16
SEAL, Oil Piston BS-93680GS
...
17
SPACER, PILOT BS-93668GS
...
18
SEAL, PSTN, U-CUP BS-93667GS
...
19
RING, Bearing BS-96015GS
...
20
BREATHER BS-99735GS
...
21
TOWER, HI-PRESS PORT, SS BS-97027GS
...
22
SEAL, High Pressure BS-96053GS
...
23
RING, BACKUP, HYTRILE BS-95504GS
...
24
O-RING, 0.67 X 0.88 X 0.10 BS-95503GS
...
25
ASSY, VLV, CHK BS-97128GS
...
26
SPPRT, VLV, CHK, SS SEAT BS-97028GS
...
27
BUTTON HEAD, 5/16-24 x 1" BS-B2261A
...
28
SPRING, Thermal By-Pass BS-93652GS
...
29
PISTON, Thermal By-Pass BS-95416GS
...
30
PLATE, SPACER, IMPREG PLN BS-97122PGS
...
31
GUIDE, VLV, CHK POPPET, PLSTC BS-89137GS
...
32
SHCS, M6-1.0 X 45 BS-46580GS
...
33
GSKT, HD, GPW BS-B2668GS
...
34
ACTUATOR, Thermal By-Pass BS-93644GS
...
35
Conn, Gdn Hse BS-95320GS
...
36
HEAD, Cylinder BS-95138
...
37
NUT, Jam BS-93887
...
38
KNOB, PRSSR ADJ, LG (Replacement Part Only) BS-B1339GS
...
39
SCREW BS-690346
...
40
WSHR, BELV, 16 X 2.7 BS-94738GS
...
41
PLUG, 1/8" - 27 BS-96137GS
...
42
O-RING, 26.6 ID X 2.6 BS-96069GS
...
43
RING, BACKUP, HYTRILE BS-95506GS
...
44
SPRING, VLV, CHK BS-89138GS
...
45
SHOE, Piston Pivot BS-94944GS
...
47
SCREW BS-690312
...
48
3 Bolt Flange BS-5021746
...
49
ASSY, THRST, BRNG, NDL BS-97606GS
...
50
O-RING, Engine Adapter Bolt BS-B2217GS
...
51
PUMP HEAD ASSY BS-B3182A
...
...
...
