product name

1172-0 Briggs and Stratton Pressure Washer 2,250 PSI

Model: 1172-0

Save
 Part Not Listed?Part Not Listed?
product name

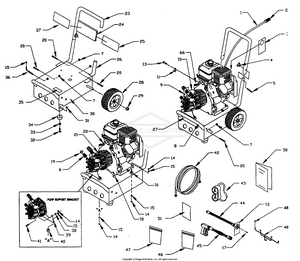

Pressure Washer

...
...
1
HOSE-CHEMICAL BS-705076
...
2
FILTER-CHEM HOSE BS-709496
...
3
TAG, FILL, OIL, CSA, ENG/FRCH (English/French) BS-94481GS
...
4
KNOB, Handle BS-97178GS
...
5
BOLT, Carriage BS-31669GS
...
6
TRANSAXLE BS-84010384
...
7
NUT, Lock BS-99583GS
...
8
BUMPER BS-B1982GS
...
9
TAG, HANG, PRES ADJ (English/French) BS-98944GS
...
10
TAG, Breather (Tr-Lingual) BS-B1288GS
...
11
CLAMP, Hose 7/16" Dia. BS-B2718
...
12
TAG, INSTRCTN, NZZL, FRENCH BS-98904GS
...
13
TAPTITE, #10-32 X 5/8 BS-32713GS
...
14
SKID PLATE BS-5045771B
...
15
WASHER, Lock BS-22129GS
...
16
MOUNT, Rubber Shock BS-21217GS
...
17
NZZL, 1.25, ARL BS-B1236FGS
...
18
CAP, ADPTR, HP BS-97100GS
...
19
CAP, GRDN HOSE, INLET BS-97098GS
...
20
BOLT, Carriage BS-B2043GS
...
21
PUMP BS-317054GS
...
22
ENGINE BS-B1827
...
23
HANDLE BS-B1983GS
...
24
BILLBOARD, Plastic BS-B1631AGS
...
25
DECAL Instructions BS-B2772
...
26
SUPPORT, Handle BS-CB1981GS
...
27
DECAL, BASE, PW BS-B2192GS
...
28
WHL, 3.00 X 10.00, S-PNEU, 1/2 BS-B1760GS
...
29
PUSHNUT BS-194062GS
...
30
BASE BS-AB1770
...
31
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
32
SCREW BS-42909GS
...
33
Washer, .34 x 1 x 10 BS-50190GS
...
34
VIBE MOUNT, with Washer BS-191413GS
...
35
DECAL, 1-800 Number (English) BS-20566GS
...
36
HOOK, Gun BS-B2150GS
...
37
DECAL, LOGO, 01042-1 BS-B2146GS
...
38
NUT-M6 FLANGE BS-52857GS
...
39
BRACKET, Pump Support BS-20707
...
40
RIM, WHEEL BS-84010093
...
41
SCREW BS-38750GS
...
42
HOSE, High Pressure BS-B1969
...
43
GOGGLES BS-87815GS
...
44
WAND, HI-LO, 1.25, M22, ARL BS-B1867FGS
...
45
GUN, High Pressure BS-B1861
...
46
KIT, Hardware, Handle BS-B2203GS
...
47
KIT, Cleaning BS-B2163
...
48
CAP, Vinyl Black (Black) BS-B1460GS
...
49
HANGER, Hose, Gun, Jug BS-B2168
...
50
MANUAL-OPERATOR BS-B2775GS
...
51
SHEET, INSTRCTN, KIT, CLNNG, FR (French) BS-98906GS
...
65
CAP, Vinyl, Black (Black) BS-B2516GS
...
66
PLATE, SPACER, ENG D.1.62 (Not shown) BS-95441GS

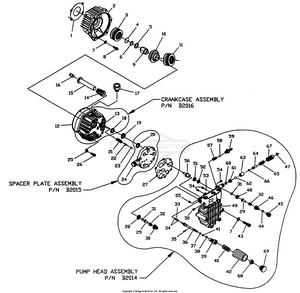

Pump

...
...
1
GSKT, ADPTR, ENG BS-93871GS
...
2
ADPTR, ENG, MCHND BS-96430AGS
...
3
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
4
C-RING, 40.8 ID X 2.16 DIA BS-97675GS
...
5
WSHR, THRUST BS-97570GS
...
6
RETAINER, PUSH ON BS-95524GS
...
7
WASHER, Lock BS-92479GS
...
8
SCREW BS-95531GS
...
9
ADPTR, 3/4 SHAFT, HEX BS-95435GS
...
10
CAM, MED, 7.5, 5.5, MACH BS-21277VGS
...
11
ASSY, THRST, BRNG, NDL BS-97606GS
...
12
O-RING, Crankcase BS-93790GS
...
13
HSNG, PSTN BS-97568AGS
...
14
SPRING, Piston Return BS-96400GS
...
15
ASSY, Ceramic Piston & Cap BS-99427GS
...
16
SHOE, Piston Pivot BS-94944GS
...
17
BREATHER BS-99735GS
...
18
SEAL, Oil Piston BS-93680GS
...
19
SPACER, PILOT BS-93668GS
...
20
SEAL, PSTN, U-CUP BS-93667GS
...
21
SPRING, Thermal By-Pass BS-93652GS
...
22
PISTON, Thermal By-Pass BS-95416GS
...
23
SCREW BS-690312
...
24
SPACER PLATE, Inlet BS-A1320GS
...
25
LOCKWASHER, M6 Ribbed BS-93873
...
26
SCREW BS-40945GS
...
27
GASKET, Head BS-A2069GS
...
28
SEAT, CHK VLV, INLET , SS BS-A2062GS
...
29
POPPET, VLV, CHCK BS-A2060GS
...
30
CAGE, VLV, CHK, INLET BS-97931GS
...
31
O-RING, VLV, CHCK BS-97934GS
...
32
SPRING, VLV, CHK BS-97929GS
...
33
O-RING, 0.364 ID X 0.070, 70 D BS-97843GS
...
34
RING, BACKUP, 9.6X12.65X1.35 BS-A2017GS
...
35
PIN, ROLL, 5/64 X 11/16 BS-A1719GS
...
36
KIT, Unloader Spindle BS-B3479GS
...
37
STUD BS-691120
...
38
O-RING, 14.0 ID X 1.78CS BS-A3829GS
...
39
KIT, Unloader Spindle BS-B3479GS
...
40
SPRING, UNLDR, FLT HD BS-A1716GS
...
41
KIT, Unloader Spindle BS-B3479GS
...
42
KIT, Unloader Spindle BS-B3479GS
...
43
BOLT BS-A2013GS
...
44
O-RING, Cap BS-97840GS
...
45
CAP, Outlet Port BS-97841GS
...
46
CAGE, VLV, CHK, HI PRSSR BS-20002GS
...
47
O-RING, 10.82 X 1.78CS BS-A3805GS
...
48
SEAT, Check Valve Outlet BS-A2217
...
49
CYLINDER, Head BS-A1318
...
50
SCREW, SCBTNHDM8-1.25X8 BS-B1758GS
...
51
SEAL, High Pressure BS-96053GS
...
52
RING, Bearing BS-96015GS
...
53
MAGNET, DFLCTR, BALL BS-A1717GS
...
54
SCREW, SCBTNHD M6-1X8 BS-B1757GS
...
55
SCREW, SET, M8-1.25 X 8 BS-A1718GS
...
56
ACTUATOR, Thermal By-Pass BS-93644GS
...
57
SPRING, INJ, CHEM BS-95380GS
...
58
BALL, 5.5 dia. Chemical Injector BS-95379
...
59
FTG, EE/EG CHEM INJ BS-A1575GS
...
60
O-RING, BYPASS EE BS-97855GS
...
61
SEAT BS-B2152GS
...
62
BALL, 9/32, 440C SS BS-A2015GS
...
63
SEAT, SHUTTLE BS-A2503GS
...
64
VALVE-CHECK BS-B1879GS
...
65
SPRING, VLV, CHK BS-89138GS
...
66
Close Nipple BS-5021123
...
67
VENTURI BS-B2151GS
...
68
NUT, M6-1, LOCK, W/ NYL BS-B2236GS
...
69
PLUG, RND, PLSTC BS-B2241GS
...
...
...
