1040-2 Briggs and Stratton Pressure Washer 2,000 PSI

Model: 1040-2

Save
 Part Not Listed?Part Not Listed?
product name

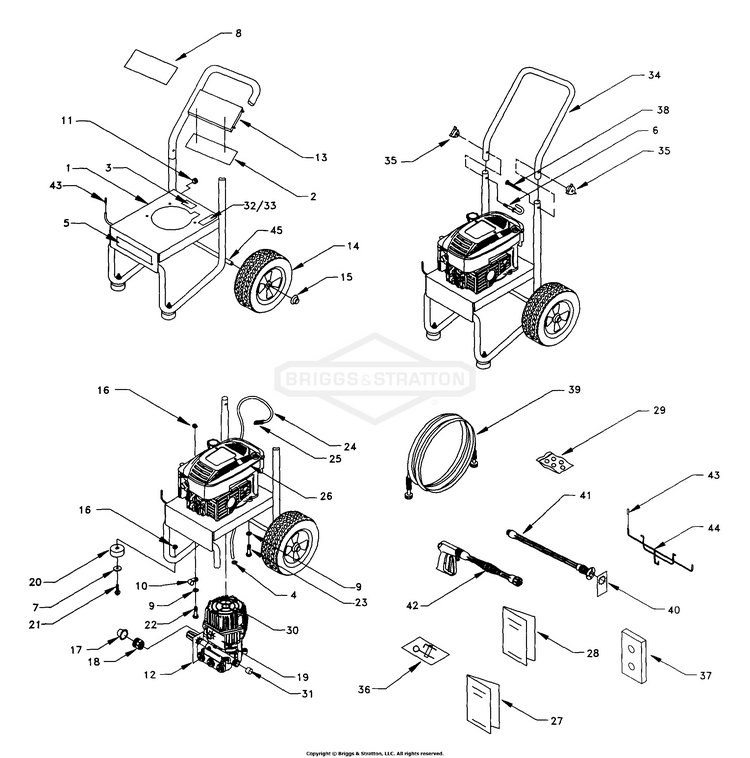

Main Unit

...
...
1
BASE, VSPW, PWDR CT, RED BS-AB2058GS
...
2
DECAL, Instructions BS-B1932GS
...
3
DECAL, 1-800 Number BS-20566GS
...
4
CLAMP, Hose 13/32" BS-48031GGS
...
5
DECAL, BASE, PW BS-B2192GS
...
6
HANDLE MOUNT BRACKET BS-5800101
...
7
Washer, .34 x 1 x 10 BS-50190GS
...
8
DECAL, 2000PSI BS-B2060GS
...
10
CLAMP, Hose BS-B1232GS
...
11
GROMMET BS-30809GS
...
12
TAG, Pressure Adjust BS-97054
...
13
BILLBOARD, Plastic BS-B1631BGS
...
14
WHL, 3.00 X 10.00, S-PNEU, 1/2 BS-B1760GS
...
15
PUSHNUT BS-194062GS
...
16
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
17
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
18
TRANSAXLE BS-84010384
...
19
TAG, Breather BS-B1288GS
...
20
VIBE MOUNT, with Washer BS-191413GS
...
21
HHCS, M8-1.25 X 45 GR10.9 BS-B1214GS
...
22
HHCS, M8 - 1.25 x 35 BS-39414GS
...
23
HHCS, M8-1.25 X 65 BS-52265GS
...
24
HOSE, CHEM, 5 FT, CLR BS-A1040CGS
...
25
FILTER-CHEM HOSE BS-709496
...
26
ENGINE, B & S 6HP, #12H812-2-681-E1, Spec B2216A BS-~NSP
...
27
MANUAL, Operator's BS-380567TRI
...
28
MANUAL-OPERATOR BS-B3408GS
...
29
KIT, O-Ring Maintenance BS-B3057
...
30
REPLACEMENT PUMP ASSEMBLY (Must also order 208673GS Thermal Relief Valve) BS-193461GS
...
30
VALVE, Relief, Thermal BS-208673GS
...
31
CAP, ADPTR, HP BS-97100GS
...
32
DECAL, Data BS-88056
...
33
OVERLAMINATE BS-79552
...
34
HANDLE BS-AB1945GS
...
35
KNOB, Handle BS-97178GS
...
36
KIT, Nozzle Cleaning BS-B2163
...
37
VIDEO, 98GRC VSPW CHM BS-B2430GS
...
38
BOLT, Carriage BS-31669GS
...
39
HOSE, 1/4" X 25' BS-B1969
...
40
TAG, Nozzle Instructions BS-97566GS
...
41
WAND, HI-LO, 1.20, M22, ARL BS-B1867EGS
...
42
GUN BS-704312
...
43
CAP, Vinyl Black BS-B1460GS
...
44
WIREFORM BS-B1953AGS

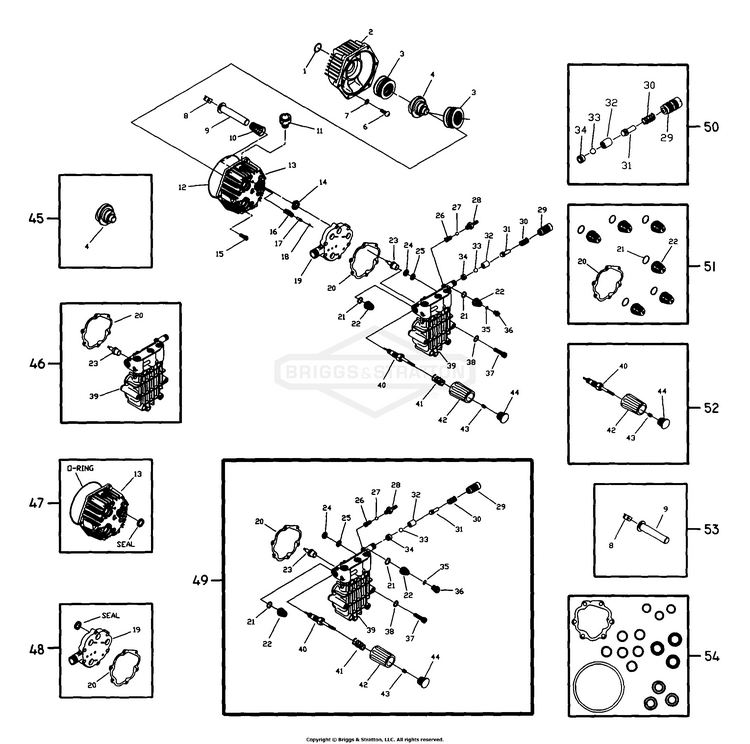

Pump

...
...
1
O-RING, 1.62 ID X 0.12W BS-B3287GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
4
ASSY, CAM, 7/8, 6.0 LIFT BS-B3329GS
...
6
SCREW BS-B2261BGS
...
7
O-RING, Engine Adapter Bolt BS-B2217GS
...
8
SHOE, Piston Pivot BS-94944GS
...
9
ASSY, Ceramic Piston & Cap BS-99427GS
...
10
SPRING, Piston Return BS-96400GS
...
11
BREATHER BS-99735GS
...
12
O-RING, Crankcase BS-93790GS
...
13
ASSY, CRNKCS BS-B2016GS
...
14
SPACER, PILOT BS-93668GS
...
15
SCREW BS-40945GS
...
16
SPRING, Thermal By-Pass BS-93652GS
...
17
PISTON, Thermal By-Pass BS-95416GS
...
18
SCREW BS-690312
...
19
ASSY, PLATE, SPACER, SRV BS-B3509GS
...
20
GASKET, Head BS-A2069GS
...
21
O-RING, VLV, CHCK BS-97934GS
...
22
ASSY, VLV, CHK, HIGH P BS-B1449GS
...
23
ACTUATOR, Thermal By-Pass BS-93644GS
...
24
SEAL, High Pressure BS-96053GS
...
25
RING, Bearing BS-96015GS
...
26
SPRING, INJ, CHEM BS-95380GS
...
27
BALL, 5.5 dia. Chemical Injector BS-95379
...
28
FTG, EE/EG CHEM INJ BS-A1575GS
...
29
VENTURI BS-B2151GS
...
30
SPRING, VLV, CHK BS-89138GS
...
31
VALVE-CHECK BS-B1879GS
...
32
SEAT, SHUTTLE BS-A2503GS
...
33
BALL, 9/32, 440C SS BS-A2015GS
...
34
SEAT BS-B2152GS
...
35
O-RING, Cap BS-97840GS
...
36
CAP, Outlet Port BS-97841GS
...
37
BOLT BS-A2013GS
...
38
WASHER, Steel Special BS-B2665GS
...
39
HEAD ASSEMBLY BS-B3148
...
40
UNLOADER SPINDLE ASSEMBLY BS-B3185
...
41
SPRING, UNLDR, FLT HD BS-A1716GS
...
42
KNOB, PRSSR ADJ BS-B3117GS
...
43
SCREW, SET, M6 X 8 LG BS-A2014GS
...
44
PLUG, RND, PLSTC BS-B2241GS
...
45
CAM ASSEMBLY, 6.0 LIFT (Service Kit) BS-B3519
...
46
HEAD ASSEMBLY (Service Kit) BS-B3507
...
47
ASSY, CRNKCS, SRV (Service Kit) BS-B3508GS
...
48
ASSY, PLATE, SPACER, SRV (Service Kit) BS-B3509GS
...
49
COMPLETE HEAD ASSEMBLY (Service Kit) BS-B3480
...
50
KIT, High Pressure Outlet (Service Kit) BS-B3510GS
...
51
KIT, CHECK VALVES (Service Kit) BS-B3513GS
...
52
KIT, Unloader Spindle (Service Kit) BS-B3479GS
...
53
ASSY, PSTN, SNGL SRV (Service Kit) BS-B3478GS
...
54
KIT, O-RING, SEALS, SRV (Service Kit) BS-B3514GS
...
...
...
