1038-0 Briggs and Stratton Pressure Washer 1,750 PSI

Model: 1038-0

Save
 Part Not Listed?Part Not Listed?
product name

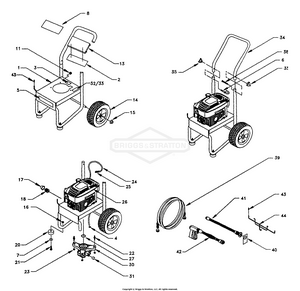

Pressure Washer

...
...
1
BASE, VSPW, PWDR CT, RED BS-AB2058GS
...
2
DECAL, Instructions BS-B1932GS
...
3
DECAL, 1-800 Number BS-20566GS
...
4
CLAMP, Hose 13/32" BS-48031GGS
...
5
DECAL, BASE, PW BS-B2192GS
...
6
HANDLE MOUNT BRACKET BS-5800101
...
7
Washer, .34 x 1 x 10 BS-50190GS
...
8
DECAL, Logo 1750 PSI BS-B2037
...
11
GROMMET BS-30809GS
...
13
BILLBOARD, Plastic BS-B1631BGS
...
14
WHL, 3.00 X 10.00, S-PNEU, 1/2 BS-B1760GS
...
15
PUSHNUT BS-194062GS
...
16
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
17
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
18
TRANSAXLE BS-84010384
...
20
VIBE MOUNT, with Washer BS-191413GS
...
21
HHCS, M8-1.25 X 45 GR10.9 BS-B1214GS
...
22
STUD, Double Ended BS-B1735GS
...
23
NUT, with Washer BS-B1880GS
...
24
HOSE, CHEM, 5 FT, CLR BS-A1040CGS
...
25
FILTER-CHEM HOSE BS-709496
...
26
ENGINE, Briggs & Stratton 5HP Quantum BS-B2222
...
27
SEAL, Engine Donut BS-98300GS
...
30
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
31
CAP, ADPTR, HP BS-97100GS
...
32
DECAL, Data BS-88056
...
33
OVERLAMINATE BS-79552
...
34
HANDLE BS-AB1945GS
...
35
KNOB, Handle BS-97178GS
...
38
BOLT, Carriage BS-31669GS
...
39
HOSE, 1/4" X 25' BS-B1969
...
40
TAG, Nozzle Instructions BS-97566GS
...
41
WAND, HI-LO, 1.25, M22, ARL BS-B1867FGS
...
42
GUN, High Pressure BS-B1861
...
43
CAP, Vinyl Black BS-B1460GS
...
44
WIREFORM BS-B1953

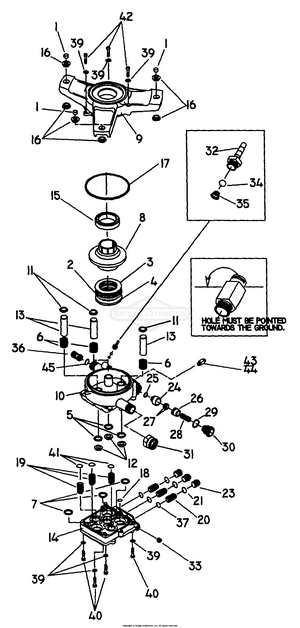

Pump

...
...
1
SLEEVE, Grommet Spacer BS-96795GS
...
2
ASSY, CAGE, BRNG, 45 X 65 BS-21640GS
...
3
WSHR, BRNG, 45X65X1 BS-21641GS
...
4
WASHER, BRG. DIA. 36 x 65 x 6T [SPECIAL] BS-21642
...
5
SEAL, Oil Piston BS-93680GS
...
6
SPRING, RTRN, PSTN, 2300 BS-97828GS
...
7
SEAL, PSTN, U-CUP BS-93667GS
...
8
CAM, SML, 7/8, 5.6, CAST, 2000 BS-98304GS
...
9
ADAPTER, Engine BS-98227GS
...
10
HSNG, PSTN, PW, MACH BS-20110GS
...
11
RETAINER, PSTN SPRING BS-97830GS
...
12
SPACER, Pilot BS-97831GS
...
13
PSTN, 15 DIA X 65 LG BS-97832GS
...
14
HEAD, CYL, GAS PUMP BS-A1111BGS
...
15
BRNG, BALL, 35X72X17 BS-57018GS
...
16
BUSHING, Rubber Mount BS-21429GS
...
17
O-RING, Housing Seal BS-97835GS
...
18
O-RING, Hi Pressure BS-97837GS
...
19
ASS'Y, CHECK VALVE - INLET BS-97838
...
20
ASSY, VLV, CHK, OUTLET BS-97839GS
...
21
O-RING, Cap BS-97840GS
...
23
CAP, Outlet Port BS-97841GS
...
24
SEAT, UNLOADER BS-97842
...
25
O-RING, 0.364 ID X 0.070, 70 D BS-97843GS
...
26
PISTON, UNLOADER BS-B1253
...
27
SEAL, PARBAK UNLDR BS-97845GS
...
28
SPRING, UNLOADER BS-A2731
...
29
O-RING, UNLDR CAP BS-97847GS
...
30
CAP, UNLDR, PLASTIC BS-A2730GS
...
31
TRANSAXLE BS-84010384
...
32
FTG, EE/EG CHEM INJ BS-A1575GS
...
33
PLUG, 1/8" - 27 BS-96137GS
...
34
BALL, DIA. 5.5 CHEMICAL INJECTOR BS-95379
...
35
SPRING, INJ, CHEM BS-95380GS
...
36
VENTURI, CHEMICAL INJECTOR BS-20631
...
37
O-RING, VLV, CHCK BS-97934GS
...
39
LOCK WASHER, M6 RIBBED BS-93873
...
40
Nylon Roller BS-5040946
...
41
O-RING, PISTN HOUSNG BS-97851GS
...
42
CAPSCREW, Socket Head BS-97962GS
...
43
VALVE, Thermal Relief BS-208673GS
...
44
BUSHING, .75 X 1.00 X BS-5023344SM
...
45
O-RING, VENTURI BS-B1077GS
...
...
...
