product name

1037-1 Briggs and Stratton Pressure Washer 1,650 PSI

Model: 1037-1

Save
 Part Not Listed?Part Not Listed?
product name

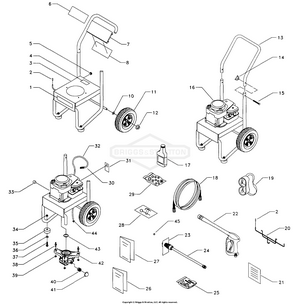

Pressure Washer

...
...
1
DECAL, BASE, PW BS-B2192GS
...
2
CAP, Vinyl Black BS-B1460GS
...
3
BASE, VSPW, PWDR CT, RED BS-AB1939GS
...
4
DECAL, 1-800 Number BS-20566GS
...
5
GROMMET BS-30809GS
...
6
DECAL, [email protected] BS-B4256GS
...
7
BILLBOARD, Plastic BS-B1631BGS
...
8
DECAL, Instructions BS-B1932GS
...
10
WASHER, Flat BS-49808GS
...
11
TIRE BS-B2142GS
...
12
PUSHNUT BS-194062GS
...
13
HANDLE BS-AB1945GS
...
14
KNOB, Handle BS-97178GS
...
15
BOLT, Carriage BS-31669GS
...
16
ENGINE, 4HP BS-~NSP
...
17
BOTTLE, Oil BS-100005
...
18
HOSE, 1/4" X 25' BS-B3607
...
19
GOGGLES BS-87815GS
...
20
WIREFORM BS-B1953
...
21
CARD, Owners Registration BS-88681
...
22
GUN BS-704312
...
23
TAG, Nozzle Instructions BS-97566GS
...
24
WAND, Adjustable Nozzle BS-188792AGS
...
25
KIT, Hardware, Handle BS-B2203GS
...
26
UPPER DOOR MEMBER BS-5800104
...
27
MANUAL-OPERATOR BS-B4254GS
...
28
KIT, Nozzle Cleaning BS-B2163
...
29
KIT, O-Ring Maintenance BS-B3057
...
30
FILTER-CHEM HOSE BS-709496
...
31
TAG BS-B1210AGS
...
32
HOSE-CHEMICAL BS-705076
...
33
CAP, ADPTR, HP BS-97100GS
...
34
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
35
VIBE MOUNT, with Washer BS-191413GS
...
36
Washer, .34 x 1 x 10 BS-50190GS
...
37
HHCS, M8-1.25 X 45 GR10.9 BS-B1214GS
...
38
STUD, Double Ended BS-B1735GS
...
39
NUT, with Washer BS-B1880GS
...
40
TRANSAXLE BS-84010384
...
41
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
42
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
43
SEAL, Engine Donut BS-98300GS
...
44
CLAMP, Hose 13/32" BS-48031GGS
...
45
NOZZLE, Replacement BS-94804GS

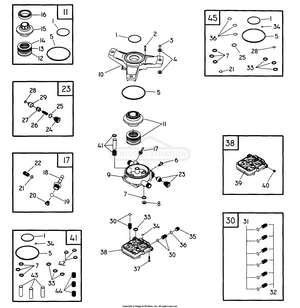

Pump

...
...
1
SEAL, Engine Donut BS-98300GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
SLEEVE, Grommet Spacer BS-96795GS
...
4
BUSHING, Rubber Mount BS-21429GS
...
5
O-RING, Housing Seal BS-97835GS
...
6
VALVE, Thermal Relief BS-208673GS
...
7
SEAL, Oil Piston BS-93680GS
...
8
SPACER, Pilot BS-97831GS
...
9
HOUSING, Piston BS-B2702GS
...
10
ADAPTER, Engine BS-98227GS
...
11
KIT, AXIAL CAM SERV (Service Kit Includes the Following Items; 1, 5, 12-16) BS-B2310GS
...
17
KIT, CHEM INJ, SRV (Service Kit Includes the Following Items; 18-22) BS-B3829GS
...
23
KIT, UNLOADER (Service Kit Includes the Following Items; 24-29) BS-B3828
...
30
KIT, CHECK VALVES (Service Kit Includes the Following Items; 31 & 32) BS-B3513GS
...
33
SEAL, Oil Piston BS-B3286GS
...
34
O-RING, Hi Pressure BS-97837GS
...
35
CAP, Outlet Port BS-97841GS
...
36
O-RING, Cap BS-97840GS
...
37
Nylon Roller BS-5040946
...
38
KIT, HEAD CASTING SFG (Service Kit Includes the Following Items; 39 & 40) BS-B4186GS
...
41
KIT, PISTON & SPRING (Service Kit Includes the Following Items; 1, 5, 33, 34, 42-44) BS-B2312GS
...
45
KIT, O-RING/SEAL SERV (Service Kit Includes the Following Items; 1, 5, 7, 21, 25, 28, 33, 34 & 36) BS-B1933
...
...
...
