1013-0 Briggs and Stratton Portable Generator 7,500 XL

Model: 1013-0

Save
 Part Not Listed?Part Not Listed?
product name

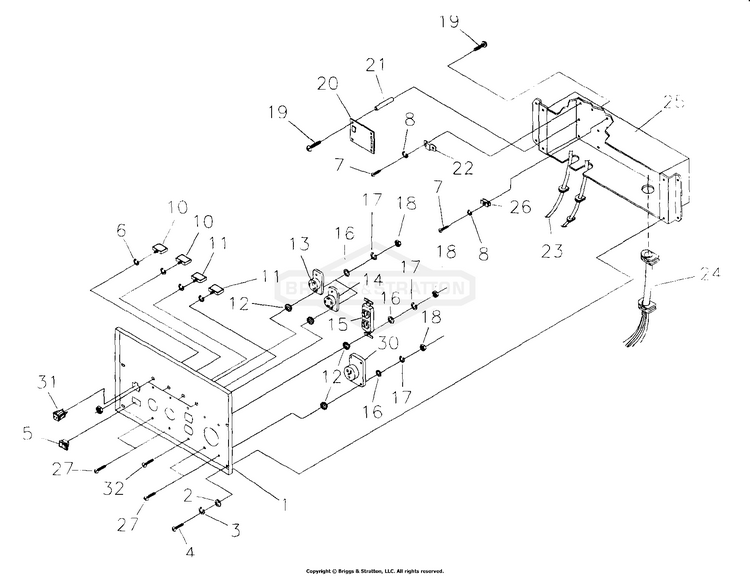

Control Panel

...
...
1
PANEL, Control BS-B1331GS
...
2
WASHER, #10 M5 Flat BS-23897GS
...
3
WASHER, M5 Lock BS-49226GS
...
4
SCREW, M5-0.8 x 12 mm BS-91526
...
5
SWITCH, Idle Control BS-82538GS
...
6
WASHER, 7/16" Int Lock BS-82881GS
...
7
SCREW, M3-0.5 x 10mm BS-43181GS
...
8
WASHER, M3 Lock BS-43182GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
13
OUTLET-120V TL30A BS-705932
...
14
OUTLET, 30A, 120V/240V Locking Type BS-43437
...
15
OUTLET, 20A,120V BS-68759GS
...
16
Thumb Control Lever BS-5043180B
...
17
WASHER, #8 M4 Lock BS-22264
...
18
NUT, M4-0.7 Hex BS-51715GS
...
19
SCREW, #6-32 x 3/8" BS-64526
...
20
BOARD, System Control BS-83970GS
...
21
3/4" Hex Standoff BS-64525
...
22
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
23
ASSEMBLY, Wire Harness BS-84335GS
...
24
GROMMET, Rubber Connector BS-84134GS
...
25
BOX, Control Panel BS-92069
...
26
TRANSFORMER, Idle Control BS-84028GS
...
27
SCREW, M4 - 0.7 x 10 mm BS-75475
...
30
OUTLET, 50A, 240V BS-74191GS
...
31
OUTLET, 10A, 12VDC BS-90418GS
...
32
PPHMS, M4-0.7 x 16 BS-75476GS

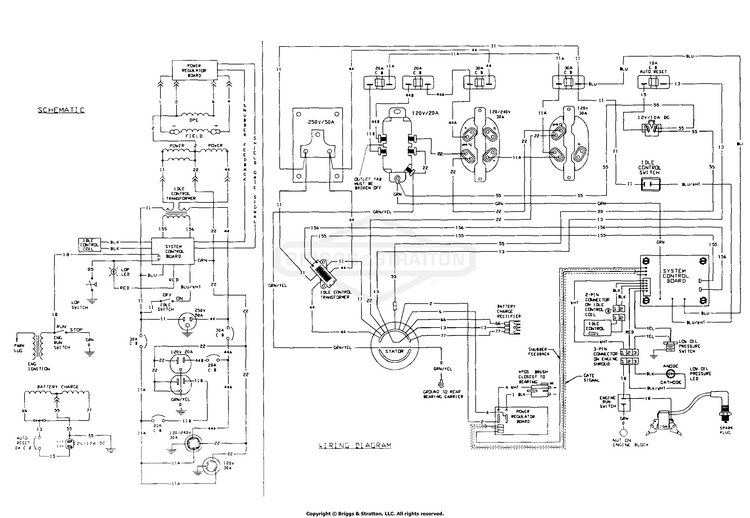

Electrical Data

...

No Parts Available for this Schematic

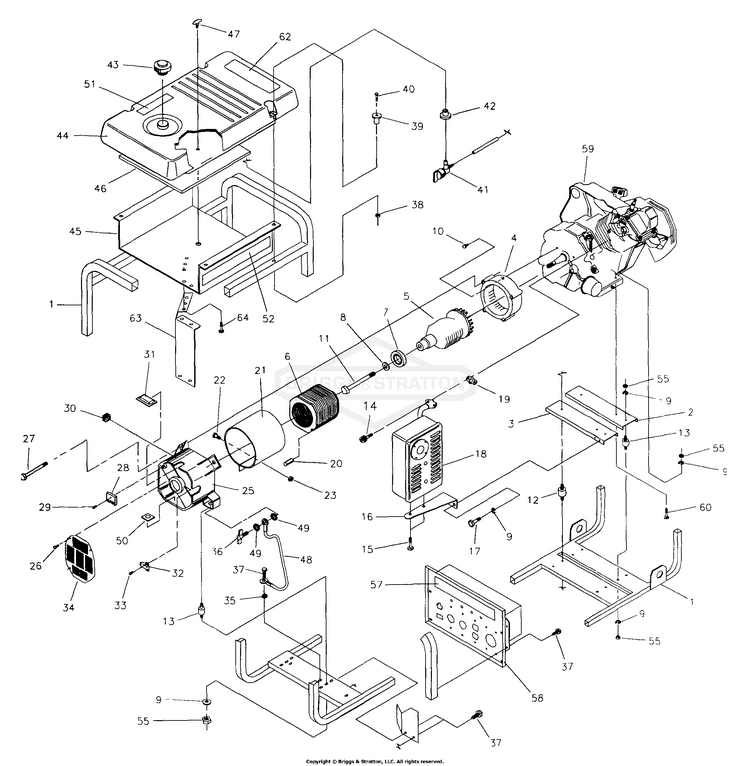

Generator

...
...
1
CRADLE BS-92432
...
2
SUPPORT, Engine BS-92531
...
3
SUPPORT, Eng/Muffler BS-N92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, Rotor BS-B1342GGS
...
6
ASSY, STATOR, 7500VR160, 10A-BC BS-B1341GGS
...
7
BEARING BS-65791GS
...
8
WASHER, Special Flat - M8 BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
HHCS, 5/16-24 x 10.625 LG. BS-47481GS
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
14
M8 x 20mm SHCS BS-40976
...
15
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
16
BRACKET, Muffler BS-92532GS
...
17
M6 x 12mm HHFS BS-66746
...
18
MUFFLER BS-A7433GS
...
19
GASKET, Exhaust BS-90239GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
WRAP, STATOR BS-81887JGS
...
22
SCREW, M5 x 0.8 x 12 BS-52618GS
...
23
NUT, LOCKING-M5 BS-52856GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT BS-66449LGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
SCREW BS-66849AGS
...
30
GROMMET, RUBBER BS-67022GS
...
31
ASSEMBLY, POWER REGULATOR BS-84132GS
...
32
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
33
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Tank BS-846987
...
44
ASSY,Tank, Fuel BS-193500GS
...
45
SHIELD, Heat BS-92039
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
50
MOUNT, CABLE TIE BS-57593GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, 7500XL BS-B1423GS
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
DECAL, PNL, CNTRL, 7500 BS-B1480GS
...
58
ASSEMBLY, CONTROL BOX BS-B1332GS
...
59
ENGINE, 15 HP. BS-ENG1335
...
60
DECAL HYDROWALK (DD61) BS-5022531
...
62
DECAL, START INSTRUCTIONS BS-93826GS
...
63
SHIELD, Heat BS-96068
...
64
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
...
...
