1001-0 Briggs and Stratton Wheel Kit 15" Deluxe Wheel Kit, P/N 93581

Model: 1001-0

Save
 Part Not Listed?Part Not Listed?
product name

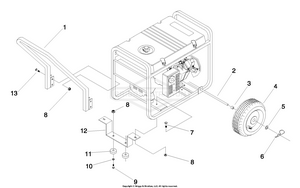

Deluxe Wheel Kit

...
...
1
WLDMNT, HNDL BS-93393GS
...
2
AXLE BS-191267GS
...
3
SPACER, Wheel BS-89635
...
4
WHEEL Assy 12" Dia. BS-89742
...
5
SHAFT BS-5022247
...
6
PIN, Quick Release BS-87005GS
...
7
HHCS, M8 x 20 BS-39253GS
...
8
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
9
SCREW BS-42909GS
...
11
VIBE MOUNT, with Washer BS-191413GS
...
12
BRACKET, Unit Support BS-89595
...
13
SCREW BS-39287GS
...
...
...
