product name

0777-2 Briggs and Stratton Pressure Washer 1,300 PSI

Model: 0777-2

Save
 Part Not Listed?Part Not Listed?
product name

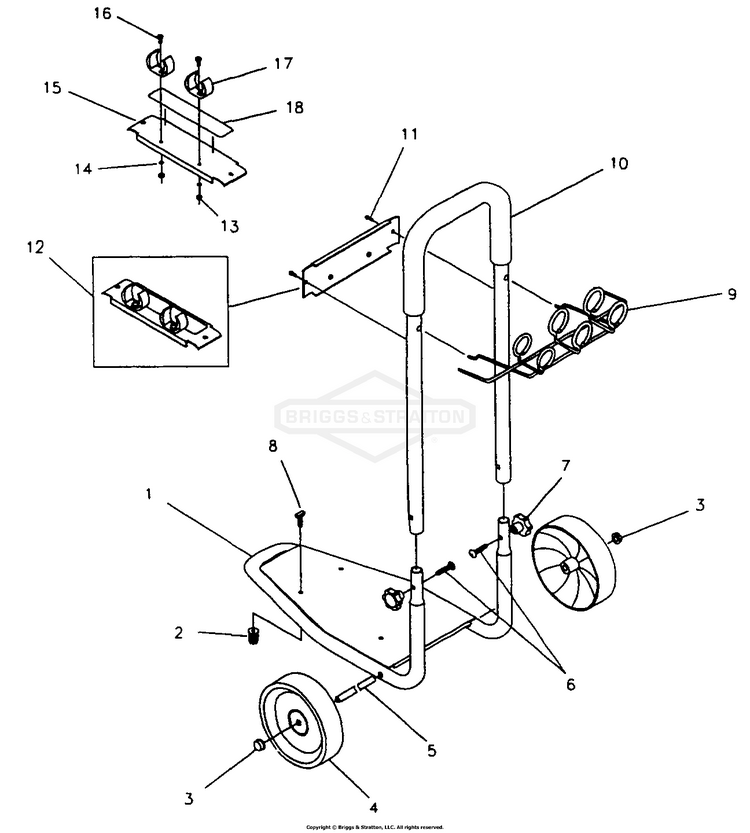

Cart

...
...
1
BASE, Cart BS-B2446
...
2
DECAL, Hydro-Drive Clutch BS-5021497
...
3
PUSHNUT, 3/8 IN DIA BS-75402BGS
...
4
WHL, 1.5 X 5.75, PLSTC, 3/8 IN BS-B2238GS
...
5
AXLE, 9.525 X 304, CART, EPW BS-B2215GS
...
6
BOLT, CRRG, M6-1.0 X 30 BS-B3083GS
...
7
DECAL, Hydro-Drive Clutch BS-5021497
...
8
DECAL, Hydro Adjustment (to fit in unit housing) BS-5021498
...
9
WIREFORM, EPW CART BS-B2212GS
...
10
ASSY, HNDL, CART, W/GRP BS-B2611GS
...
11
SCREW BS-28828BGS
...
12
ASSY, PLATE, DECAL/ACC HLDR BS-B2524GS
...
13
NUT, M4-0.7 Hex BS-51715GS
...
14
VALVE, FUEL SHUT OFF BS-84010414
...
15
PLATE, DECAL, EPW CART BS-B2213GS
...
16
CLIP, Spring BS-B2427BGS
...
17
BOLT, HHCS M4 - 0.7 x 10 Lg BS-51718
...
18
CLIP, SPRING, 3/4 TO 1-1/2 IN BS-B2427AGS
...
19
DECAL, EPW, CART BS-B2192AGS

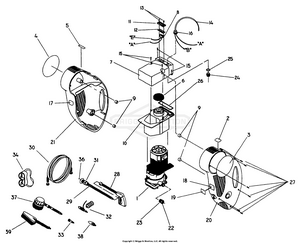

Main Unit

...
...
2
DECAL, BRANCH CRCT BS-B1415GS
...
3
DECAL, Unit BS-A1252
...
4
DECAL, 00777-1 INSTRUCT BS-B2525GS
...
5
DECAL, 1-800 Number BS-20566GS
...
6
FOAM, AIR IN FAN END BS-98806GS
...
7
HOUSING-SWITCH BS-B1650GS
...
8
SWITCH, Rocker 16A BS-20984
...
9
MNT, VIBR, 15DI BS-98801GS
...
10
COVER, Motor BS-97892
...
11
COUPLER, 1/2" NPT BS-5020985
...
12
PLUG BS-5020986FS
...
13
SCREW BS-84543BGS
...
14
CORD, Power BS-98805
...
15
PLASTITE, #6-19 X .75 BS-84358GS
...
16
RELIEF, STRAIN, CORD BS-99349GS
...
17
DECAL, ETL ELECT P.W. BS-B1053GS
...
18
DECAL, Data BS-B2708
...
19
OVERLAMINATE BS-99736
...
20
HSNG, EPW, GNRC, RED OUTLET BS-21334GS
...
21
BACK PLATE BS-5021335
...
22
QC, PLSTC, GARDEN BS-21265GS
...
23
Garden Hose Quick Connect BS-7175187GS
...
24
NUT, STRN RELIEF, LOCK BS-A1484GS
...
25
SEAL RING, Strain Relief BS-A1485
...
26
O-RING, Housing Seal BS-97835GS
...
27
PLASTITE, #6-19 X 1.0 BS-99350GS
...
28
GUN, Spray BS-21336
...
29
EXTNSN, BAY, BAY BS-21337GS
...
30
HOSE, High Pressure BS-97810
...
31
NZZL, HIGH W/FG AL1.15 BS-B3333DGS
...
32
FOAMER BS-A1069
...
33
ADPTR, BAYONET AL-8 BS-B1051GS
...
34
GOGGLES BS-87815GS
...
36
ORIFICE BS-B1236DGS
...
37
ACC, KIT, BRUSH, DUAL BS-6057
...
38
NZZL, TURBO, 1.15, M22, ARL BS-B1300DGS
...
39
BRUSH, MULTI-USE BS-B2391GS

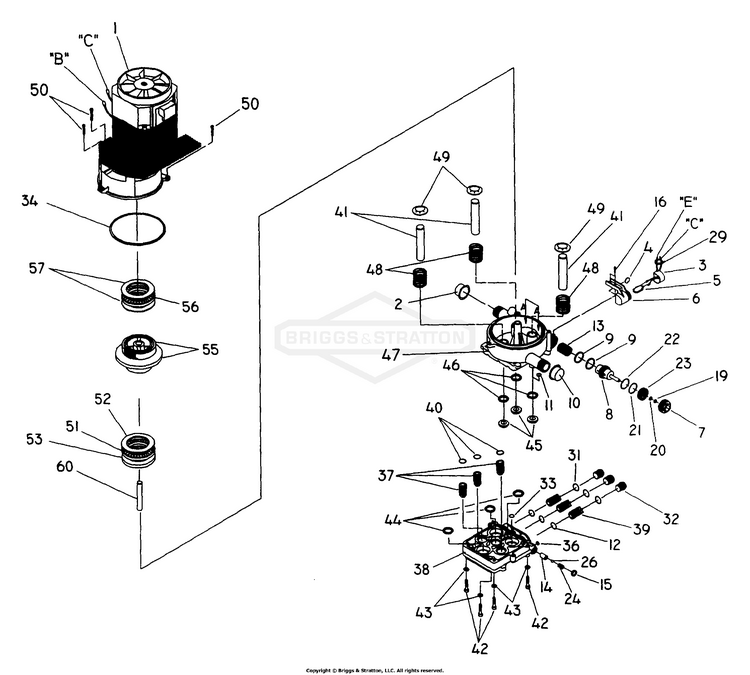

Pump and Motor

...
...
1
ASSY, MOTOR, FELCHAR BS-B1514GS
...
2
CAP, ADPTR, HP BS-97100GS
...
3
BOOT, RBBR BS-21054GS
...
4
GROMMET, Rubber BS-21055
...
5
SWITCH, MICRO, 21 AMP BS-20138GS
...
6
SHIM BS-5020928
...
7
CAP, RETAINR AUTO SW BS-20218GS
...
8
KIT-SHUTTLE PISTON BS-B3384GS
...
9
WIPER, PSTN BS-21525GS
...
10
CAP, ADPTR, INLET BS-B1124GS
...
11
O-RING, BYPASS EE BS-97855GS
...
12
O-RING, VLV, CHCK BS-97934GS
...
13
SPRING, LO PRSSR AUTO SW BS-20212GS
...
14
SEAT, VLV, POP-OFF BS-B1960GS
...
15
SCREW, SET STEEL BS-B2240GS
...
16
TAPTITE, M4-0.7 X 10 BS-A1495GS
...
19
BALL JOINT, 3/8-24 MA BS-5021124SM
...
20
Close Nipple BS-5021123
...
21
DECAL, Hydro Drive BS-5021126
...
22
O-RING, 25.07 ID 2.62 BS-21125GS
...
23
STOP, PSTN RETURN BS-20217GS
...
24
SPRING, VLV, POP-OFF BS-A1130GS
...
26
BALL, 3/16, POPOFF VLV BS-97852GS
...
29
TIE WRAP, 4" Black BS-28739AGS
...
31
O-RING, Cap BS-97840GS
...
32
CAP, Outlet Port BS-97841GS
...
33
O-RING, Hi Pressure BS-97837GS
...
34
O-RING, Housing Seal BS-97835GS
...
36
PLUG, Taper dia. 5.4 BS-76353A
...
37
ASSY, VLV, CHK, INLET BS-B2664GS
...
38
HEAD, CYL, EPW BS-A1111AGS
...
39
ASSY, VLV, CHK, OUTLET BS-97839GS
...
40
O-RING, PISTN HOUSNG BS-97851GS
...
41
PSTN, 15 DIA X 65 LG BS-97832GS
...
42
Nylon Roller BS-5040946
...
43
LOCKWASHER, M6 Ribbed BS-93873
...
44
SEAL, PSTN, U-CUP BS-93667GS
...
45
SPACER, Pilot BS-97831GS
...
46
SEAL, Oil Piston BS-93680GS
...
47
HOUSING, Piston BS-B1119
...
48
SPRING, RETURN, PSTN, EG BS-99503GS
...
49
SCREW BS-40945GS
...
50
CAPSCREW, Socket Head BS-97962GS
...
51
BRNG, NDL, THRST, 40X60 INA BS-97824AGS
...
52
WSHR, BRNG, 40X60X1 BS-97826GS
...
53
WSHR, BRNG, 30X60X6 BS-97825GS
...
55
ASSY, ELE, CAM/THIN GEAR BS-B2663GS
...
56
CAGE, THRST, BRNG, NDL BS-97822GS
...
57
WSHR, 35 X 55 X 3 BS-20610GS
...
60
SHAFT, IDLER, AXIALCAM BS-97833GS
...
...
...
