076020A-0 Briggs and Stratton 30,000 Watt Home Generator System

Model: 076020A-0

Save
 Part Not Listed?Part Not Listed?
product name

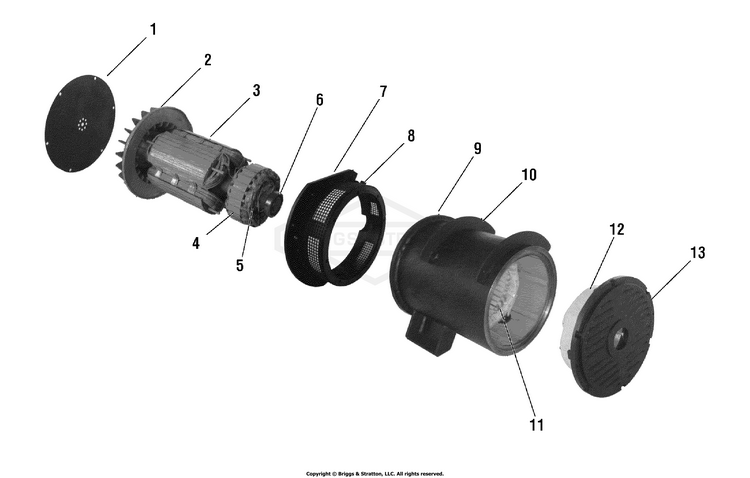

Alternator Group

...
...
4
EXCITER, Rotor BS-208353GS
...
5
RECTIFIER ASSEMBLY RING BS-313280GS
...
6
BEARING BS-313281GS
...
12
EXCITER, Stator BS-208220GS

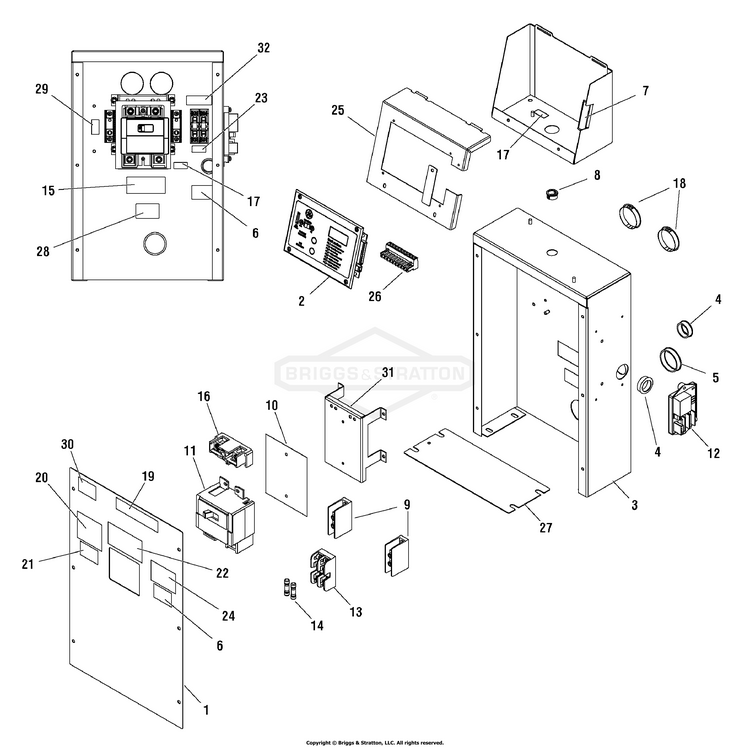

Control Panel Group

...
...
1
PANEL, Access BS-B209903GS
...
2
ASSEMBLY, Control Panel BS-311353GS
...
3
BOX, Control Panel BS-B207515GS
...
4
BUSHING, Snap, 1" I.D. BS-186173GS
...
5
BUSHING, Snap, 2" BS-203015GS
...
6
DECAL, Warning, Electrical Shock BS-205395GS
...
7
DECAL, Terminal Block BS-198549GS
...
8
BUSHING, Snap 11/16" I.D. BS-186582GS
...
9
BLOCK, Terminal BS-208365GS
...
10
INSULATION BS-204519GS
...
11
CIRCUIT BREAKER, 150A, 2 Pole BS-209168GS
...
12
REGULATOR, Voltage BS-209856GS
...
13
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
14
FUSE, 10 Amp 600v BS-205110GS
...
15
DECAL, Ground, Neutral BS-198550GS
...
16
KIT, Load Lug Conversion BS-204530GS
...
17
DECAL SHEET, WARNINGS BS-705920
...
18
PLUG, Hole BS-310656GS
...
19
Decal, Danger High Voltage BS-B5082AGS
...
20
DECAL SHEET, WARNINGS BS-705920
...
21
DECAL, Warning, Electrical Shock BS-205394GS
...
22
DECAL, Caution, Standby Service BS-193297GS
...
23
DECAL SHEET-WARNINGS BS-704418
...
24
DECAL, Warning, Outdoor Install BS-205393GS
...
25
COVER BS-B310533GS
...
26
CONNECTOR, Terminal, 10 Pin BS-198516GS
...
27
PANEL BS-B209876GS
...
28
DECAL BS-207242GS
...
29
DECAL SHEET - LCG BS-705919
...
30
DECAL, Warning, Fuse BS-207241GS
...
31
BRACKET BS-B310469GS
...
32
DECAL, Fuse, 10 Amp BS-205115GS
...
--
HARNESS, Wire (Not Illustrated) BS-209327GS
...
--
FUSE, Auto Type, 15 Amp (Not Illustrated) BS-84010838
...
--
CONNECTOR-AVR (Not Illustrated) BS-770128

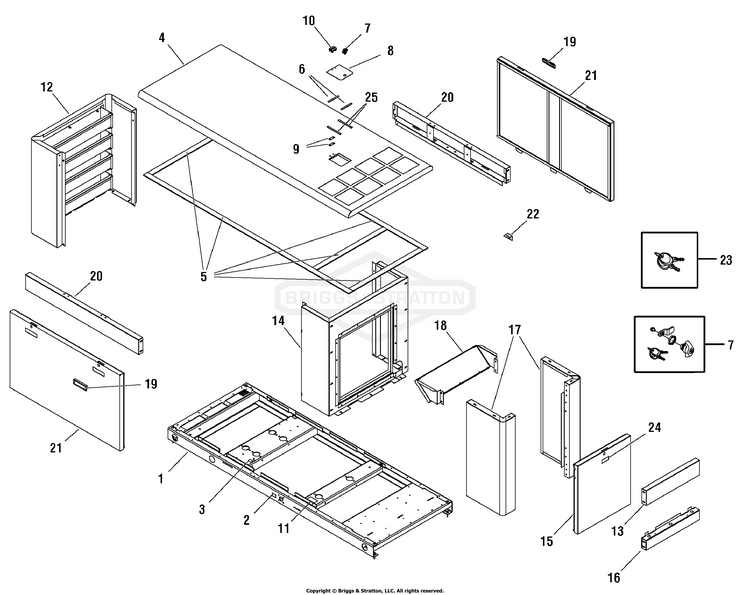

Enclosure Group

...
...
1
BASE BS-316549GS
...
2
DECAL, Operation Instructions BS-186640GS
...
3
DECAL SHEET, WARNINGS BS-705920
...
4
ROOF BS-312049GS
...
5
SEAL BS-205368GS
...
6
SEAL BS-207758GS
...
7
KIT, Latch BS-204700GS
...
8
COVER BS-AF310482GS
...
9
PLATE, Cover BS-AF310477GS
...
10
HINGE BS-205225GS
...
11
DECAL BS-205126GS
...
12
BULKHEAD, Alternator BS-205855GS
...
13
RAIL, Support BS-205853GS
...
14
BULKHEAD, Engine BS-205850GS
...
15
DOOR BS-205854GS
...
16
RAIL, Support BS-207030GS
...
17
CORNER BS-205851GS
...
18
BAFFLE BS-208050GS
...
19
HANDLE BS-186049GS
...
20
RAIL, Support BS-207031GS
...
21
DOOR BS-207032GS
...
22
BRACKET BS-B310486GS
...
23
KEY, Latch BS-207652GS
...
24
DECAL SHEET, WARNINGS BS-705920
...
25
SEAL BS-197316GS
...
--
SEAL (Cut to Fit) (Not Illustrated) BS-207730GS

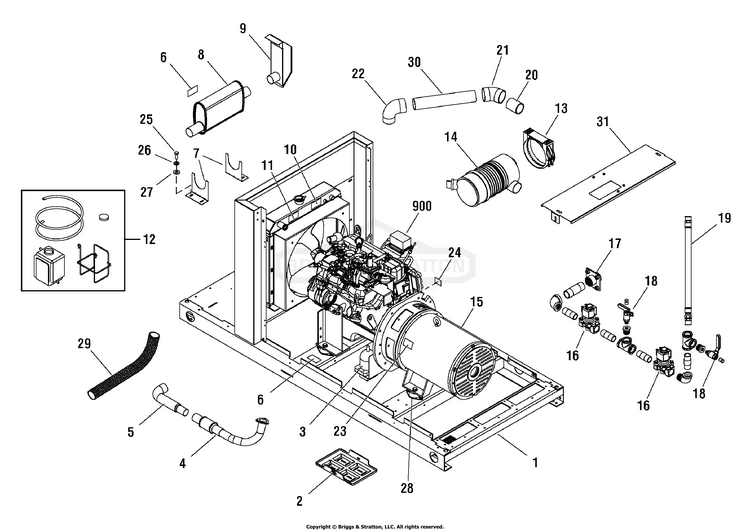

Main Unit Group

...
...
1
BASE BS-316549GS
...
2
TRAY, Battery BS-205623GS
...
3
HEATER BS-206119GS
...
4
EXHAUST BS-312101GS
...
5
TUBE, Exhaust BS-311972GS
...
6
DECAL SHEET, WARNINGS BS-705920
...
7
BRACKET, Muffler BS-310600GS
...
8
KIT-MUFFLER BS-707175
...
9
KIT-MUFFLER BS-707175
...
10
DECAL BS-205396GS
...
11
DECAL SHEET, WARNINGS BS-705920
...
12
BOTTLE, Overflow BS-205226GS
...
13
CLAMP BS-205103GS
...
14
FILTER, Air BS-204274GS
...
--
CARTRIDGE-AIR CLEANER BS-709906
...
15
ALTERNATOR BS-207444GS
...
16
VALVE, Fuel BS-194683GS
...
17
COUPLER BS-AA310518GS
...
18
VALVE, Ball BS-206626GS
...
19
HOSE, Fuel BS-310810GS
...
20
TUBE BS-312696GS
...
21
ELBOW BS-206727GS
...
22
ELBOW BS-206598GS
...
23
DECAL BS-205401GS
...
24
DECAL, Operation Instructions BS-186640GS
...
28
MOUNT, Vibration BS-204653GS
...
29
INSULATION BS-206985GS
...
30
TUBE BS-312890GS
...
31
BRACKET BS-B209900GS
...
--
MANUAL, Operator's (Not Illustrated) BS-208740GS
...
--
MANUAL, Install (Not Illustrated) BS-311337GS
...
--
KIT, Manual ACC (Not Illustrated) BS-312833GS
...
--
DECAL SHEET, WARNINGS (Not Illustrated) BS-705920
...
--
SWITCH, Oil Pressure (Not Illustrated) BS-841281
...
--
SWITCH, Temperature (Not Illustrated) BS-206533GS
...
--
KIT,SERVICE,WALL PLATE (Not Illustrated) BS-313326GS
...
--
HOSE (Not Illustrated) BS-205206GS
...
--
HOSE, Drain (Not Illustrated) BS-206943GS
...
--
FUSE, Auto Type, 15 Amp (Not Illustrated) BS-84010838
...
--
PAINT, Touch Up, Charcoal (Not Illustrated) BS-203374GS
...
--
PAINT, Touch Up, GE Silver (Not Illustrated) BS-208346GS
...
--
KIT, Hardware, Battery (Not Illustrated) BS-205622GS
...
--
DECAL, Rainproof (Not Illustrated) BS-195642GS
...
--
PAINT, Touchup, Spray, Silver, 12oz (Optional Accessory) BS-199475GS
...
--
PAINT, Spray, Charcoal (Optional Accessory) BS-203417GS
...
--
DECAL, Do Not Lift (Optional Accessory) BS-187315GS
...
--

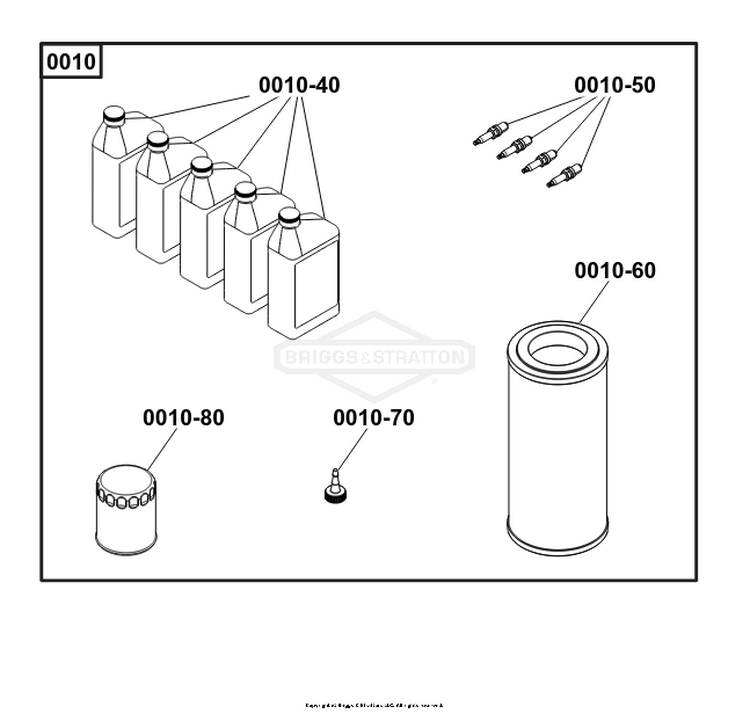

KIT, Maintenance (Optional Accessory) BS-6167
...
...
...
