074001-0 Briggs and Stratton Air Compressor 4.9 CFM Twintank

Model: 074001-0

Save
 Part Not Listed?Part Not Listed?
product name

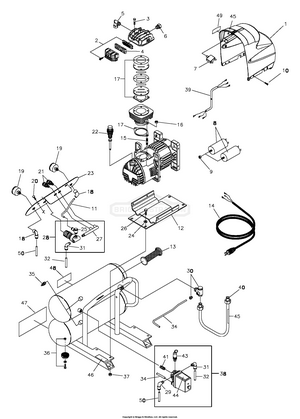

Main Unit

...
...
1
KIT, Shroud, Plastic (Includes #45 & 49) BS-200690GS
...
2
KIT, Air Filter BS-200687GS
...
3
SCREW, M6 x 40 BS-200684GS
...
4
FILTERING ELEMENT BS-200697GS
...
5
CONNECTOR, Elbow BS-200685GS
...
6
VALVE, Start BS-200688GS
...
7
BREAKER, Circuit, 17A BS-200717GS
...
8
CAPACITOR BS-200694GS
...
11
HOSE, Rilsan (cut to fit) BS-199961GS
...
12
BASE BS-200984GS
...
13
HANDLE BS-200682GS
...
14
ASSY, Cable, Power BS-200720GS
...
17
KIT, Valve Plate BS-200718GS
...
18
CONNECTOR, Elbow BS-200985GS
...
19
GAUGE, Pressure BS-200680GS
...
21
COUPLER, Quick Connect BS-200677GS
...
22
DIPSTICK, Oil BS-200691GS
...
23
KIT, Panel, Instrumental BS-200704GS
...
25
CONNECTOR, Elbow BS-200986GS
...
27
MANIFOLD BS-200706GS
...
28
ASSY, Pressure Regulator BS-200995GS
...
29
CONNECTOR, Elbow BS-200992GS
...
30
VALVE, Non Return BS-200674GS
...
31
CONNECTOR, Elbow BS-200988GS
...
32
HOSE, Rilsan BS-200989GS
...
34
HOSE, Rilsan BS-199961GS
...
35
VALVE, Drain BS-200675GS
...
36
KIT, Vib Mount BS-192310GS
...
38
ASSY, Pressure Switch BS-200994GS
...
39
WIRE HARNESS BS-200910GS
...
40
KIT, Tube, Infeed BS-200703GS
...
41
ADAPTER BS-201697GS
...
43
VALVE, Safety BS-200678GS
...
44
DECAL, Electric Shock BS-199176GS
...
45
DECAL, Hot Surface BS-199174GS
...
46
DECAL, Important, Level Surface BS-201732GS
...
47
DECAL, Warning BS-199172GS
...
48
DECAL, Warning, Tank Drain BS-199739GS
...
49
DECAL, Reset BS-201731GS
...
50
HOSE, Rilsan BS-199961GS
...
MANUAL, Operator's Not Illustrated BS-198815GS
...
OIL, Compressor Not Illustrated BS-201765GS
...
...
...
