073034-0 Briggs and Stratton Water Pum WP2-35

Model: 073034-0

Save
 Part Not Listed?Part Not Listed?
product name

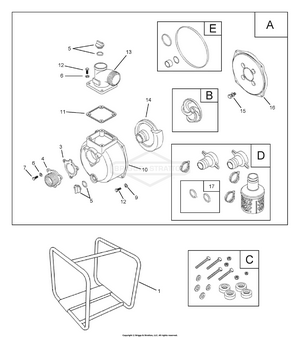

Water Pump

...
...
1
CRADLE BS-865162GS
...
3
VALVE, Check BS-197754GS
...
4
FLANGE, Inlet, 2" BSP BS-197756GS
...
5
PLUG ASSEMBLY BS-198057GS
...
10
HOUSING, Pump BS-197752GS
...
11
GASKET, Out BS-197758GS
...
13
FLANGE, Out, 2" BSP BS-197760GS
...
14
VOLUTE BS-197747GS
...
15
FASTNER ASSEMBLY BS-198048GS
...
16
ADAPTER, Engine BS-197738GS
...
17
GASKET, 2" BS-197764GS
...
A
HOUSING PUMP ASSEMBLY BS-197994GS
...
B
KIT, Impeller, 2" BS-704132
...
C
KIT, Vibration Mount BS-197887GS
...
D
KIT, Coupler, 2" BSP BS-198073GS
...
E
KIT, Seal BS-198075GS
...
--
Manual, Operator’s 073034 Parts Not Illustrated BS-MS10408
...
...
...
