073009-0 Briggs and Stratton Water Pum 159 GPM

Model: 073009-0

Save
 Part Not Listed?Part Not Listed?
product name

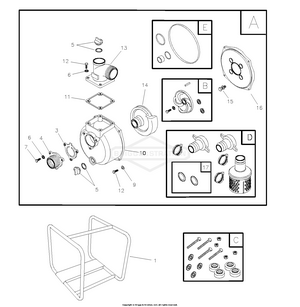

Main Unit

...
...
1
CRADLE BS-865154GS
...
3
VALVE, Check BS-197754GS
...
4
FLANGE, Inlet, 2" BSP BS-197756GS
...
5
ASSY, Plug BS-198057GS
...
10
HOUSING, Pump BS-197752GS
...
11
GASKET, Out BS-197758GS
...
13
FLANGE, Out, 2" BSP BS-197760GS
...
14
VOLUTE BS-197747GS
...
15
ASSY, Fastener BS-198048GS
...
16
ADAPTER, Engine BS-197738GS
...
17
GASKET, 2" BS-197764GS
...
A
ASSY, Housing Pump Service kits include all parts shown within the box. BS-197993GS
...
B
KIT, Impeller 2" Service kits include all parts shown within the box. BS-198058GS
...
C
KIT, Vibration Mount Service kits include all parts shown within the box. BS-197887GS
...
D
KIT, Coupler, 2" BSP Service kits include all parts shown within the box. BS-198073GS
...
E
KIT, Seal Service kits include all parts shown within the box. BS-198075GS
...
xx
MANUAL, Operator’s Not Illustrated BS-MS5234
...
xx
DECAL, Fuel Tank Not Illustrated BS-198296GS
...
xx
LABEL, Warning Not Illustrated BS-198305GS
...
xx
DECAL, Caution Not Illustrated BS-198303GS
...
xx
DECAL, Recoil Not Illustrated BS-198295GS
...
xx
DECAL, Air Cleaner Not Illustrated BS-198294GS
...
...
...
