product name

073006-0 Briggs and Stratton Water Pum WPH2-65, SCH4070BS

Model: 073006-0

Save
 Part Not Listed?Part Not Listed?
product name

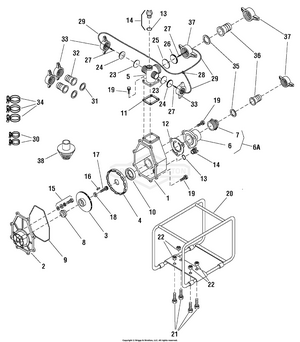

High Pressure Pump

...
...
1
*CASING BS-200 200 130
...
2
*COVER, Casing BS-200 201 040
...
3
*IMPELLER BS-200 210 200
...
4
*DIFFUSER BS-200 210 410
...
5
*BEND BS-200 201 080
...
6
*VALVE CASE BS-200 200 540
...
7
*FITTING PIPE BS-200 500 240
...
6A
*VALVE CASE ASSEMBLY BS-202 200 160
...
8
*MECHANICAL SEAL BS-201 100 031
...
9
*PACKING, Casing BS-200 900 350
...
10
*PACKING, Inner Casing BS-200 900 240
...
11
*PACKING, Bend BS-200 900 170
...
12
*CHECK VALVE BS-200 900 120
...
13
*O-RING BS-200 800 020
...
14
*PLUG ASSEMBLY BS-200 500 040
...
15
*CASING BOLT ASSEMBLY BS-203 000 100
...
16
*KEY BS-203 300 100
...
17
*BOLT, Socket, M8x35 BS-203 000 400
...
18
*SEAL WASHER BS-203 100 210
...
19
*BOLT, Hex BS-203 000 040
...
20
*FRAME (Black) BS-200 101 320
...
21
*BOLT, Hex BS-203 000 070
...
22
*NUT, Flange BS-203 200 010
...
23
*PACKING, Cap BS-200 900 100
...
24
*CAP BS-200 300 400
...
25
*PACKING, Cap BS-200 900 090
...
26
*CAP BS-200 300 390
...
27
*PIN BS-203 300 050
...
28
*RING BS-203 300 060
...
29
*CHAIN BS-203 300 070
...
30
*HOSE BAND BS-201 000 020
...
31
*PACKING, Coupling BS-200 900 030
...
32
*HOSE COUPLING BS-200 500 030
...
33
*HOSE COUPLING HANDLE BS-200 500 020
...
34
*HOSE BAND BS-201 000 030
...
35
*PACKING, Coupling BS-200 900 040
...
36
*HOSE COUPLING BS-200 500 140
...
37
*HOSE COUPLING HANDLE BS-200 500 150
...
38
*STRAINER BS-201 200 020
...
...
...
