071230-00 Briggs and Stratton Transfer System 200 Amp Transfer Switch

Model: 071230-00

Save
 Part Not Listed?Part Not Listed?
product name

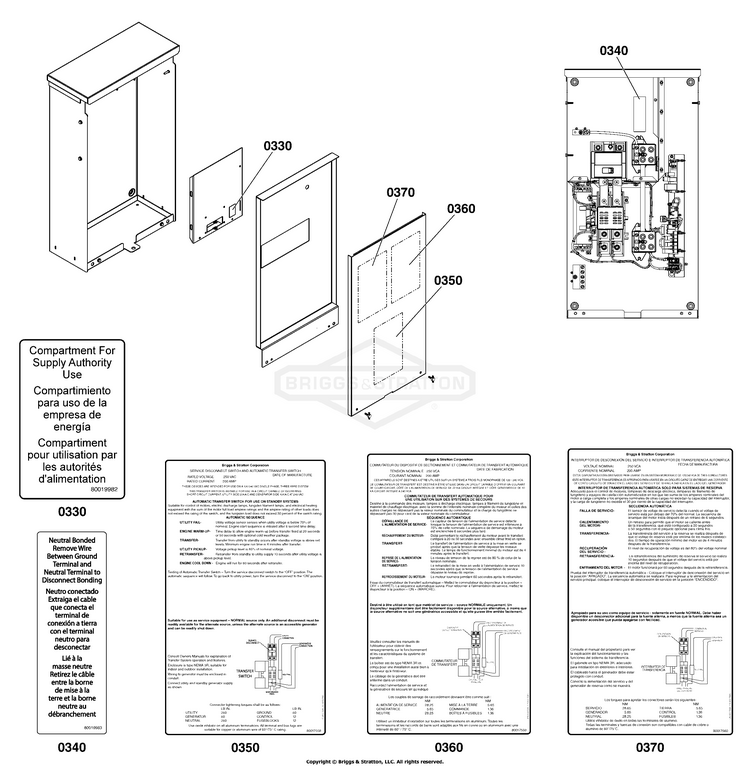

Decals Group - ATS Informational

...
...
0330
DECAL, Compartment for Supply Authority Use BS-771130
...
0340
DECAL, Nuetral Bonded BS-770602
...
0350
DECAL, Transfer Switch, 200A, EN BS-84001926
...
0360
DECAL, Transfer Switch, 200A, FR BS-84001934
...
0370
DECAL, Transfer Switch, 200A, ES BS-84001936

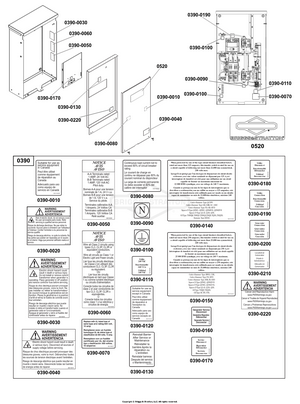

Decals Group - ATS Warning

...
...
0390
DECAL SHEET - WARNINGS (Includes items 0390-0010 thru 0390-0240) BS-84007663

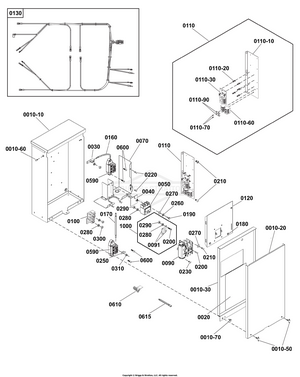

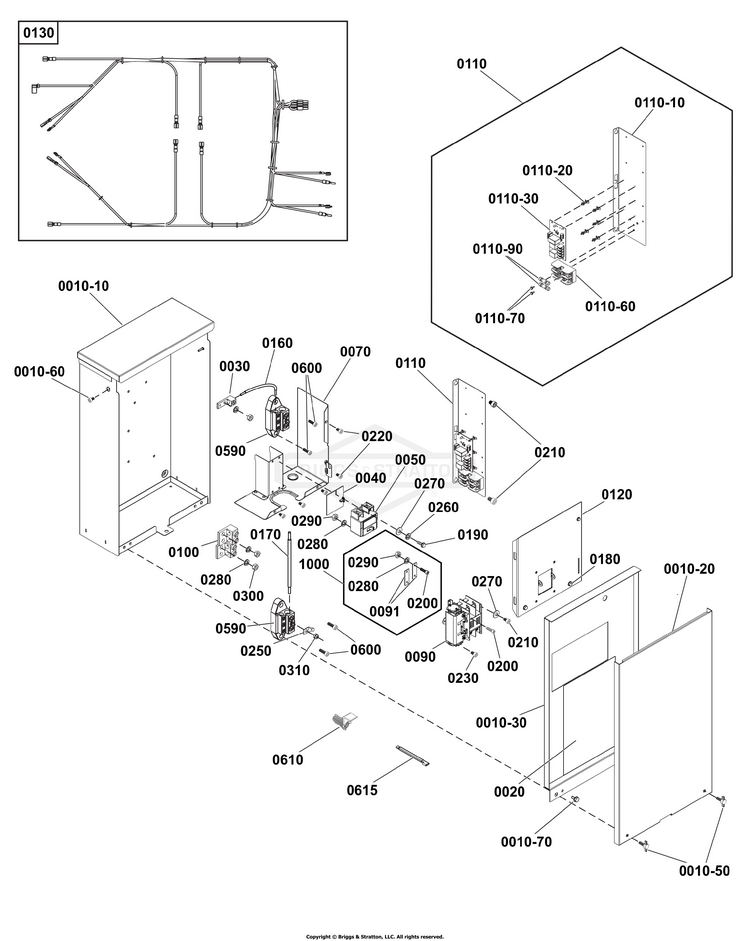

Transfer Switch - Enclosure

...
...
0010-20
DOOR BS-770438
...
0010-30
DEADFRONT BS-770619
...
0010-50
SCREW BS-315108GS
...
0010-60
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
0010-70
SCREW BS-B5763GS
...
0020
INSULATION, Dead Front BS-193664GS
...
0030
LUG, Ground Connect BS-199011GS
...
0040
INSULATION, Circuit Breaker BS-192879GS
...
0050
BREAKER, Circuit, 200A BS-192065GS
...
0090
CONTACTOR, 200A BS-315050GS
...
0100
LUG BS-84004498
...
0110
CIRCUIT CARD, Sub Assembly (Includes items 0110-10, 0110-20, 0110-30, 0110-60, 0110-70, 0110-90) BS-771006
...
0110-10
BRACKET, Mounting BS-771030
...
0110-20
SPACER BS-707397
...
0110-30
BOARD, Circuit BS-770434
...
0110-60
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
0110-70
SCREW, Hex Head, Trilobular, #6-32 x 3/8 BS-192730GS
...
0110-90
FUSE, 10 Amp 600v BS-205110GS
...
0120
DEADFRONT, Sub Assembly BS-770621
...
0130
HARNESS, Wire BS-84006866
...
0160
WIRE BS-771031
...
0170
WIRE BS-771032
...
0180
SCREW BS-B5763GS
...
0190
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0210
SCREW BS-707411
...
0250
ADAPTER, Male Disconnect BS-74138GS
...
0260
WASHER, Lock, #10 BS-22152GS
...
0270
WASHER, Flat, #10 - M5 BS-23897GS
...
0280
WASHER BS-22097GS
...
0290
NUT, Hex, 1/4-20 BS-22127GS
...
0300
NUT, Hex, M6 - 1.0 BS-49813GS
...
0590
TERMINAL, Neutral (Incl. Ref. No. 0600 and bonding screw) BS-192696GS
...
1000
KIT, Bus Bar (Includes items 0091, 0200, 0280, 0290) BS-771033
...
0091
BAR-BUS BS-319267GS
...
0280
WASHER BS-22097GS
...
0290
NUT, Hex, 1/4-20 BS-22127GS
...
...
...
