071200-00 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch

Model: 071200-00

Save
 Part Not Listed?Part Not Listed?
product name

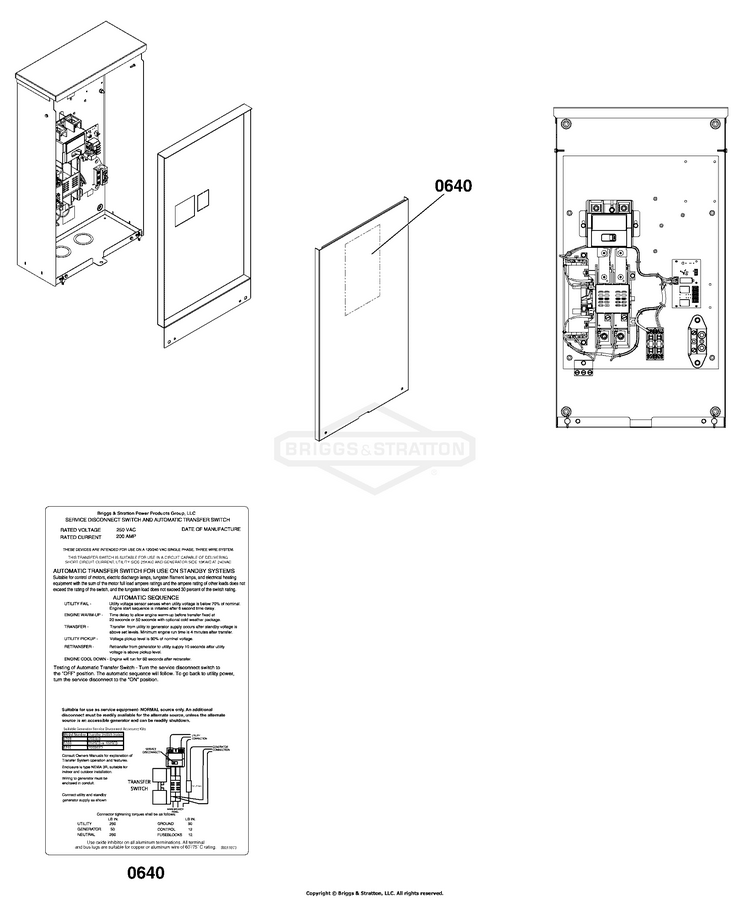

Decals Group - ATS Informational

...
...
0640
DECAL, Transfer Switch, 200 Amp BS-709510

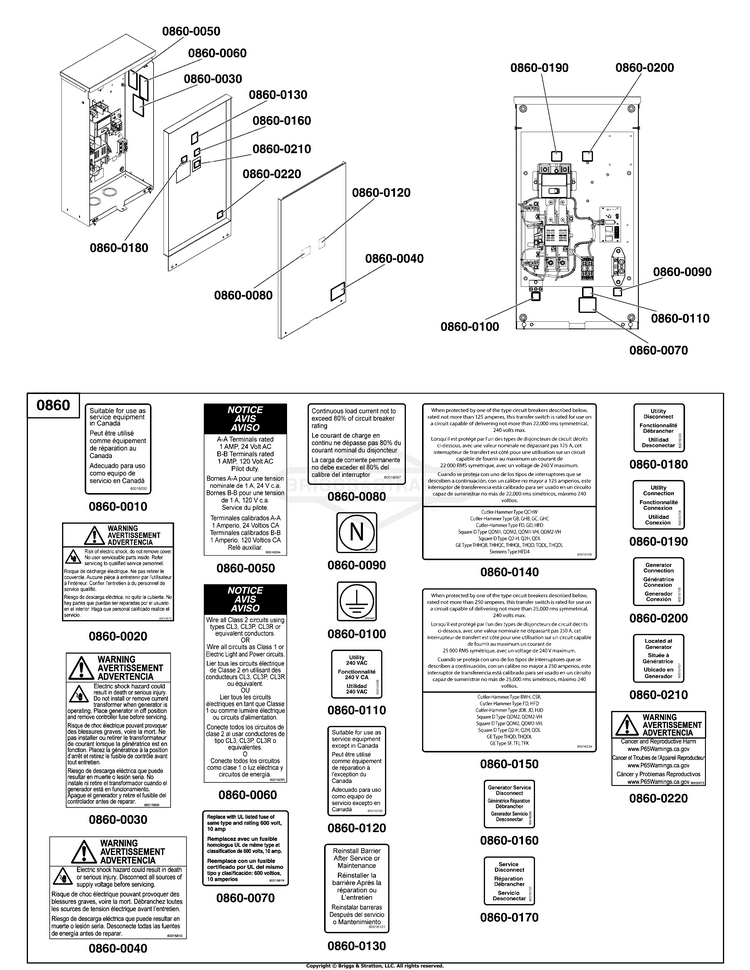

Decals Group - ATS Warning

...
...
0860
DECAL SHEET - WARNINGS (Includes items 0860-0010 thru 0860-0220) BS-770133

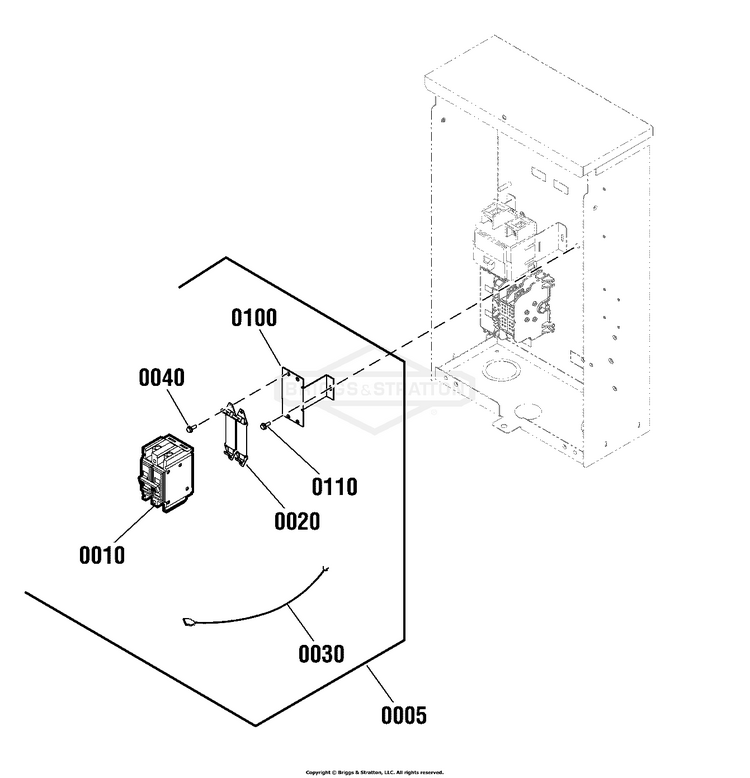

Optional Accessory - Circuit Breaker Group

...
...
0005
KIT, Circuit Breaker (Includes all parts shown on page) BS-6309
...
0010
BREAKER, Circuit, 100A BS-311318GS
...
0020
BRACKET BS-192770GS
...
0030
CABLE, Transfer Switch to Generator Circuit Breaker, 4 AWG Black BS-704240
...
0100
BRACKET, Mounting (Use as required) BS-770436
...
0110
SCREW, Trilobular, #10-32 x 1/2 (Use as required) BS-200020GS

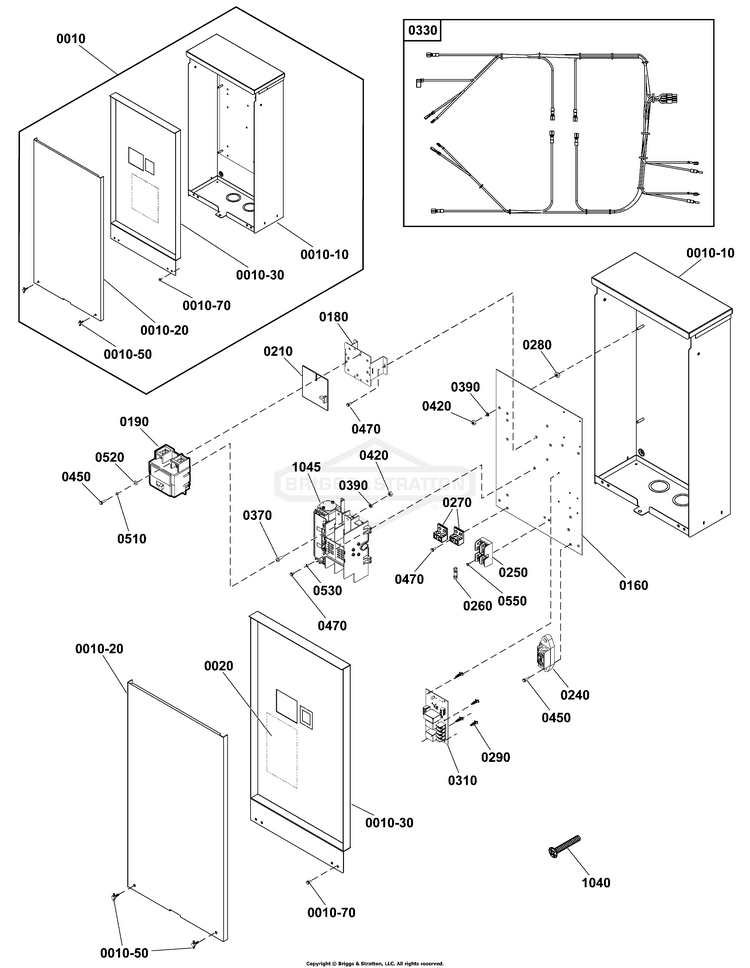

Transfer Switch - Hingeless Enclosure

...
...
0010-20
DOOR (Includes Decals) BS-770438
...
0010-50
SCREW BS-315108GS
...
0010-70
SCREW BS-B5763GS
...
0020
INSULATION, Dead Front BS-193664GS
...
0180
BRACKET BS-770433
...
0190
BREAKER, Circuit, 200A BS-192065GS
...
0210
INSULATION, Circuit Breaker BS-192879GS
...
0240
TERMINAL, Neutral (Incl. Ref. Nos. 0450, 1040) BS-192696GS
...
0250
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
0260
FUSE, 10 Amp 600v BS-205110GS
...
0270
TERMINAL, GROUND BS-84006973
...
0280
NUT, Hex, 3/8-16 BS-22241GS
...
0290
SPACER, PCB Board, 1/2" BS-197979GS
...
0310
BOARD, Circuit BS-770434
...
0330
HARNESS, Wire BS-84006866
...
0390
WASHER BS-22097GS
...
0420
NUT, Hex, 1/4-20 BS-22127GS
...
0450
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0470
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
0510
WASHER, Lock, #10 BS-22152GS
...
0520
WASHER, Flat, #10 - M5 BS-23897GS
...
0530
WASHER BS-23762GS
...
0550
SCREW, Hex Head, Trilobular, #6-32 x 3/8 BS-192730GS
...
1040
SCREW, Bonding, 1/4-20 X 1 3/4" BS-84007447
...
1045
CONTACTOR, 200A BS-315050GS
...
--
KIT, Circuit Breaker (Optional Accessory - Not Included) BS-6309
...
--
KIT, Power Management (Optional Accessory - Not Included) BS-6422
...
--
KIT, Power Management (Optional Accessory - Not Included) BS-6421
...
...
...
