071057-01 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch w/ACCM NEMA 3R

Model: 071057-01

Save
 Part Not Listed?Part Not Listed?
product name

Optional Accessory - Circuit Breaker Group

...
...
0040
INSULATION BS-192879GS
...
0070
BRACKET BS-314880GS
...
0080
BREAKER, Circuit, 200A (Connect to Generator Power) BS-318878GS
...
0110
WIRE BS-314323GS

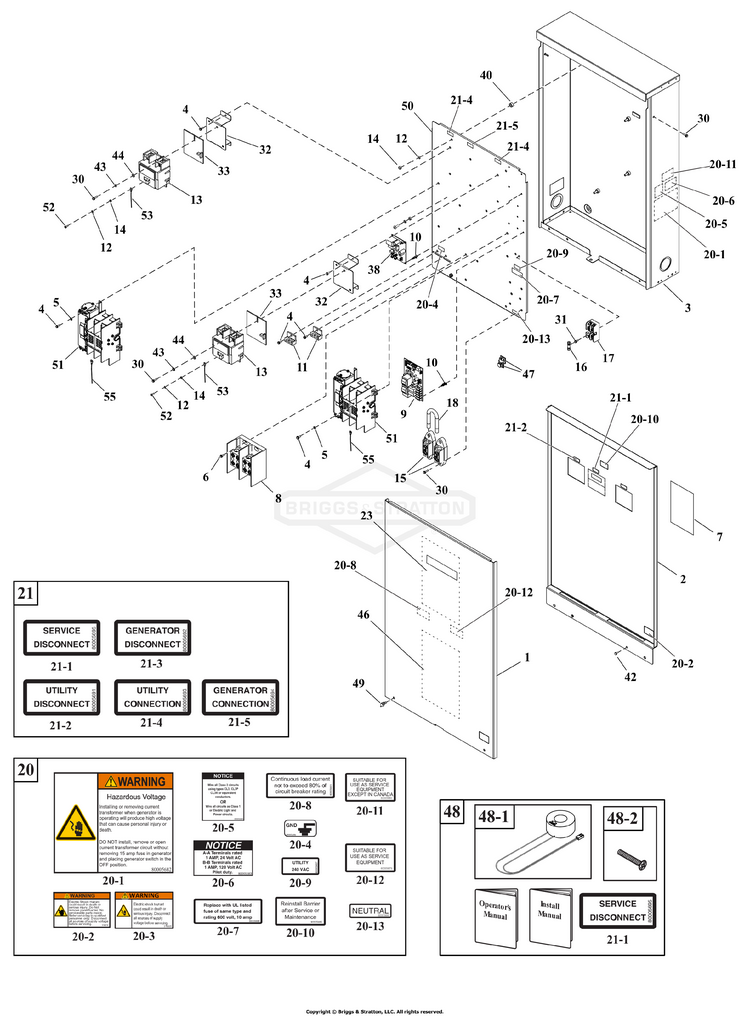

Transfer Switch

...
...
1
DOOR BS-313347GS
...
2
PANEL BS-706784
...
3
ENCLOSURE BS-313251GS
...
7
INSULATION BS-193664GS
...
8
TERMINAL BS-706845
...
9
BOARD-CIRCUIT BS-771701
...
10
SPACER BS-197979GS
...
11
TERMINAL, GROUND BS-84006973
...
13
BREAKER, Circuit, 200A BS-192065GS
...
15
TERMINAL (Incl. Ref. No. 30 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
HOLDER, Fuse BS-192151GS
...
18
WIRE BS-314877GS
...
20
DECAL SHEET- WARNINGS (Includes Ref. Nos. 20-1, 20-3, 20-4, 20-5, 20-6, 20-7, 20-8, 20-9, 20-10, 20-11 & 20-12) BS-704420
...
21
DECAL SHEET - CONNECTIONS (Includes Ref. Nos. 21-1, 21-2, 21-3, 21-4 & 21-8) BS-705423
...
23
DECAL BS-314328GS
...
32
BRACKET BS-314880GS
...
33
INSULATOR BS-192879GS
...
38
BOARD, Circuit BS-310443GS
...
40
NUT, 3/8"-16 BS-22241GS
...
46
DECAL BS-314329GS
...
47
CLIP BS-197355GS
...
48
KIT, Manual ACC BS-706831
...
48-1
TRANSFORMER BS-208106GS
...
48-2
SCREW, Bonding, 1/4-20 X 2" BS-84007446
...
49
SCREW BS-315108GS
...
50
BACK PANEL BS-313885GS
...
51
CONTACTOR BS-314866GS
...
53
WIRE BS-314322GS
...
55
WIRE BS-314324GS
...
--
DECAL, Power Delay Notice (Optional Accessory) BS-317609GS
...
--
KIT, Circuit Breaker (Optional Accessory) BS-6310
...
...
...
