071045-02 Briggs and Stratton Transfer System 100 Amp Automatic Transfer Switch

Model: 071045-02

Save
 Part Not Listed?Part Not Listed?
product name

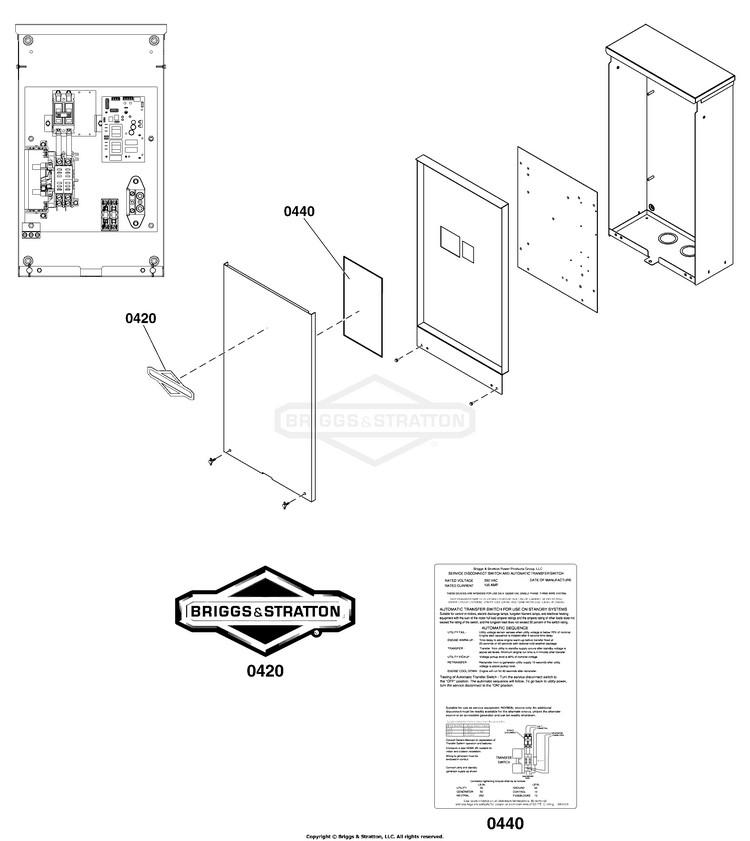

Decals Group - ATS Informational

...
...
0440
DECAL BS-709511

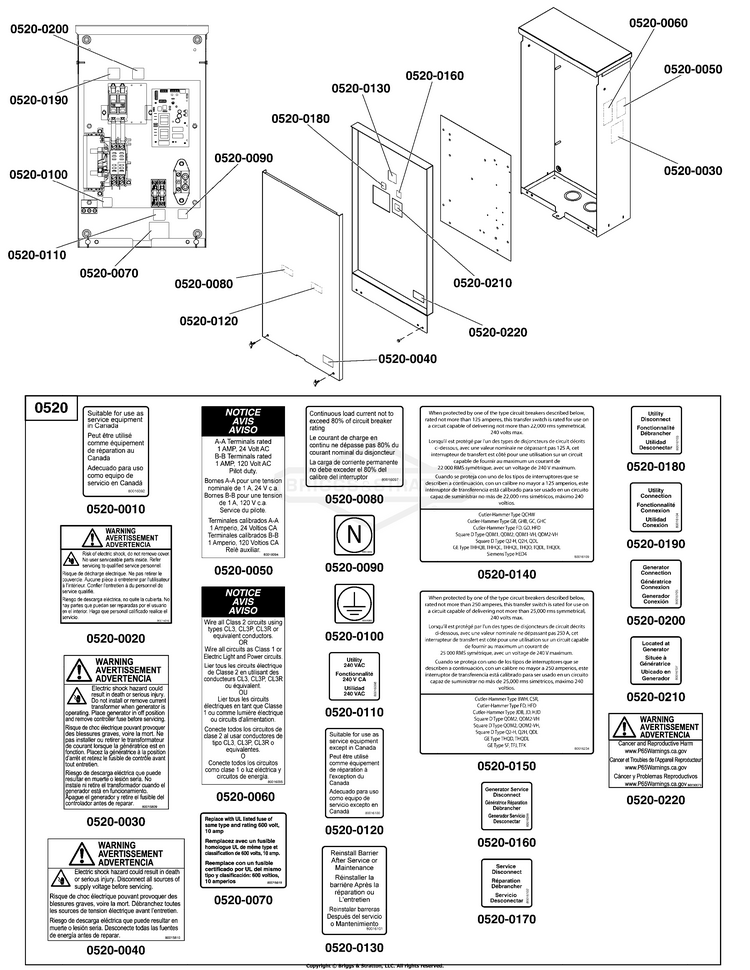

Decals Group - ATS Warning

...
...
0520
DECAL SHEET - WARNINGS (Includes items 0520-0010 thru 0520-0220) BS-770133

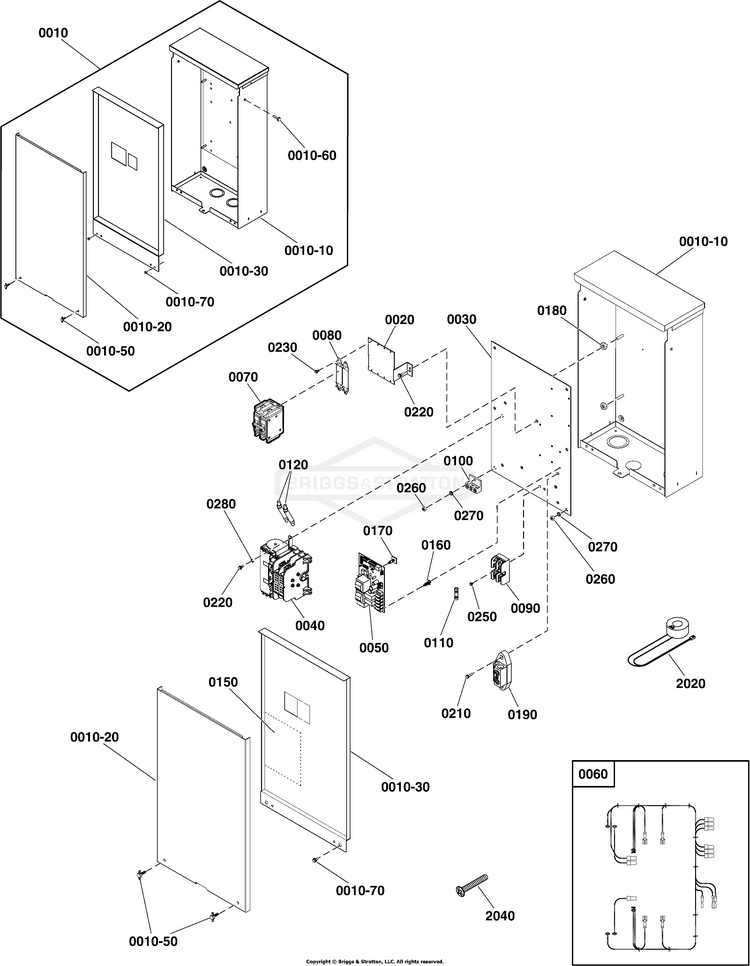

Transfer Switch - Hingeless Enclosure

...
...
0010-50
SCREW BS-315108GS
...
0010-60
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0010-70
SCREW BS-B5763GS
...
0020
BRACKET, Crct Brkr Mntng BS-198129GS
...
0040
CONTACTOR, 100A BS-314867GS
...
0050
BOARD-CIRCUIT BS-771701
...
0060
HARNESS, Wiring, ATS BS-201285GS
...
0070
BREAKER, Circuit, 100A BS-311318GS
...
0080
BRACKET, Mounting / Breaker BS-192770GS
...
0090
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
0100
TERMINAL, GROUND BS-84006973
...
0110
FUSE, 10 Amp 600v BS-205110GS
...
0120
WIRE, Copper BS-193689GS
...
0150
INSULATION, Dead Front BS-193664GS
...
0160
SPACER, PCB Board, 1/2" BS-197979GS
...
0170
SUPPORT, Locking, Crct Brd BS-202841GS
...
0180
NUT, Hex, 3/8-16 BS-22241GS
...
0190
TERMINAL, Neutral BS-192696GS
...
0210
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0220
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
0230
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
0250
SCREW, Hex Head, Trilobular, #6-32 x 3/8 BS-192730GS
...
0260
NUT, Hex, 1/4-20 BS-22127GS
...
0270
WASHER BS-22097GS
...
0280
WASHER BS-23762GS
...
2020
TRANSFORMER BS-208106GS
...
2040
SCREW, Bonding, 1/4-20 X 1 3/4" BS-84007447
...
...
...
