071044-01 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch w/ACCM

Model: 071044-01

Save
 Part Not Listed?Part Not Listed?
product name

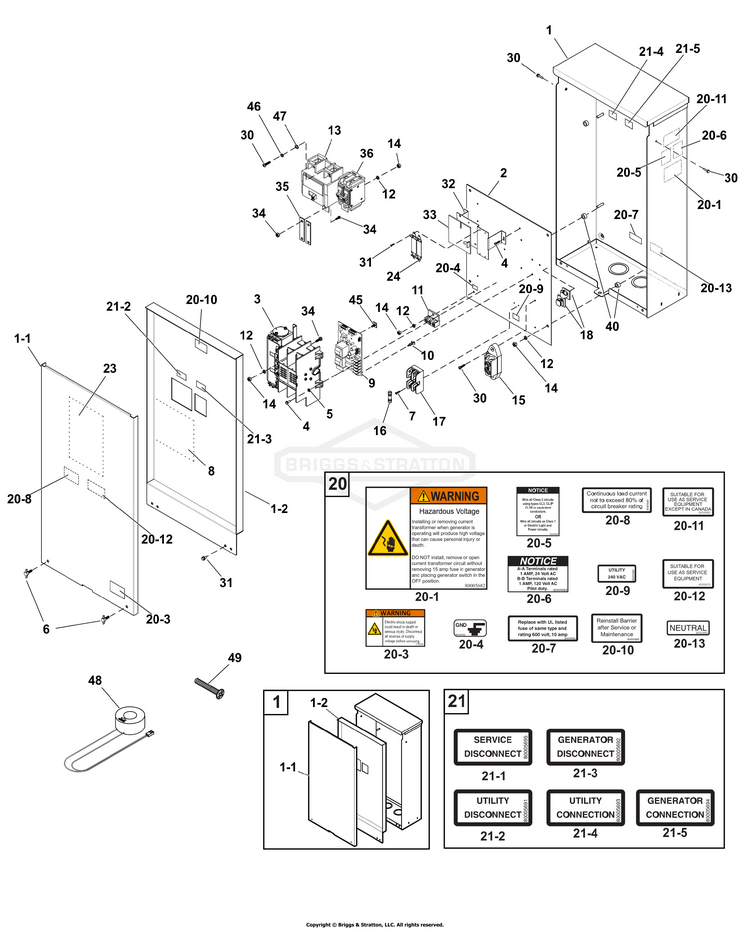

Transfer Switch - Hingeless Enclosure

...
...
1-1
DOOR BS-705953
...
1-2
DEADFRONT BS-705961
...
3
CONTACTOR, 200A BS-315050GS
...
6
SCREW BS-315108GS
...
8
INSULATION, Dead Front BS-193664GS
...
9
BOARD-CIRCUIT BS-771701
...
10
SPACER, PCB Board, 1/2 BS-197979GS
...
11
TERMINAL, GROUND BS-84006973
...
13
BREAKER, Circuit, 200A BS-192065GS
...
15
TERMINAL, Neutral (Incl. Ref. No. 30 and bonding screw) BS-192696GS
...
16
FUSE, 10 Amp BS-205110GS
...
17
HOLDER, Fuse BS-192151GS
...
18
CLIP BS-197355GS
...
20
DECAL SHEET - WARNINGS (Includes Ref. Nos. 20-1, 20-3, 20-4, 20-5, 20-6, 20-7, 20-8, 20-9, 20-10, 20-11 & 20-12) BS-704420
...
21
DECAL SHEET-CONNECTIONS (Includes Ref. Nos. 21-1, 21-2, 21-3, 21-4 & 21-5) BS-705423
...
23
DECAL BS-205061GS
...
24
BRACKET BS-192770GS
...
32
BRACKET BS-201157GS
...
33
INSULATOR, Circuit Breaker BS-192879GS
...
35
BAR-BUS BS-319267GS
...
36
BREAKER, Circuit, 100A BS-311318GS
...
40
NUT, 3/8"-16 BS-22241GS
...
45
STANDOFF BS-202841GS
...
48
TRANSFORMER BS-208106GS
...
49
SCREW, Bonding, 1/4-20 X 1 3/4" BS-84007447
...
--
CABLE, Transfer Switch to Generator Circuit Breaker, 4 AWG Black (Not Illustrated) BS-704240
...
--
HARNESS, Wiring ATS (Not Illustrated) BS-201285GS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
