071036-02 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch

Model: 071036-02

Save
 Part Not Listed?Part Not Listed?
product name

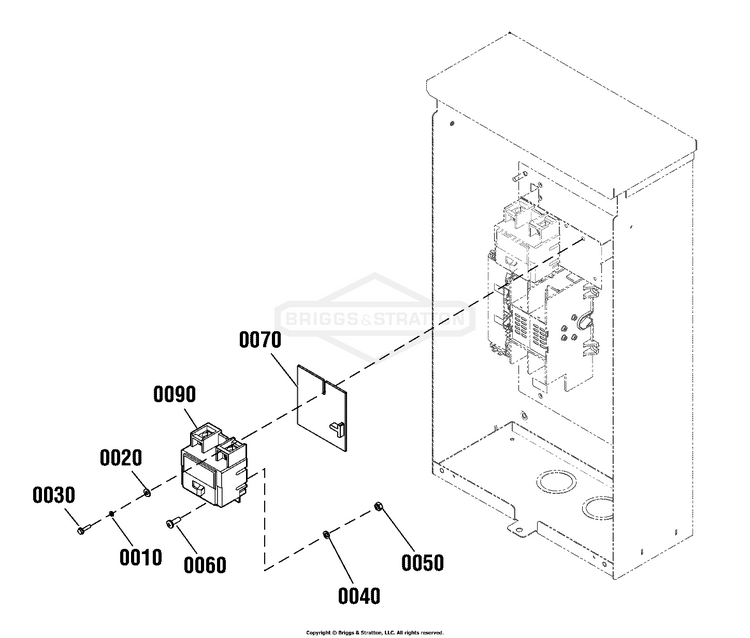

Optional Accessory - Circuit Breaker Group

...
...
0070
INSULATION BS-192879GS
...
0090
BREAKER, Circuit, 200A (Connect to Generator Power) BS-318878GS
...
0120
WIRE (Not Illustrated) BS-706843
...
0130
WIRE (Not Illustrated) BS-706844

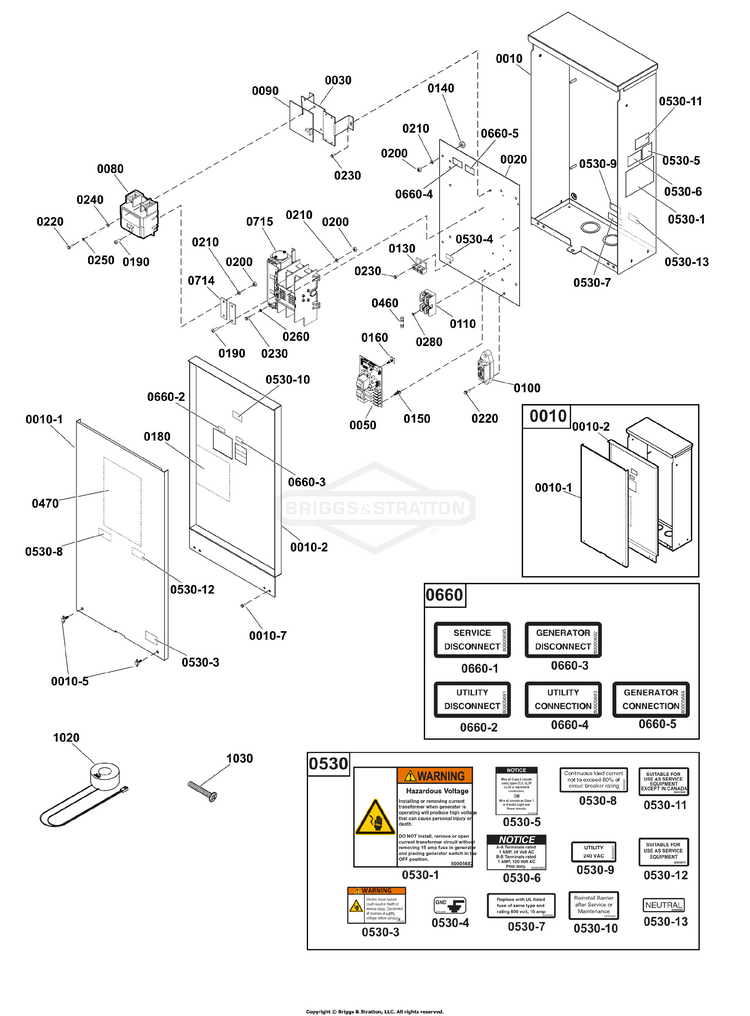

Transfer Switch - Hingeless Enclosure

...
...
0010-1
DOOR BS-705952
...
0010-2
DEADFRONT BS-706783
...
0010-5
SCREW BS-315108GS
...
0010-7
SCREW BS-B5763GS
...
0030
BRACKET BS-204428GS
...
0050
BOARD-CIRCUIT BS-771701
...
0080
BREAKER, Circuit, 200A (Connect to Utility Power) BS-192065GS
...
0090
INSULATOR BS-192879GS
...
0100
TERMINAL (Incl. Ref. No. 0220 and bonding screw) BS-192696GS
...
0110
HOLDER, Fuse BS-192151GS
...
0130
TERMINAL, GROUND BS-84006973
...
0140
NUT, 3/8-16 BS-22241GS
...
0150
SPACER BS-197979GS
...
0160
STANDOFF BS-202841GS
...
0180
INSULATION BS-193664GS
...
0460
FUSE BS-205110GS
...
0470
DECAL BS-709510
...
0530
DECAL SHEET- WARNINGS (Includes all parts shown in box) BS-704420
...
0660
DECAL SHEET - CONNECTIONS (Includes all parts shown in box) BS-705423
...
0714
BAR-BUS BS-319267GS
...
0715
CONTACTOR, 200A BS-315050GS
...
1020
TRANSFORMER (Not Illustrated) BS-208106GS
...
1030
SCREW, Bonding, 1/4-20 X 1 3/4" BS-84007447
...
--
DECAL, Power Delay Notice (Optional Accessory) BS-317609GS
...
--
KIT, Circuit Breaker (Optional Accessory) BS-6308
...
...
...
