071035-02 Briggs and Stratton Transfer System Power Management System

Model: 071035-02

Save
 Part Not Listed?Part Not Listed?
product name

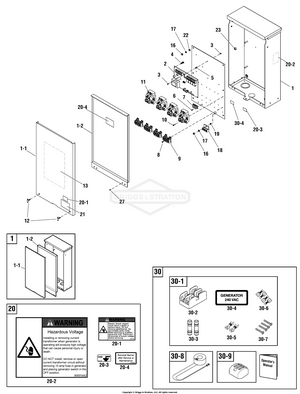

Power Management System - Hingeless Enclosure

...
...
1-1
DOOR BS-705947
...
1-2
DEADFRONT BS-705957
...
2
BOARD, Load Control Center Relay BS-207937GS
...
4
SPACER, PCB Bard, 1/2" BS-197979GS
...
5
SPACER BS-208541GS
...
7
TERMINAL STRIP BS-208554GS
...
9
TERMINAL BLOCK ASSEMBLY BS-209484GS
...
10
PPHS, Trilobular, #8-32 x 3/8 BS-208587GS
...
11
RELAY BS-208397GS
...
12
SCREW BS-315108GS
...
13
DECAL, Wiring BS-207983GS
...
18
TERMINAL, GROUND BS-84006973
...
20
DECAL SHEET-WARNINGS (Includes Ref. Nos. 20-1, 20-2, 20-3 & 20-4) BS-704420
...
21
DECAL, Shock BS-198655GS
...
23
NUT, 3/8"-16 BS-22241GS
...
27
SCREW BS-B5763GS
...
30
KIT, Manual (Includes Ref. Nos. 30-1, 30-8, 30-9 & Manual) BS-208556GS
...
30-1
KIT, Fuse (Includes Ref. Nos. 30-2, 30-3, 30-4, 30-5, 30-6 & 30-7) BS-209097GS
...
30-2
FUSE HOLDER BS-192151GS
...
30-3
FUSE BS-205110GS
...
30-4
DECAL, Generator BS-209096GS
...
30-8
TRANSFORMER BS-208106GS
...
30-9
BLOCK, Terminal w/Levers BS-197956GS
...
...
...
