0580-0 Briggs and Stratton Pressure Washer 1,900 CP

Model: 0580-0

Save
 Part Not Listed?Part Not Listed?
product name

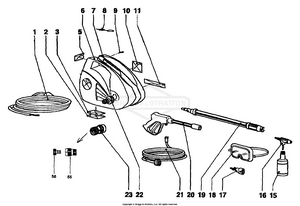

Pressure Washer

...
...
1
Power Cord (Electric) BS-14599614
...
2
Overlam Data PL30x60 BS-99736
...
3
Data Decal 0580 P-W BS-97938
...
5
Obsolete Decal BS-~NSP
...
6
ENCLSR, INLET BS-11899614GS
...
7
Outlet Enclosure BS-11799614
...
8
ROD, Cleaning BS-96869GS
...
9
Screw TC-Torx 3.9x25 BS-16799614
...
10
Obsolete Decal BS-~NSP
...
11
ASSY, MOTOR, FELCHAR BS-B1514GS
...
15
FOAMER, W\HANGER HOLE BS-B1935GS
...
16
Reinforced Foam Lance BS-16499614
...
17
ADPTR, GF, ROT, LAVORWH BS-98972GS
...
19
WAND, FIXED HI, BAY, LAVOR BS-98952GS
...
20
GUN, 2058PSI, 1/4, BAY, LAVOR BS-98951GS
...
21
HOSE, 1/4 X 25 FT, M22, 1/4, 2000PSI BS-95604AGS
...
22
Coupling M.3438 BS-16599614
...
23
Rapid Stop Connection F.30 BS-16699614
...
55
Garden Hose Quick Connect BS-7175187GS
...
56
QC, FML, M22 BS-96017GS

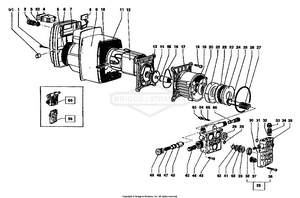

Pump & Motor

...
...
1
Screw, TC Torx BS-12599614
...
2
Pump Part BS-14699614
...
3
Bushing (Anti-Tear) BS-12499614
...
4
SWITCH BS-10299614GS
...
5
Motor Fan Inlet Gskt BS-12799614
...
6
Univ Motor Cover BS-11999614
...
7
T-Switch O-Ring BS-12099614
...
8
Cable .75 L390 0580 BS-14799614
...
9
Air Cleaner Hsg BS-12199614
...
10
Motor Outlet Gasket BS-12299614
...
11
Motor Brush BS-12899614
...
12
Motor Sub-Asy W/Gear BS-12399614
...
13
Ball Bearing BS-12999614
...
14
Gear BS-13099614
...
15
Pump Shaft BS-13199614
...
16
Flange Seal BS-13299614
...
17
Pump Flange BS-13499614
...
18
Screw (M6x25) BS-13399614
...
20
Radial Bearing BS-13699614
...
21
Inclined Plate BS-13799614
...
22
Bearing Disk Axial 0580 BS-14899614
...
23
Needle Roller Cage 0580 BS-14999614
...
24
Thrust Shoe D.65 0580 BS-15099614
...
25
Assembly Bolt/Piston D.14 BS-15199614
...
26
O-Ring Gasket 0580 BS-15299614
...
27
Piston Recall Spring D.14 BS-15399614
...
28
Oil Sealing Ring Diam.14x22x5 BS-15499614
...
29
O-Ring 11,1X1,76 0580 BS-15599614
...
30
Tapered 1/8" Cap 0580 BS-15699614
...
31
O-Ring Gasket 0580 BS-15799614
...
32
O-RING BS-11599614GS
...
33
PLUG, VLV, OUTLET BS-11299614GS
...
34
VLV, SUCTION BS-11499614GS
...
35
Manifold BS-14399614
...
36
SCREW BS-14499614GS
...
37
Complete Suction Valve BS-15899614
...
38
RING, SEAL, WATER BS-10999614GS
...
40
SEAL, OIL RING BS-10799614GS
...
41
SPPRT, RING, SEALING BS-10899614GS
...
43
Screw M6x30 0580 BS-15999614
...
44
BODY, PSTN, GDE W/OINJ BS-13899614GS
...
45
FILTER, INLET, WATER BS-10699614GS
...
46
Valve Body 3.75-2.26C BS-16099614
...
47
Assy Piston D.14 X Valve BS-16199614
...
48
Valve Spring BS-14099614
...
49
O-RING BS-10399614GS
...
59
Head W/O Indicator BS-16299614
...
60
Piston Body Guide D.14 BS-16399614
...
61
PAD, SPPRT BS-12699614GS
...
62
Clear Switch Cover BS-10199614
...
...
...
