0485-0 Briggs and Stratton Pressure Washer 6,300 CP

Model: 0485-0

Save
Part Not Listed?Part Not Listed?
product name

Engine Trim Specifications

...
...
1
Engine, Taper Shaft BS-90507

...
2
Flywheel Assembly BS-77182T

...
3
Ignition Coil Assembly BS-81675

...
4
M16-1.5 Hex Nut BS-81810

...
5
Conical Washer BS-83312

...
6
Blower Housing BS-90695A

...
7
Carburetor Assembly BS-95948

...
8
Carb./Manifold Gasket BS-78631

...
9
HS Intake Manifold BS-90948

...
10
Air Cleaner Cover BS-78608

...
11
FILTER,Air BS-78601GS

...
12
Air Filter Pre-Cleaner BS-78602

...
13
Recoil Cup BS-83015

...
14
Recoil Assembly BS-81671

...
15
Manifold/Head Gasket BS-90051

...
16
Carburetor/Air Cleaner Gasket BS-91846

...
17
Bolt - Air Cleaner Cover BS-78609

...
18
BOLT, Carriage, Short Neck, 1/4-20 x 1-3/8 BS-7090947YP

...
19
4 x 19 Woodruff Key BS-82774

...
20
Governor Lever Assembly BS-86962

...
21
Governor Spring BS-78604

...
22
Governor Adjusting Screw BS-83502

...
24
Idle Control Coil BS-83782

...
25
Anti-Lash Extension Spring BS-86037

...
26
Governor Rod BS-86384

...
27
Gov. Adjust Bracket BS-83781

...
28
Carburetor Mtng. Bolt BS-78643

...
29
M5-0.8 Lock Nut BS-83503

...
30
Bottom Wrapper BS-89739

...
31
Air Cleaner Base BS-78607

...
32
Blower Housing Back Plate BS-78651C

...
33

...
34
Breather Canal Cover BS-80303

...
35
PLUG, SPARK BS-84007216

...
36
M6-1.0 x 10mm Bolt BS-45756

...
37
SCREW, M6-1 x 12 w/Lock Washer 2 req. BS-66476GS

...
38
M6-1.0 x 30mm Capscrew with lock washer BS-80316

...
39
No. 8 x 3/8" Plastite Screw BS-59635

...
40
Choke Lever Knob BS-83504

...
43
M6-1.0 x 30mm Taptite Bolt BS-82981

...
44
SWITCH, Run - Stop BS-78653GS

...
45
NUT, M6 BS-49813GS


...
47
Screw, M8 1.25 x 15, Taptite BS-83512GS

...
48
Low Oil Indicator LED BS-85272

...
49
4 psi Oil Pressure Switch BS-77667

...
51
LOS Engine Decal BS-84195

...
56
Carburetor Wear Washer BS-85953

...
57
FITTING 3/8 NPT MALE BS-7091848YP

...
58
M6-1.0 x 20mm Screw BS-92978

...
61
ASSY, MDLTR/HRNSS, LOS Optional BS-87221AGS

...
62
By-pass Adaptor Optional BS-88758

...
64
Expansion Plug BS-94820

...
68
JAM-M8-1.25 Hex Nut BS-66311

...
69

...
70
Fuel Tank Bracket BS-95213

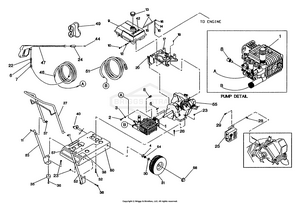

Pressure Washer

...

...
2
5/16"-24 x 3/4" Hex Head Capscrew BS-22336

...
3
WASHER, Lock BS-92479GS

...
4
GEARBOX BS-84009471

...
5
KEY, 3/16X1/4 HARDEND BS-89241GS

...
6
QC, HOSE/GUN BS-95459GS

...
7
Quick Disconnect - hose-to-gun BS-95458

...
8
VLV, THERMAL RELIEF BS-B3213GS

...
9
Fuel Tank BS-94994A

...
10
M6-1.0 x 21mm Bolt BS-96001

...
11
BOLT, Carriage BS-31669GS

...
12
BSHNG, TANK BS-96002GS

...
13
CAP, Fuel Tank BS-846987

...
14
Hose Clamp BS-48031C

...
15
1/4" I.D. Fuel Line BS-30340

...
16
VALVE-FUEL SHUT OFF BS-698180

...
17
Fuel Tank Cradle BS-95214

...
19
NUT-M6 FLANGE BS-52857GS

...
20
Screw, M8 1.25 x 15, Taptite BS-83512GS

...
22
SWIVEL, GUN, BRASS BS-96622GS

...
23
NUT, Locking Hex M8 - 1.25 BS-52858GS

...
24
NZZL, HI-LO, 1.20, M22, MV BS-95587AGS

...
25
KIT, MFFLR & BRCKT, SRV BS-195002GS

...
26
CAP, OIL/DIP, GENERAL BS-98758GS

...
27

...
28
GASKET, Exhaust BS-89476GS

...
29
M8 x 20mm Socket Head Capscrew BS-40976

...
30
WASHER, Flat BS-49808GS

...
31
ASSY., Wheel & Tire 10" BS-88521GS

...
32
HHCS, M8 - 1.25 x 35 BS-39414GS

...
35
MOUNT, Rubber Donut BS-87841GS

...
36
HHCS, M8 x 20 BS-39253GS

...
37
KNOB, Handle BS-97178GS

...
38
Decal - Important BS-96414

...
40
AXLE, 12.7 X 106, ZNC PLT BS-93728AGS

...
41
DECAL, CAUTION, INSTR BS-96415GS

...
42
DECAL, DANGER, SPANISH BS-96685GS

...
44
NOZZLE, Replacement BS-92661GS

...
46
KIT, RPLCMNT, HOSE-CONN BS-189532GS

...
47
Spray Gun and Wand Assembly BS-91104

...
49
GOGGLES BS-87815GS

...
50
Mounting Base BS-96963

...
51
TUBE, FILTER, GNRL BS-92550GS

...
52
Right Tube/Support Assembly BS-98698A

...
53
Left Tube/Support Assembly BS-98698B


...
55

...
56
PUSHNUT BS-194062GS

...
57
DECAL, LOGO, 6300CP GNRC BS-97104GS
...
...
...
