040297B-0 Briggs and Stratton 13,500 Watt Home Generator System

Model: 040297B-0

Save
 Part Not Listed?Part Not Listed?
product name

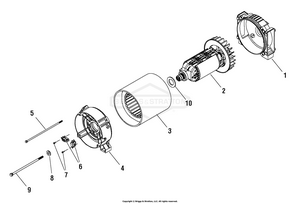

Alternator Group

...
...
1
ADAPTER, Engine BS-195235GS
...
2
ROTOR BS-706426
...
3
STATOR BS-206042GS
...
4
CARRIER, Bearing BS-195234GS
...
5
SCREW BS-315199GS
...
6
ASSEMBLY, Brush BS-66386GS
...
7
TAPTITE BS-66849GS
...
8
WASHER BS-203200GS
...
9
BOLT BS-315204GS
...
10
O-RING BS-199888GS

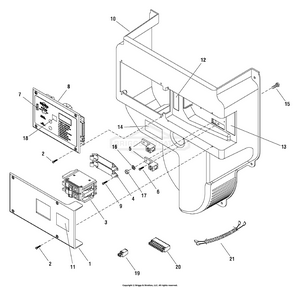

Control Panel Group

...
...
1
COVER BS-205929GS
...
2
PLASTITE BS-B3311GS
...
3
BREAKER, Circuit, 70A BS-311317GS
...
4
BRACKET BS-192770GS
...
5
LUG BS-199011GS
...
6
PLASTITE BS-191991GS
...
7
FUSE, Auto Type, 15 Amp BS-84010838
...
8
PANEL, Control BS-311353GS
...
9
SCREW BS-197492GS
...
10
DUCT BS-205928GS
...
11
DECAL BS-206821GS
...
12
DECAL BS-206578GS
...
13
DECAL BS-206842GS
...
14
DECAL BS-206820GS
...
18
DECAL BS-207004GS
...
19
CONNECTOR, 2 Pin BS-198515GS
...
20
CONNECTOR, 10 Pin BS-198516GS
...
21
HARNESS, Wiring BS-198517GS
...
--
HARNESS, Wiring (Not Illustrated) BS-202882GS
...
--
HARNESS, AVR (Not Illustrated) BS-203020GS

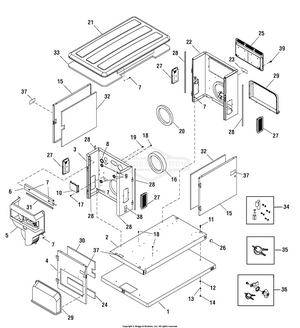

Enclosure Group

...
...
1
PAD, Mounting BS-197275GS
...
2
BASE BS-U313049GS
...
3
BULKHEAD-ENGINE BS-209472GS
...
4
DOOR BS-206942GS
...
5
DUCT BS-205928GS
...
6
SUPPORT, Rail BS-198993GS
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
8
BUSHING, Snap BS-203015GS
...
9
BUSHING, Snap BS-197493GS
...
10
REGULATOR, Voltage BS-707157
...
15
DOOR BS-206941GS
...
16
SEAL BS-770041
...
17
TAPTITE BS-192778GS
...
18
MOUNT, Tiewrap BS-195733GS
...
19
CLIP BS-192940GS
...
20
SEAL-FOAM BS-770424
...
21
ROOF BS-198893GS
...
22
BULKHEAD, Alternator BS-206841GS
...
23
DECAL BS-206863GS
...
24
COVER, Air Intake BS-203303GS
...
25
VENT BS-198926GS
...
26
PLUG, Hole BS-198460GS
...
27
VENT BS-198927GS
...
28
SEAL, Foam BS-198888GS
...
29
COVER, Air Intake BS-194694GS
...
30
INSULATION BS-203302GS
...
31
SEAL, Foam BS-197312GS
...
32
INSULATION BS-196397GS
...
33
INSULATION BS-195597GS
...
34
HINGE BS-198890GS
...
35
KEY, Latch BS-207652GS
...
36
LATCH BS-204700GS
...
37
DECAL BS-206866GS
...
38
DECAL BS-203844GS
...
39
SCREW BS-313085GS

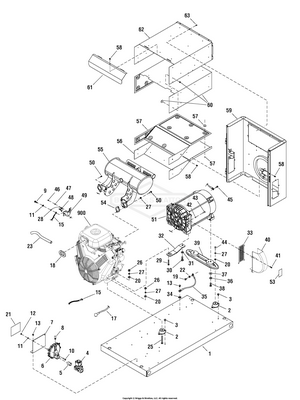

Main Unit Group

...
...
1
BASE BS-U313049GS
...
2
MOUNT, Vibration BS-187594GS
...
3
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS
...
4
SOLENOID, Gas Fuel BS-194683GS
...
5
FITTING BS-194829GS
...
6
REGULATOR, NG/LPG BS-194830GS
...
7
BRACKET BS-313562GS
...
8
FITTING BS-202382GS
...
13
SCREW, HEX, 1/4-20X.5 BS-704130
...
15
CABLE, Battery, Black BS-185939UGS
...
--
DECAL BS-206609GS
...
17
CABLE, Battery, Red BS-198593DGS
...
--
DECAL BS-206609GS
...
18
SEAL-FOAM BS-770423
...
19
SCREW BS-B4995GS
...
21
DECAL BS-206865GS
...
23
HOSE, Oil Drain BS-1723165SM
...
28
WIRE BS-186790CGS
...
32
SUPPORT, Engine BS-B194685GS
...
33
SCREEN BS-202922GS
...
35
WIRE BS-185939WGS
...
39
SUPPORT, Alternator BS-B198896GS
...
40
DUCT BS-202761GS
...
45
SCREW, HEX, 1/4-20X.5 BS-704130
...
48
SWITCH, Temp BS-204426GS
...
49
PLATE, Temp Switch BS-313561GS
...
50
SCREW BS-846149
...
53
DECAL BS-206864GS
...
54
GASKET BS-809872
...
55
MUFFLER BS-202885GS
...
56
BASE BS-202884GS
...
57
INSULATION BS-203533GS
...
58
CRIMPTITE BS-56893GS
...
59
BULKHEAD, Alternator BS-202988GS
...
60
INSULATION BS-203534GS
...
61
COLLECTOR BS-194682GS
...
62
BOX, Muiffler Top BS-202883GS
...
63
SCREW BS-192445GS
...
--
MANUAL, Installation (Not Illustrated) BS-314611GS
...
--
MANUAL, Operator (Not Illustrated) BS-208954GS
...
--
MANUAL, Engine (Not Illustrated) BS-279774TRI
...
--
KIT, Manual ACC (Not Illustrated) BS-315191GS
...
--
PAINT, Touch Up, Gray (Not Illustrated) BS-198810GS
...
--
PAINT, Touch Up, Silver (Not Illustrated) BS-198811GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
PLATE, Cover (Not Illustrated) BS-207966GS
...
--
KIT, Decal (Not Illustrated) BS-203434GS
...
--
FILTER, A/C Cartridge (Not Illustrated) BS-841856
...
--
FILTER, Precleaner (Not Illustrated) BS-692520
...
--
FILTER, Oil (Not Illustrated) BS-842921
...
--
PAINT, Spray, Gray (Optional Accessory) BS-199474GS
...
--
PAINT, Spray, Silver (Optional Accessory) BS-199475GS
...
--
ACC, KIT, MAINTENANCE, 17-26000 (Optional Accessory) BS-6872
...
--
KIT, Cold Weather (Includes Battery & Oil Warmers) (Optional Accessory) BS-6030
...
...
...
