product name

030213-0 Briggs and Stratton Portable Generator 2,800 Watt ProMax

Model: 030213-0

Save
Part Not Listed?Part Not Listed?
product name

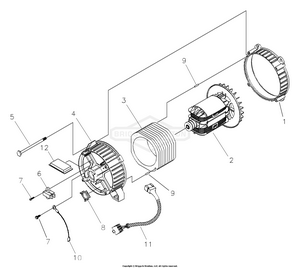

Alternator (196826)

...
...
1
ADAPTER, Alternator BS-209599GS

...
2

...
3

...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS

...
5
HHCS, M6 - 1.0 x 95 SEMS BS-86308JGS

...
6
ASSY, Holder, Brush BS-66386GS

...
7
TAPTITE, M5 - 0.8 x 16 BS-66849GS

...
8
RECEPTACLE, 6 pin BS-22694GS

...
9
PIN, Roll, 4mm x 10 BS-81917GS

...
10
ASSY,Wire, Ground BS-193428AGS

...
11
HARNESS,Wire, Power BS-190356GS

...
12
BOARD, Circuit, System Control BS-205858GS

...

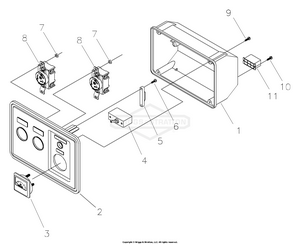

Control Panel (196929)

...
...
1
BACK PANEL BS-188890GS

...
2
PANEL, Control BS-195783GS

...
3
METER,Volt BS-98242GS

...
4
BREAKER, Circuit, 15A BS-195968BGS

...
5
BAR, Retaining, Circuit Breaker BS-196952GS

...
8
OUTLET, 230V, 20A Locking BS-195969GS

...
9
SCREW,Tapping, 3.5 x 14 BS-192241GS

...
10
SCREW,Tapping, STC 3 x 18 BS-82308GS

...
11
HOUSING, Receptacle BS-22694GS

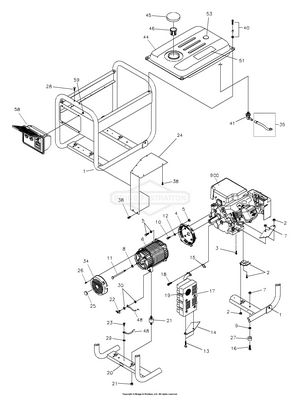

Main Unit (196825)

...
...
1

...
2
KIT, Mount,Vibartion 45° BS-197567GS

...
4
HOUSING, Engine Adapter BS-186058AGS

...
5
KIT, Hrdwr, Mounting Adapter BS-194151GS

...
6
ASSY,Alternator See Alternator" BS-~NSP

...
7
NUT, M8 Flange Serrated BS-67989GS

...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS

...
9

...
11
HHCS, 5/16-24 x 7-3/8 BS-99383GS

...
13
HHCS, M6 - 1.0 x 12 w/ LW BS-66476GS

...
14
BRACKET, Muffler BS-191785GS

...
15
GASKET-EXHAUST BS-692237

...
17
MUFFLER BS-88301GS

...
19
SCREEN, Spark Arrest BS-3083GS

...
20
DECAL, Ground BS-B4986GS

...
21
MOUNT-VIBRATION BS-194153GS

...
22
SCREW,Wing M6 1.0 x 16 BS-86494GS

...
23

...
24
SHIELD, Heat BS-197601GS

...

...
26
TAPTITE, M5-0.8 x 10 BS-74908GS

...
27
MOUNT,Vibration BS-87841GS

...
28
CLIP,Tree BS-B1797GS

...
34
COVER, Bearing Carrier BS-195422GS

...
35
KIT, Fuel Hose w/ Clamps BS-197619GS

...
38
CRIMPTITE, 10-24 x 1/2 BS-56893GS

...
40
KIT, Fuel Tank Hardware BS-197618GS

...
41
VALVE, Fuel BS-310574GS

...
44
ASSY,Tank, Fuel (Includes Items 41, 45, 46, 51 & 53) BS-197620GS

...
45
CAP, Fuel,Vented BS-189135GS

...
46
STRAINER,Tank Fuel BS-197499GS

...
48
WIRE, Ground BS-195373GS

...
51
DECAL,Warning BS-197157GS

...
53
GAUGE, Fuel BS-189136GS

...
58
ASSY, Control Panel See "Control Panel" BS-195782GS

...
59
PALNUT, 3/16 BS-189164GS

...
MANUAL, Engine Not Illustrated BS-MS6737

...
MANUAL, Owners, CHN Not Illustrated BS-196761GS

...
MANUAL, Owners, English Not Illustrated BS-196978GS

...
KIT, Decals Service Not Illustrated BS-197621GS

...
HARNESS,Wire, Power Gen Not Illustrated BS-190356GS
...
...
...
