030212-0 Briggs and Stratton Portable Generator 2,500 Watt ProMax

Model: 030212-0

Save
 Part Not Listed?Part Not Listed?

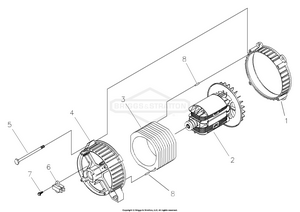

product name

Alternator (196954)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-195910GS
...
3
STATOR BS-195909AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 85 SEMS BS-86308DGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
TAPTITE, M5 - 0.8 x 16 BS-66849GS
...
8
PIN, Roll, 4mm x 10 BS-81917GS
...
xx
O-Ring BS-189197GS

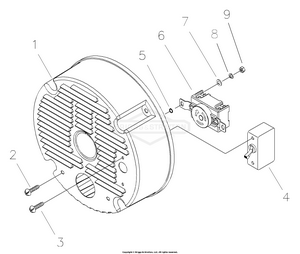

Control Panel (196953)

...
...
1
PANEL, Control BS-B195781GS
...
3
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
4
BREAKER, Circuit, Magnetic, 10A BS-195968AGS
...
6
OUTLET, 230V, 20A Locking BS-195969GS

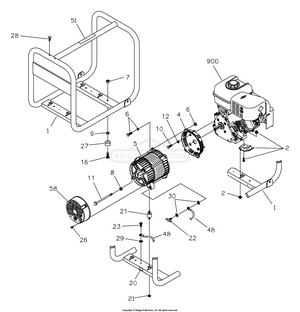

Main Unit (196966)

...
...
1
ASSY, Cradle BS-B196757GS
...
2
KIT,Vibration Mount BS-197567GS
...
4
HOUSING, Engine Adaptor BS-186058AGS
...
5
ASSY,Alternator See Alternator BS-~NSP
...
6
KIT, Hardware Mounting Adapter BS-194151GS
...
7
NUT, M8 Flange Serrated BS-67989GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
9
SPACER BS-193588GS
...
11
HHCS, 5/16" - 24 x 6.85 BS-187365GGS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing M6 - 1 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
26
TAPTITE, M5 .8 x 20mm BS-66849AGS
...
27
MOUNT,Vibration BS-87841GS
...
28
CLIP,Tree BS-B1797GS
...
48
WIRE, Ground BS-195373GS
...
51
DECAL,Warning BS-197157GS
...
58
ASSY, Control Panel See "Control Panel" BS-195780GS
...
MANUAL, Owners, CHN Not Illustrated BS-196761GS
...
MANUAL, Owners, English Not Illustrated BS-196978GS
...
MANUAL, Engine, B&S Not Illustrated BS-MS6737
...
KIT, Decal Srv Not Illustrated BS-197604GS
...
...
...
