020302-0 Briggs and Stratton Pressure Washer 2,800 PSI

Model: 020302-0

Save
 Part Not Listed?Part Not Listed?
product name

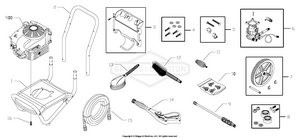

Main Unit

...
...
1
ASSY, Base BS-201769GS
...
2
HANDLE BS-199110ZGS
...
3
KIT, Bllbrd Assy, w/Decals & Clips BS-202246GS
...
Clips, Tree BS-195964GS
...
4
KIT, Pump Mounting Hardware BS-192131GS
...
5
KIT, Handle Connector BS-B2203GS
...
6
Assy, Pump, Complete BS-206376GS
...
Key BS-23139DGS
...
VALVE, Thermal Relief BS-208673GS
...
7
KIT, Wheel BS-196439GS
...
Axle BS-195454GS
...
RETAINER, RING, 1/2 BS-703976
...
8
KIT, Vibration Mount BS-192310GS
...
9
EXTENSION, QC BS-207796GS
...
10
KIT, Nozzle BS-202514GS
...
Nozzle, Plastic, Soap BS-198841GS
...
Nozzle, QC, Red BS-195983WGS
...
NOZZLE-QC YELLOW BS-195983XGS
...
Nozzle, QC White BS-195983ZGS
...
11
NOZZLE, Turbo BS-194236CGS
...
12
BRUSH, Utility BS-196534GS
...
13
BRUSH, Rotating BS-199298GS
...
14
GUN BS-704312
...
15
HOSE ASSEMBLY BS-84006753
...
16
TAPTITE BS-75246GS
...
900
ENGINE Contact Engine Manufacturer BS-NPS
...
MANUAL, Operator's Not Illustrated BS-203783GS
...
TAG-WARNING Not Illustrated BS-705752
...
DECAL, Eng Not Illustrated BS-202043GS
...
DECAL, Recoil Not Illustrated BS-200658GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
GOGGLES Not Illustrated BS-87815GS
...
KIT-O-RING Optional Accessory BS-705001
...
PUMP SAVER Optional Accessory BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory - Not Included) BS-6059
...
--
PERFECT MIX CONCRETE BRICK & TILE CLEANER (Optional Accessory - Not Included) BS-6060

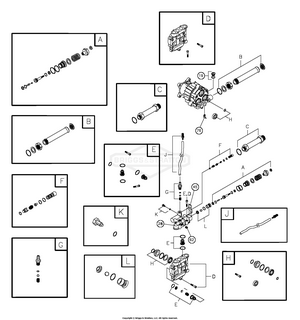

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ANODIZED Service kits include all parts shown within the box. BS-190588GS
...
C
KIT, OUTLET, ANODIZED Service kits include all parts shown within the box. BS-190589GS
...
D
KIT, HEAD BRASS Service kits include all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
OIL BOTTLE Not Illustrated BS-190585GS
...
FILTER, Inlet Not Illustrated BS-B2384GS
...
FILTER, Inlet, Bag of 10 Not Illustrated BS-186452GS
...
...
...
