020244-0 Briggs and Stratton Pressure Washer 2,050 PSI CleanShot

Model: 020244-0

Save
 Part Not Listed?Part Not Listed?
product name

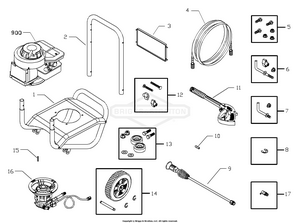

Main Unit

...
...
1
BASE BS-192419GS
...
2
HANDLE BS-B194030GS
...
3
ASSY, BILLBOARD BS-195953GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
KIT, Pump Mounting Hardware BS-192525GS
...
6
KIT, Hook, Handle BS-194264GS
...
7
KIT, Hook, Base BS-192309GS
...
8
RETAINER, RING, 1/2 BS-703976
...
9
WAND-ADJUSTABLE BS-205015CGS
...
10
ORFICE BS-193609DGS
...
11
GUN BS-84003228
...
12
KIT, Handle Connector BS-B2203GS
...
13
KIT,Vibration Mount BS-192310GS
...
14
KIT,Wheel BS-194255GS
...
15
KEY BS-23139GS
...
16
Assy, Pump (see "Pump") BS-206383GS
...
17
VALVE, Thermal Relief BS-208673GS
...
MANUAL, Owners Not Illustrated BS-195950GS
...
MANUAL, Operator's Not Illustrated BS-277038WST
...
TAG-WARNING Not Illustrated BS-705752
...
DECAL,Warning Not Illustrated BS-192755GS
...
BOTTLE, Oil Not Illustrated BS-100005

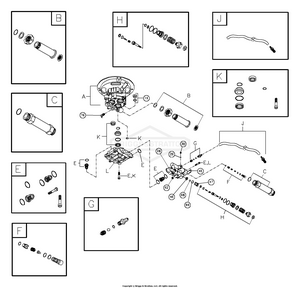

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
45
PIN BS-190578GS
...
46
VALVE, Seat Plate, Plastic BS-190629GS
...
47
VALVE, Seat, Plastic BS-190630GS
...
62
CAP, 1/8 BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
ASSY, CASE, PISTON Service kit includes all parts shown within the box. BS-~NSP
...
B
KIT,WATER INLET,ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kit includes all parts shown within the box. BS-190628GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit includes all parts shown within the box. BS-190636GS
...
L
KIT, HEAD ALUM Service kit includes all parts shown within the box. BS-~NSP
...
OIL BOTTLE Not Illustrated BS-190586GS
...
...
...
