020224-0 Briggs and Stratton Pressure Washer 2,700 PSI

Model: 020224-0

Save
 Part Not Listed?Part Not Listed?
product name

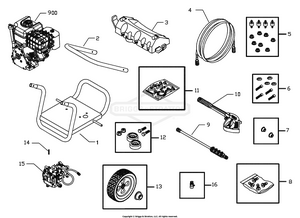

Main Unit

...
...
1
BASE BS-M195214GS
...
2
HANDLE BS-M187602GS
...
3
BILLBOARD BS-187606GS
...
4
HOSE-PRESSURE BS-206192GS
...
5
KIT, Engine Mounting Hardware BS-192134GS
...
6
KIT, Pump Mounting Hardware BS-192131GS
...
7
PUSHNUT BS-192125GS
...
8
KIT, Spray Tips BS-B5646GS
...
9
ASSY, Extension BS-192199GS
...
10
GUN BS-84003228
...
11
KIT, HNDL, FSTNNG, SRV BS-191429GS
...
12
KIT,Vibration Mount BS-192553GS
...
13
KIT,Wheel BS-192124GS
...
14
KEY BS-23139DGS
...
15
ASSY, Pump (see "Pump") BS-194106GS
...
16
VALVE, Thermal Relief BS-208673GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not Illustrated BS-195259GS
...
MANUAL, Engine Not Illustrated BS-MS6737
...
FITTING, Hose, 1/2" Not Illustrated BS-192014GS
...
FITTING, Hose, 3/4" Not Illustrated BS-192015GS
...
Garden Hose Quick Connect Not Illustrated BS-7175187GS
...
Garden Hose Quick Connect Not Illustrated BS-7175187GS
...
KIT, Decals Not Illustrated BS-195457GS
...
KIT, O-RING MAINT & NZZL CLNNG Not Illustrated BS-191922GS

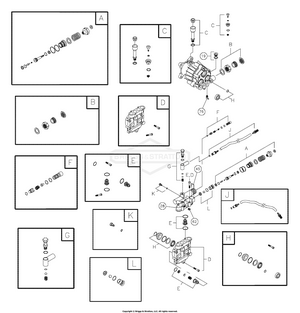

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190673GS
...
45
PIN BS-190578GS
...
62
CAP BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (not shown) BS-190585GS
...
A
KIT, UNLOADER Service kit and include all parts shown within the box. BS-190594GS
...
B
KIT,WATER INLET Service kit and include all parts shown within the box. BS-190670GS
...
C
KIT, BREATHER TUBE Service kit and include all parts shown within the box. BS-190669GS
...
D
KIT, HEAD BRASS Service kit and include all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kit and include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kit and include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit and include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kit and include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kit and include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kit and include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kit and include all parts shown within the box. BS-193972GS
...
...
...
