020222-0 Briggs and Stratton Pressure Washer 1,950 PSI

Model: 020222-0

Save
 Part Not Listed?Part Not Listed?
product name

Main Unit (195060)

...
...
1
Assy, Base w/Mounts BS-J202097GS
...
2
KIT, Pump/Engine Mounting Hardware BS-192308GS
...
3
VALVE, Thermal Relief BS-208673GS
...
4
HOSE ASSEMBLY BS-84006753
...
5A
Assy, Pump (NLA - Order Ref. No. 5B) BS-206383GS
...
5B
KIT-PUMP BS-706385
...
6
WAND-ADJUSTABLE BS-205015CGS
...
7
ORIFICE BS-193609DGS
...
8
GUN BS-84003228
...
10
KEY BS-23139GS
...
12
KIT, Chem Connector 90° w/Barb BS-195175GS
...
--
KIT, Decals BS-195351GS
...
--
MANUAL, Owners BS-195062GS
...
--
MANUAL, Operator's BS-277038WST
...
--
KIT, O-Ring Maintenance BS-191922GS
...
--
Garden Hose Quick Connect BS-7175187GS
...
--
Garden Hose Quick Connect BS-7175187GS

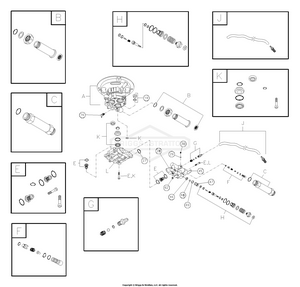

Pump (194216GS)

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
45
PIN BS-190578GS
...
46
VALVE, Seat Plate, Plastic BS-190629GS
...
47
VALVE, Seat, Plastic BS-190630GS
...
62
CAP, 1/8 BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
ASSY, CASE, PISTON Service kit includes all parts shown within the box. BS-~NSP
...
B
KIT,WATER INLET,ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kit includes all parts shown within the box. BS-190628GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit includes all parts shown within the box. BS-190636GS
...
L
KIT, HEAD ALUM Service kit includes all parts shown within the box. BS-~NSP
...
...
...
