020218-0 Briggs and Stratton Pressure Washer 1,950 PSI

Model: 020218-0

Save
 Part Not Listed?Part Not Listed?
product name

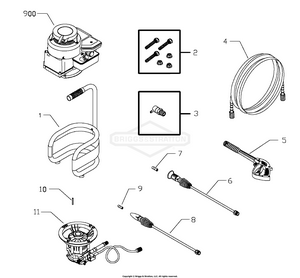

Main Unit

...
...
1
Assy, Base w/Mounts BS-J202097GS
...
2
KIT, Pump/Engine Mounting Hardware BS-192308GS
...
3
VALVE, Thermal Relief BS-208673GS
...
4
HOSE BS-190249GS
...
5
GUN BS-84003228
...
6
ASSY, Wand, Hi-Lo BS-194334DGS
...
7
ORIFICE BS-193609DGS
...
8
WAND-TURBO BS-209318GS
...
9
ORIFICE BS-193611BGS
...
10
KEY BS-23139GS
...
11
ASSY, Pump BS-200200GS
...
900
ENGINE BS-~NSP
...
--
MANUAL, Owner's Not illustrated BS-194883GS
...
--
MANUAL, Operator's Not illustrated BS-277038WST
...
--
GOGGLES Not illustrated BS-87815GS
...
--
BOTTLE, Oil Not illustrated BS-100005
...
--
KIT, Decal Not illustrated BS-195013GS
...
--
KIT, O-RING MAINT & NZZL CLNNG Not illustrated BS-191922GS

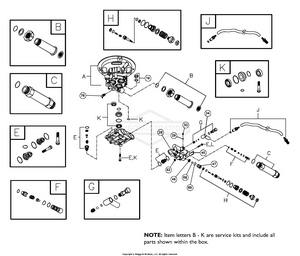

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
VALVE, Seat Plate, Plastic BS-190629GS
...
47
VALVE, Seat, Plastic BS-190630GS
...
62
CAP BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
ASSY, CASE, PISTON Service kit includes all parts shown within the box. BS-~NSP
...
B
KIT, WATER INLET,ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kit includes all parts shown within the box. BS-190628GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit includes all parts shown within the box. BS-190636GS
...
...
...
