020216-0 Briggs and Stratton Pressure Washer 2,600 PSI

Model: 020216-0

Save
 Part Not Listed?Part Not Listed?
product name

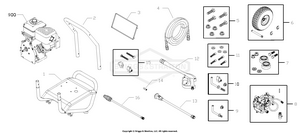

Main Unit

...
...
1
ASSY, Base BS-196134GS
...
2
HANDLE BS-B194718GS
...
3
ASSY, Billboard/Decal BS-194485GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
KIT, Engine Mounting Hardware BS-192318GS
...
6
KIT, Wheel BS-192317GS
...
xx
Axle BS-191267MGS
...
xx
E-RING BS-703977
...
7
KIT, Vibration Mount BS-192310GS
...
8
PUMP BS-317054GS
...
xx
VALVE, Thermal Relief BS-208673GS
...
xx
Key BS-23139DGS
...
9
KIT, Hook, Base BS-192309GS
...
10
KIT, Hook, Handle BS-194264GS
...
11
KIT, Pump Mounting Hardware BS-192131GS
...
12
GUN BS-B3263GS
...
13
ASSY, Wand BS-188792AGS
...
14
ORFICE BS-94804GS
...
15
KIT, Handle Connector BS-B2203GS
...
16
WAND, TURBO, .040, M22, MV BS-A2401BGS
...
xx
MANUAL, Operator's Not Illustrated BS-194489GS
...
xx
MANUAL, Engine Not Illustrated BS-MS3430
...
xx
KIT-O-RING Not Illustrated BS-705001
...
xx
KNOB, Control Not Illustrated BS-695755
...
xx
KIT, Decals Not Illustrated BS-194571GS
...
xx
PUMP SAVER Optional Accessory BS-6039

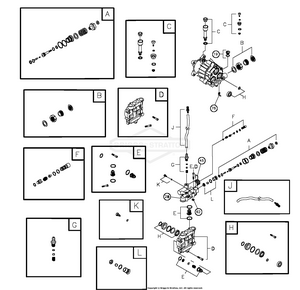

PUMP

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190673GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET Service kits include all parts shown within the box. BS-190670GS
...
C
KIT, BREATHER TUBE Service kits include all parts shown within the box. BS-190669GS
...
D
KIT, HEAD BRASS Service kits include all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
xx
OIL BOTTLE Not Illustrated BS-190585GS
...
xx
FILTER, Inlet Not Illustrated BS-B2384GS
...
...
...
