product name

020206-0 Briggs and Stratton Pressure Washer 2,050 PSI CleanShot

Model: 020206-0

Save
 Part Not Listed?Part Not Listed?
product name

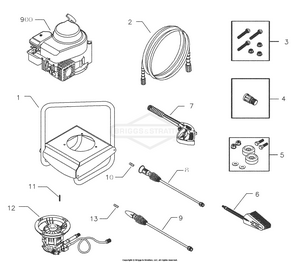

Main Unit

...
...
1
ASSY, BASE BS-194494GS
...
2
HOSE BS-B5693GS
...
3
KIT, Pump/Engine Mounting Hardware BS-192525GS
...
4
ADPTR, BAYONET AL-8 BS-B1051GS
...
5
KIT,Vibration Mount BS-192310GS
...
6
BRUSH, Utility BS-88185GS
...
7
GUN BS-84003228
...
8
WAND-ADJUSTABLE BS-205015CGS
...
9
WAND-TURBO BS-209318GS
...
10
ORIFICE BS-B1236DGS
...
11
KEY BS-23139GS
...
12
Assy, Pump (see "Pump") illustration and part list BS-206383GS
...
13
ORIFICE BS-B1237DGS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Items Not Illustrated BS-194140GS
...
MANUAL, Engine Items Not Illustrated BS-191460GS
...
KIT, Decals, SRV Items Not Illustrated BS-194481GS
...
BOTTLE, Oil Items Not Illustrated BS-100005

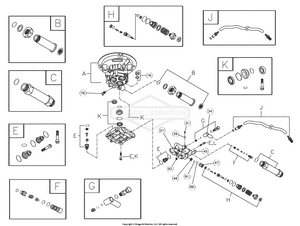

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
VALVE, Seat Plate, Plastic BS-190629GS
...
47
VALVE, Seat, Plastic BS-190630GS
...
62
CAP BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
ASSY, CASE, PISTON BS-~NSP
...
B
KIT,WATER INLET,ALUM Service kits and include all parts shown within the box. BS-190632GS
...
C
FITTING Service kits and include all parts shown within the box. BS-201497GS
...
E
KIT,CHECK VALVES Service kits and include all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kits and include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits and include all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kits and include all parts shown within the box. BS-190628GS
...
J
KIT, CHEMICAL HOSE Service kits and include all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kits and include all parts shown within the box. BS-190636GS
...
...
...
