01808-0 Briggs and Stratton Pressure Washer 3,400 PSI

Model: 01808-0

Save
Part Not Listed?Part Not Listed?
product name

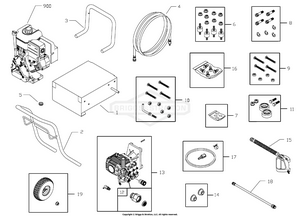

Main Unit

...

...
2

...
3

...

...
5
GROMMET BS-30809GS

...
6
Kit, Engine Mounting Hardware BS-192134GS

...
7
Kit, Vinyl Cap BS-192126GS

...
8
Kit, Pump Mounting Hardware BS-192132GS

...
9
Kit, Handle Hardware BS-B4196GS

...
10
Kit, Bumper Mounting Hardware BS-192910GS

...
11
Kit, Vibration Mount BS-192553GS

...
12
Kit, Garden Hose Inlet BS-194004GS

...
13

...
xx
FITTING BS-703824

...
xx
Valve, Thermal Relief BS-195016GS

...
xx
KEYSTOCK, 1/4X2 BS-703890

...
14
Kit, Pushnuts BS-194062GS

...
15

...
16
Kit, Nozzles BS-B4847GS

...
xx
NOZZLE-QC RED BS-195983AGS

...
xx
Nozzle, QC, Yellow BS-195983BGS

...
xx
Nozzle, QC, Green BS-195983CGS

...
xx
Nozzle, QC, White BS-191903DGS

...
xx
Nozzle, QC, Black BS-195846ZZGS

...
17
Kit, Chemical Hose/Filter BS-192796GS

...
18
WAND-QC BS-706595

...
19
Kit, Wheel BS-192526GS

...
xx
Oil Bottle Parts Not Illustrated BS-BB3061GS

...
xx
Manual, Operator’s Parts Not Illustrated BS-193142GS

...
xx
Manual, Engine Parts Not Illustrated BS-MS3430

...
xx
Kit, Decal, Service Parts Not Illustrated BS-195071GS

...
xx
KIT-O-RING Optional Accessories BS-705001

...
xx
Pump Saver Optional Accessories BS-6039

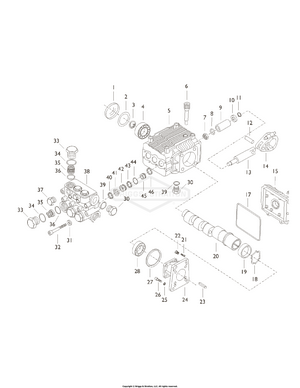

Pump (1808-0)

...

...
2

...
3
Snap Ring BS-112B2126GS

...
4

...
5
Pump Body BS-109B2126GS

...
6
Oil Cap/Dipstick BS-11287628PGS


...
8
Piston Washer BS-11187822PGS

...

...
10
Spacer Disc BS-11687628PGS

...
11
KIT-PISTON BS-201B2126GS

...
12
Piston Pin BS-115B2126GS

...
13
Guiding Piston BS-120B2126GS

...
14

...
15
Complete Rear Cover BS-118B2126GS

...

...
17

...
18
Snap Ring BS-12687628PGS

...
19

...

...
22
Grub Screw BS-152B2126GS

...
23
KEYSTOCK, 1/4X2 BS-703890

...
24
Gas Engine Flange BS-150B2126GS

...
25
LOCKWASHER, SPLIT 3/8 BS-703454

...
26

...
27



...
31

...

...
33

...
34

...
35
Complete Valve BS-10287822PGS

...
36



...
39

...
40
Support Ring BS-106B2126GS

...
41

...
42
Piston Guide BS-108B2126GS

...
43

...
44

...
45
Rear Piston Guide BS-131B2126GS


...
A
KIT,Valve (Includes Ref. Nos. 35 & 36) BS-193955GS

...
B
KIT-PISTON (Includes Ref. 8) BS-201B2126GS

...
C
KIT-OIL SEAL (Includes Ref. Nos. 1, 17 & 46) BS-202B2126GS

...
D
KIT-WATER SEAL (Includes Ref. Nos. 41 & 44) BS-203B2126GS

...
E
KIT-SUPPORT RING (Includes Ref. No. 40) BS-204B2126GS

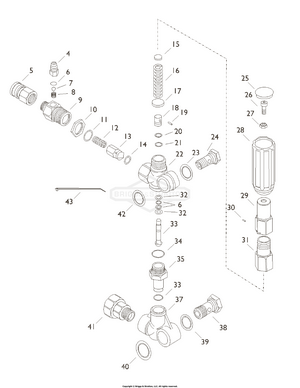

Unloader (1808-0)

...
...
--
Complete Unloader BS-153B2126GS

...
4
HOSE TAIL BS-190642GS

...
5
FITTING BS-703824

...
6
KIT, Chemical Injection BS-192914GS


...

...
9
Injector Body BS-213B2126GS

...
10
Injector Nut BS-215B2327GS

...
11

...
12

...
13

...
14

...
15
Spacer Plate BS-220B2327GS

...
16

...
17
Spring, Spacer Plate BS-222B2327GS

...
18
Upper Piston BS-219B2327GS



...
21

...
22
Valve Housing BS-228B2327GS

...
23

...
24
Inlet Bolt BS-226B2327GS


...



...
29


...
31
Spring Guide BS-242B2327GS


...
33
Lower Piston BS-232B2327GS

...
34

...
35
Piston Guide BS-233B2327GS

...
36

...
37
Bypass Fitting BS-238B2327GS

...
38
Inlet Bolt BS-236B2327GS

...
39

...
40

...
41
Conn, Gdn Hse BS-95320GS

...
42

...
43
Wrap, Tie BS-28739GS
...
...
...
