Sanitaire Upright Model: SC882A Add to My Models

Most popular:
Disturbulator Assembly (12") (26060a-1) 53270
Belt-Disturbulator Drive 30563A
Tube - Disturbulator (13236 13236-3

SC882A

SC882A

01. Dirt Cup (01959-318n) 01959-313N
02. Flange Bag 14765-1
03. Dust Cup Assembly 14844-12
04. Clamp 26266-2
05. Gasket 38289
06. Bag Assembly - Packaged 54422-10
07. Pin Cover 55399-1
xx. Hardware Pkg 57838B
xx. Gasket-Dirt Cup 58223
xx. Dust Cup Support 54561-1
xx. Owners Guide 78091

SC882A

01. Hood & Nameplate Assembly - P 54097-5
02. Name Plate 77147
03. Screws-Package 10 (48868 53143
04. Knob Assembly-Blner (38053-1 38053-2
05. Screws/Package 10 (Ew126-8p5z 53228-2
06. Cable Clamps/Package 5 (Nla) 53160
07. Screw Package (53238-29 53238-13
08. Screw Package, Use 53238-14 53238-17
09. Wire Nuts/Package 10 53214-1
10. Tape - Foam 49052-3
11. Duct Assembly (R) 56383-1SV
12. Motor Assembly 54352-15
13. Gasket - Motor Seal 30517
14. Duct Assembly (L) 56382-1SV
15. Springs-Ft Ped-Package5 53097
16. Discontinued, Use 53238-14 53238-17
17. Clamps&Screws-Package 6 53140
18. Base Assembly - Cartoned 53425-24
19. Cam (Right) (24964a) 24964A-1
20. Cam (Left) (24965a 24965A-1
21. Rivets-Package 10 (Nla) (Nla) 53118
22. Stl Washers-Package (48495 (Nla) 53133
23. Scr.-Package 10 (Nla) 53228-7
24. Clamp 38288-1
25. Bellows 14763-1
26. Cover - Wheel 36263
27. Hood Springs-Package 10 53117
28. Fan Chamber Repl Kit 52334
29. Cover - Fan Scroll(52334) 13770-1
30. Screw Package, Use 53238-14 53238-17
31. Pedal-Foot 24834A-5
xx. Washer Package 53188
xx. Nuts-Package 10 (Ew14-8zp 53213-4
xx. Wire Assembly (Grounding) 54173-1
xx. Wire & Terminal Assembly 54177

SC882A

01. Wheel & Axle Assembly 37234-5SV
02. Washers-Package 10 (47585 53110
03. Push Nuts-Package 10 53121
04. Furniture Guard Assembly 76334
05. Rear Wheel Assembly 76370-3SV
06. Axle - Rear 37183
07. Clamps-Package 10 (55535-2 53201
08. Screw Package (Ew312-10t8 53238-11
09. Axle Springs-Package (36407a 53076-2
10. Wheel - Front 35859A-1
11. Axle - Front 35947A
12. Belt-Disturbulator Drive 30563A
13. Tube - Disturbulator (13236 13236-3
14. Bristle Strip Se (52282-3 52282-4
16. Bearing & Retainer Assembly 54256
15. Cap - Disturbulator 26057A
17. Locknuts-Package 10 (49175 53158
18. Kliprings-Package 10 (49900 53184
19. Shaft - Disturbulator 25937
20. Cap - Cover 26059A
21. Bearing & Retainer Assembly 54256
22. Bottom Plate Assembly 25922-1
23. Foam Tape(50") 46538-4
xx. Axle Bushing - Packaged 63233
25. Disturbulator Assembly (12") (26060a-1) 53270

SC882A

01. Label FNLA
02. Screw (Package 10) 53238-18
03. Washer/Package.10 60946
04. Spring (Package.10) 60945
05. Retainer-Cord 28316-355N
06. Screws-Package 10 53197-1
07. Housing - Switch (Lh) 76643-355N
08. Rocker Switch 28073A
09. Upper Cord Assembly 76767
10. Wire Splice 5 60192-1
11. Shield-Wiring 59741-316N
12. Screws (Package.10) 60947
13. Housing - Switch (Rh) 76644-355N
14. Supply Cord Assembly 36577A-23
15. Upright Handle & Grip Assembly 15774-2SV
16. Housing - Switch (Rh) 76644-355N
xx. Cord - Extension Extension Cord 76224
xx. Cord Lock Extension Cord Lock 76225-355N
xx. Retainer - Cord (Lower) 13154B-355N
xx. Tube - Handle (Lower) 12637-8
xx. Handle Socket Assembly 38183-1SV
xx. Shield - Handle Socket 36439
xx. Screw Package 62082-1

SC882A

01. Motor Assembly-Packaged 54352-16
02. Washer Package 53188-2
03. Washer - Fan Package (10) 53148-1
04. Washer - Fan Package (10) 53148-1
05. Motor Brush Assembly UAU-000000-00K03
06. Fan Blower - Motor UAU-000000-00K02
07. Pulley - Motor UAU-000000-00K06


-xx. = Not shown on schematic.

Sort By:
Page of 9
Eureka Electrolux Sanitaire Belt Upright Fits Most Each.  Manufacturer's Model/Part Number: 30563A. Eureka Electrolux Sanitaire Fan Lexan 2000 Series 7/8&quote

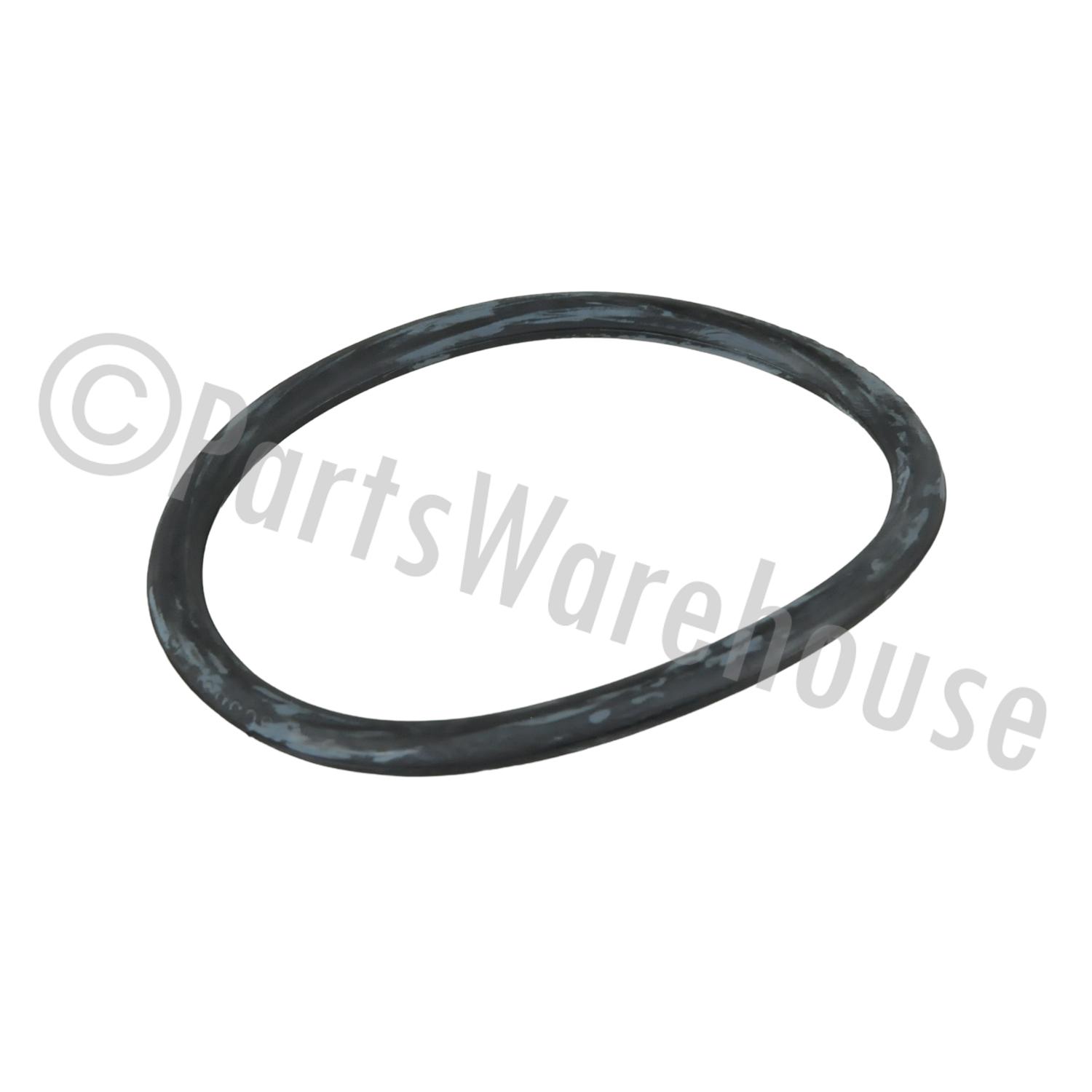

Sanitaire Belt Round Upright Each #30563A
