Riccar rsl3c
Model: Supralite RSL3C Add to My Models

Riccar rsl3c


1. Handle Assembly D431-3100
2. Handle Right/Left Assembly C431-3614
3. Screw, #8 x 5/8" A732-8314
4. Screw, #8 x 7/16" A732-8414
5. Main Switch Handle A428-2100
6. Wire Connectors Md. B123-0100
7. Handle Back B431-3343C
8. Cord Hook B384-0900
9. Upper Cord Hook Washer A430-1100
10. Upper Cord Hook Screw A430-0205
11. Handle Cord Harness A434-3414
12. Handle Tube B431-3504
13. Screw. #10-32x1.625 A432-0705
14. Metal Cord Hook B430-1205
15. Handle Tube Bracket B431-2914E
16. Hex Nut A432-0805
17. Lower Handle Upper Fan Housing Assembly D431-3014
18. Fan Duct Cover w/Seal Assembly D123-3814
19. Lower Fan Housing B123-3614
20. Fan B123-3000
21. Motor Bracket Felt Ring Seal A121-0100E
22. Motor/Fan Assembly D113-1300
23. Bag Collar Bag Holder B211-2214
24. Bag Collar Bag Ring B211-2114B
25. Cloth Bag B211-3000C
26. Lower Bag Spring B211-1204
27. Lower Bag Clip B211-1914F
28. Bag RFH-6
29. Power Cord A434-3314
30. Fan Washer A732-9305
31. Screws A732-9206
32. Power Cord w/Wire Harness Upgrade Kit D434-3414
33. Bag Collar Seal D211-5700
xx. Grounding Wire (Not Shown) B333-1100
xx. E-Clip for Motor Shaft (Not Shown) A732-3000
xx. Retro Fit Kit for Hinged Bag Holder D211-3614
xx. Screws A732-8312

Riccar rsl3c


1. Headlamp Lens Textured B018-0415
2. Nozzle Housing Assembly D017-2730
3. Hex Nut A432-0805
4. Lower Handle Upper Fan Housing Assembly D431-3014
5. Fan Duct Cover w/Seal Assembly D123-3814
6. Lower Fan Housing B123-3614
7. Fan B123-3000
8. Motor Bracket Felt Ring Seal A121-0100E
9. Motor/Fan Assembly D113-1300
10. Furniture Guard B029-0314
11. Screws A732-8314
12. Belt B014-0814
13. Light Bulb Xenon A350-0000
14. Light Socket A018-0900
15. Large Wheel Axle B010-0101
16. Wheel-Rear B350-6631
17. Base Tray Assembly D016-1014
18. Base Plate Wheel Axle B010-0001B
19. Base Plate Wheel B010-2631
20. Wood Agitator w/End Caps B012-2800C
21. End Cap B012-2914
22. Base Plate Cover B015-2014
23. Combination Screw (m4 x 12) A732-2500

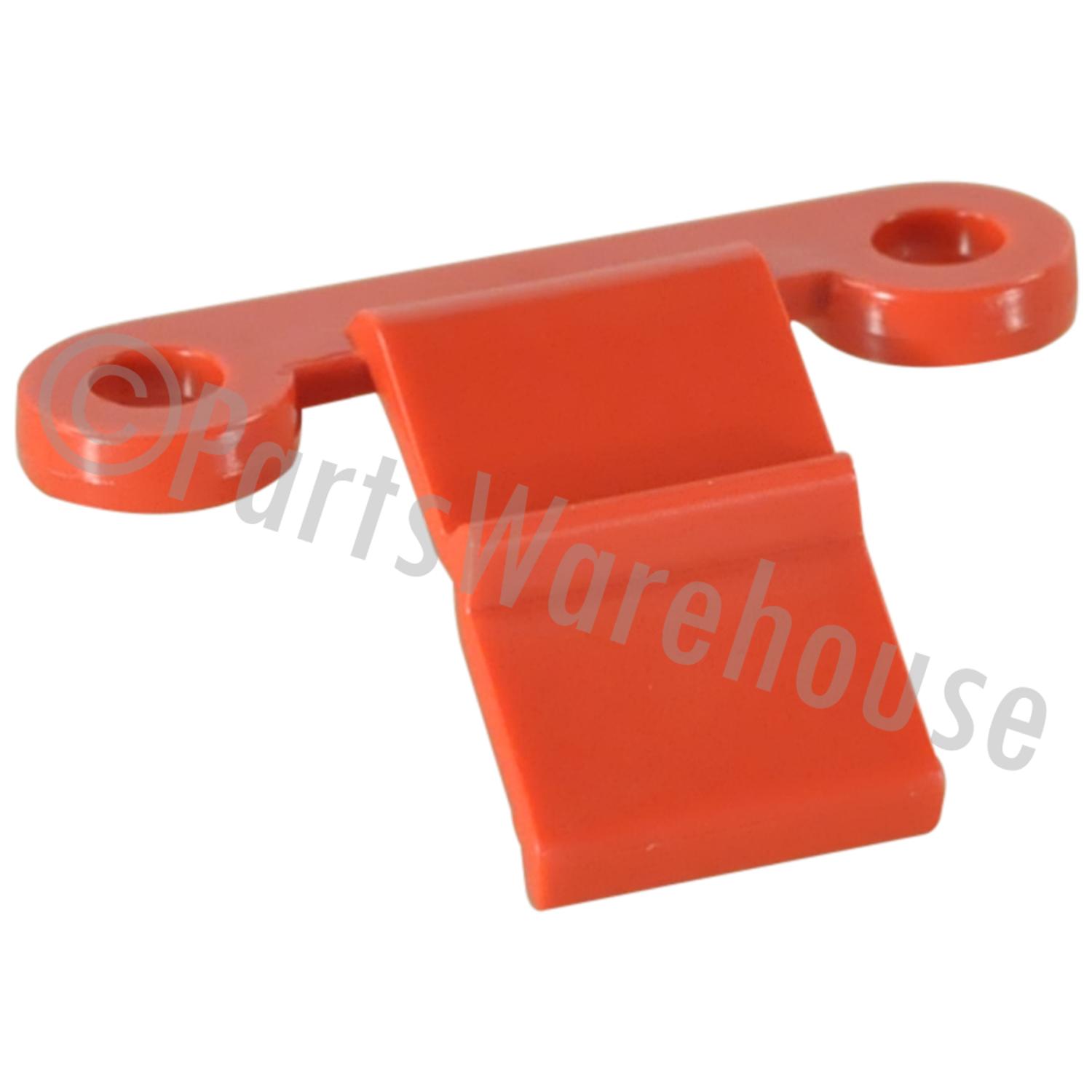

24. Upright Stop B016-1230
25. Circuit Breaker A028-0114
26. Strain Relief Washer B034-0100
27. Fan Washer A732-9305
28. Screws A732-9206
xx. E-Clip for Motor Shaft (Not Shown) A732-3000

-xx. = Not shown on schematic.
