Oreck U7070ECS

Oreck Forever Series Gold Upright Model: U7070ECS Add to My Models

Oreck U7070ECS

2. Dock, Blue Mb Rear Bag T-Cc 75583-02-480
3. Dock, Blue Mb Front Bag T-Cc 75582-02-480
4. Filtration Bag With Docking Systems 6pk AK1CC6A
4b. Bag Pack, 8Pk Cc Odor Control AK1CC6H
5. Bag, U7070 Outer 76133-07
10. Assembly, Connector 77075-04-0327
11. Carry Handle, Rear Gray 77014-01-0384
12. Clamp, Carrying Handle 77015-01-0327
13. Detent, Carrying Handle 77066-01
14. Collar, Upper Handle 77048-01-0327
15. Tube, Air 77002-03
16. Label, Tube W/Warning 77078-02
17. Collar, Lower 77049-01-0327
18. O'Ring, Tube Connector 77054-01

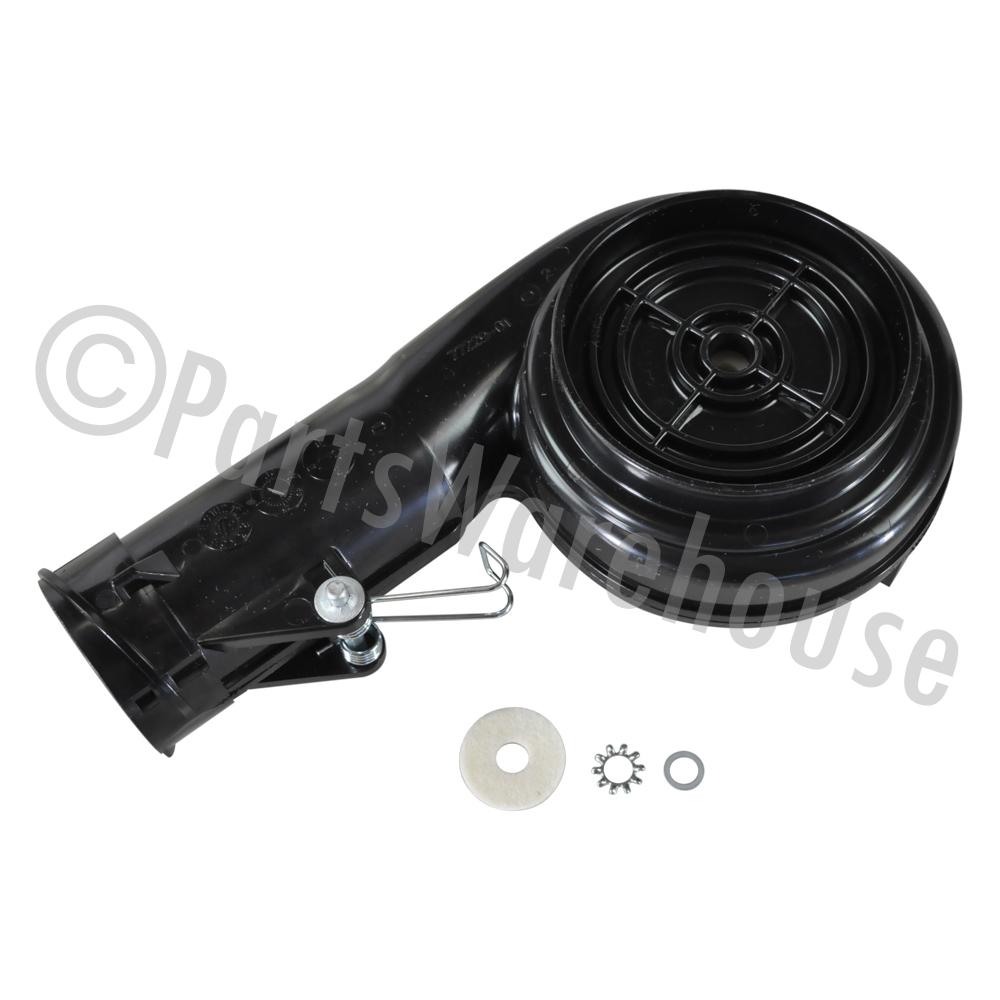

21. Service Assy Xl21 Fan Kit 09-77230-51
22. Clamp, Scroll 77056-01
25a. Led Board W/Hall Effect (P3) 79086-01
26. Assy, Black Top Cover/Door 09-79185-01
28. Door, U7000 Belt 79078-01-0327
29. Detent 77017-01
30. Assy, Reflector 09-77071-02
30a. Mount, Led 77247-01-0000
32. Bumper, Main Gray 77012-01-0384
33. Bumper Side Gray 77013-01-0384
35. Seal, Inlet Foam (Black) 77031-01
36. Seal, Felt Inlet (White) 77032-01
37. Seal, Power Nozzle 5" 77043-01
38. Seal, Power Nozzle 1.5" 77043-02
39. Strain Relief, Square 03-00494-01
40. Kit, Motor 120V Xl21 09-77038-02
41. Kit, Mtr Brsh/Spr 119552-00 77114-01
42a. Belt, Flat Corded 79095-01
43. Brushroll, Xl21 Skirted W/Mag 79192-02
47. Assy, Baseplate Xl21 09-77092-05
49. Sock Guard 77055-01
50a. Brush, Tufted Edge (Short) 79186-01
51. Wheel, Front 77050-02-0327
52. Axle, Front Wheel 03-00583-01
53. Axle, Baseplate 03-00630-01
54. Wheel, Rear 75187-02-0327
55. Seal, Lamp Housing 77122-01
57. Switch, 2-Spd (Hardwire) 77155-01
58. Grips, Black, Hrd Wr W/Ovrmld 09-77208-03
59. Assy, Cord Dump Sonic Weld Blk   09-77016-03
60. Detent, Cord Dump 77061-02
61b. Tube, Gold Handle 77028-04
62. Harness, 2-Cond W/Jst Vh 79103-02-327
63. Cord, Black 36 Ft 2-Conductor 79027-01-327
80. Duct, Air 79150-01-0327
83. Kit, Bag Dock Cc Style 09-75657-01
86. Stiffener, Lower Bag Platinum 76061-02-0327
87. Assy, U7070 Fascia/Lens Svc 09-79160-57
96. Circuit Board (P3) Upright 79087-01
97. Jumper, Motor To Circuit Board   79096-01


-xx. = Not shown on schematic.

Sort By:
Page of 3
Oreck Filtration Bag With Docking Systems, 6 Bags. Replaces CCPK8DW #AK1CC6A Oreck Edge Brush Assembly
Oreck Filtration Bag With Docking Systems, 6 Bags. Replaces CCPK8DW #AK1CC6A
Our Price: $26.50
Sale Price: $22.08
You save $4.42!
Oreck Edge Brush Assembly #79186-01
List Price $3.46
Sale Price $2.88
You save $0.58!
Usually ships Same Day / Next Day Usually ships Same Day / Next Day
Oreck Rear Wheel Axle #03-00630-01 Oreck Odor Fighting Hypo Bags
Oreck Rear Wheel Axle #03-00630-01
Our Price: $3.17
Sale Price: $2.64
You save $0.53!
Oreck Odor Fighting Hypo Bags #CCPK8OF
List Price $35.33
Sale Price $29.44
You save $5.89!
Usually ships Same Day / Next Day Usually ships Same Day / Next Day
Oreck Filtration Bag With Docking Systems, 6 Bags. Replaces CCPK08H #AK1CC6H Oreck Baseplate, 7060 #09-77092-05
Oreck Filtration Bag With Docking Systems, 6 Bags. Replaces CCPK08H #AK1CC6H
Our Price: $35.33
Sale Price: $29.44
You save $5.89!
Oreck Baseplate, 7060 #09-77092-05
Our Price: $23.02
Sale Price: $19.18
You save $3.84!
Usually ships Same Day / Next Day Usually ships within 3 days
Oreck Bag Docking Kit #09-75657-01 Oreck Brushroll U7070 U7060 U7010 #79192-02
Oreck Bag Docking Kit #09-75657-01
Our Price: $20.28
Sale Price: $16.90
You save $3.38!
Oreck Brushroll U7070 U7060 U7010 #79192-02
Our Price: $51.98
Sale Price: $43.32
You save $8.66!
Usually ships Same Day / Next Day Usually ships within 3 days
Oreck Cord, U7230 36' 2 Wire Black #79027-01-327 Oreck Detent (U2000R-1 & U2000Rb-1) #77066-01
Oreck Cord, U7230 36' 2 Wire Black #79027-01-327
Our Price: $43.39
Sale Price: $36.16
You save $7.23!
Oreck Detent (U2000R-1 & U2000Rb-1) #77066-01
Our Price: $4.67
Sale Price: $3.89
You save $0.78!
Usually ships within 3 days Usually ships within 3 days
