Koblenz Commercial Floor Machine. Model: SP-15 Add to My Models

SP-15

1. Handle Assembly 46-3168-00-2
1-1. Handle Cover 05-3975-9
1-2. Handle Label 17-3782-4
1-3. Handle Grip 12-0830-5
1-4. Reset Label 17-3677-6
1-5. Bolt 10-24 X 3/4 01-1256-5
1-6. Circuit Breaker 2O A 38-0338-4
1-7. Screw 8-32X1/2" 01-1732-5
1-8. Star Washer 04-0271-9
1-9. Hex Nut 10-24 Nc 02-0015-4
1-10. Switch Insulation 08-1857-5
1-11. Swicth Actuator Spacer 05-3536-9
1-12. Dust Control Gasket 37-0225-5
1-13. Security Lock 13-2209-8
1-14. Screw 6X1/2 01-0272-3
1-15. Bolt 6-32 X 1 01-0851-4
1-16. Star Washer .140/.145X.310X.020 04-0275-0
1-17. Flat Washer 3/4 X 1-1/4 04-0036-6
1-18. Stain Relieve No 1244 12-0414-8
1-19. Momentary Switch 11-0096-5
1-20. Connector 10-0140-3
1-21. Switch Cable Assembly 28-0958-0
1-22. Cord Hook 05-4275-3
1-23. Bolt 1/4-20X 1 3/4 01-0870-4
1-24. Handle Assembly 23-0982-00-1
1-25. Bolt 1/4-20X 1 1/4 01-1769-7
1-26. Handle Gasket 12-0869-01-1
1-27. Nail Gauge 9 Length 2 1/2" 03-0593-8
1-28. Security Lock Piston 13-2205-6
1-29. Security Lock Button 13-2206-4
1-30. Security Lock Housing 13-2207-4
1-31. Security Lock Cover 13-2208-0
1-32. On/Off Lever 05-3979-1
1-33. Lever Spring 24-0292-3
1-34. Bolt 8-32X7/8 01-1984-2
1-35. Star Washer No. 8 04-0276-8
1-36. Neutral Laber 17-3988-7
1-37. Internal Tooth Washer 04-0493-9
1-38. Bolt 8-32 X 3/8 01-0852-2
1-39. Strain Relieve 1274 12-0313-2
1-40. Line Cord 28-1078-6
1-41. Nylon Nut 02-0092-3
1-42. Rubber Strain Relieve 12-0115-1
1-43. Motor Line Cord 28-0672-7
1-44. Flat Washer 04-0019-1
1-45. Heyco Cap 2683 12-1167-00-5

SP-15

2. Motor Assembly 46-3774-00-0
3. Caution Plate 17-3550-5
4. Rivet "U" Type # 4 03-0119-2
5. Specification Plate 17-5928-00-1
6. Step Bolt 3/8 01-1746-5
7. Pipe Clamp Position 06-0404-01-1
8. Pressure Washer 3/8 04-0073-9
9. Knob 06-0865-3
10. Acorn Cap 1/4-20 Nc 02-0119-4
11. Chassis Assembly 46-3766-00-6
11-1. Yoke 06-0771-3
11-2. Bolt 5/16 X 1 01-1171-3
11-3. Chassis Handle 05-5591-01-0
11-4. Chassis 06-1018-02-4
11-5. Bumper 12-1158-00-0
11-6. Brace 05-1975-1
11-7. Bushing Brace 25-1210-1
11-8. Wheel 45-0573-1
11-9. Wheel Shaft 25-1314-01-9
11-10. Flat Washer 04-0074-7
11-11. Cap Nut 04-0671-01-8
11-12. Stainless Steel Flat Washer 04-0545-6
11-13. Spring Washer 04-0397-2
11-14. Yoke Shaft 25-1314-02-7
11-15. Allen Set 5/16 X 5/6 01-1006-4

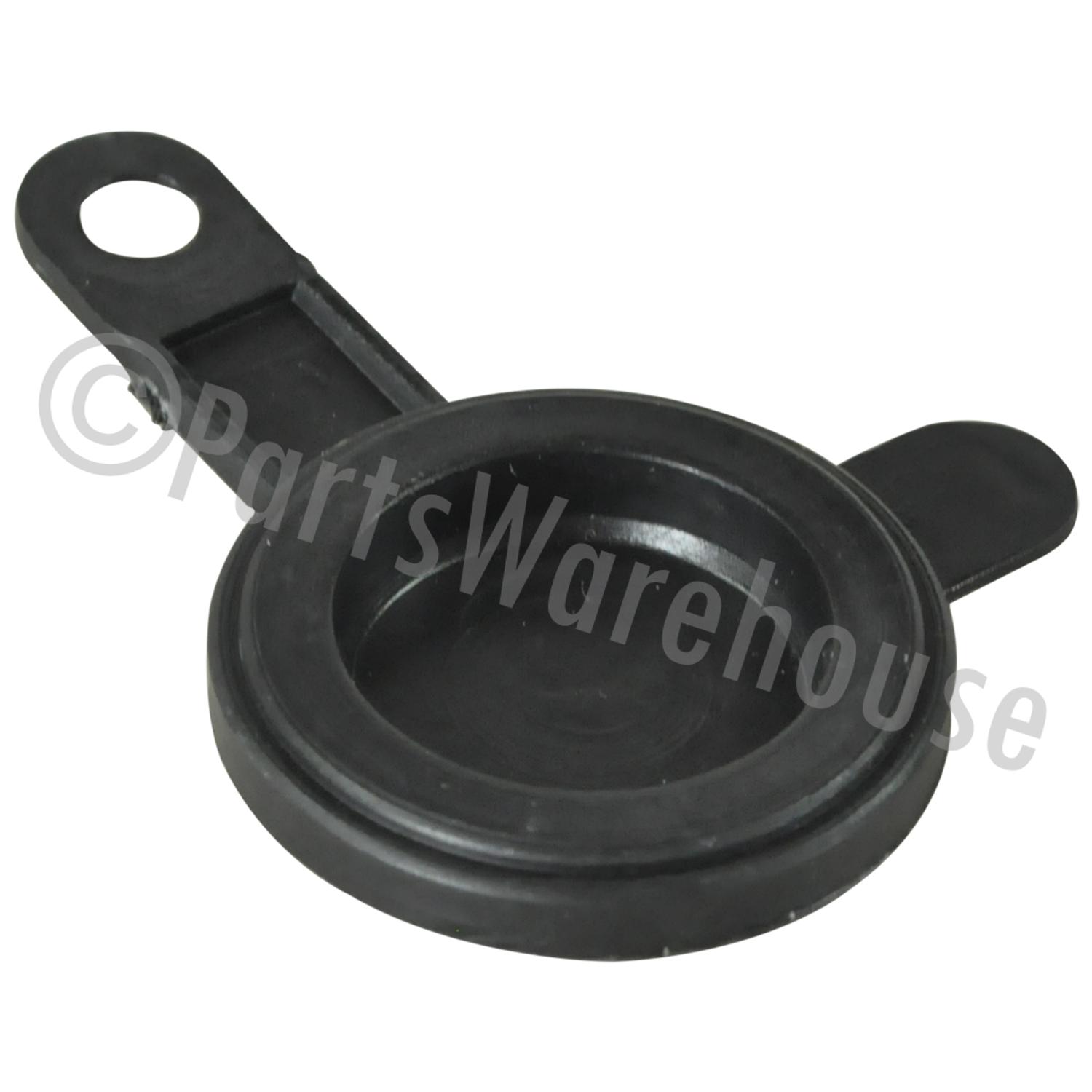

11-16. Chassis Cap 13-0064-01-7

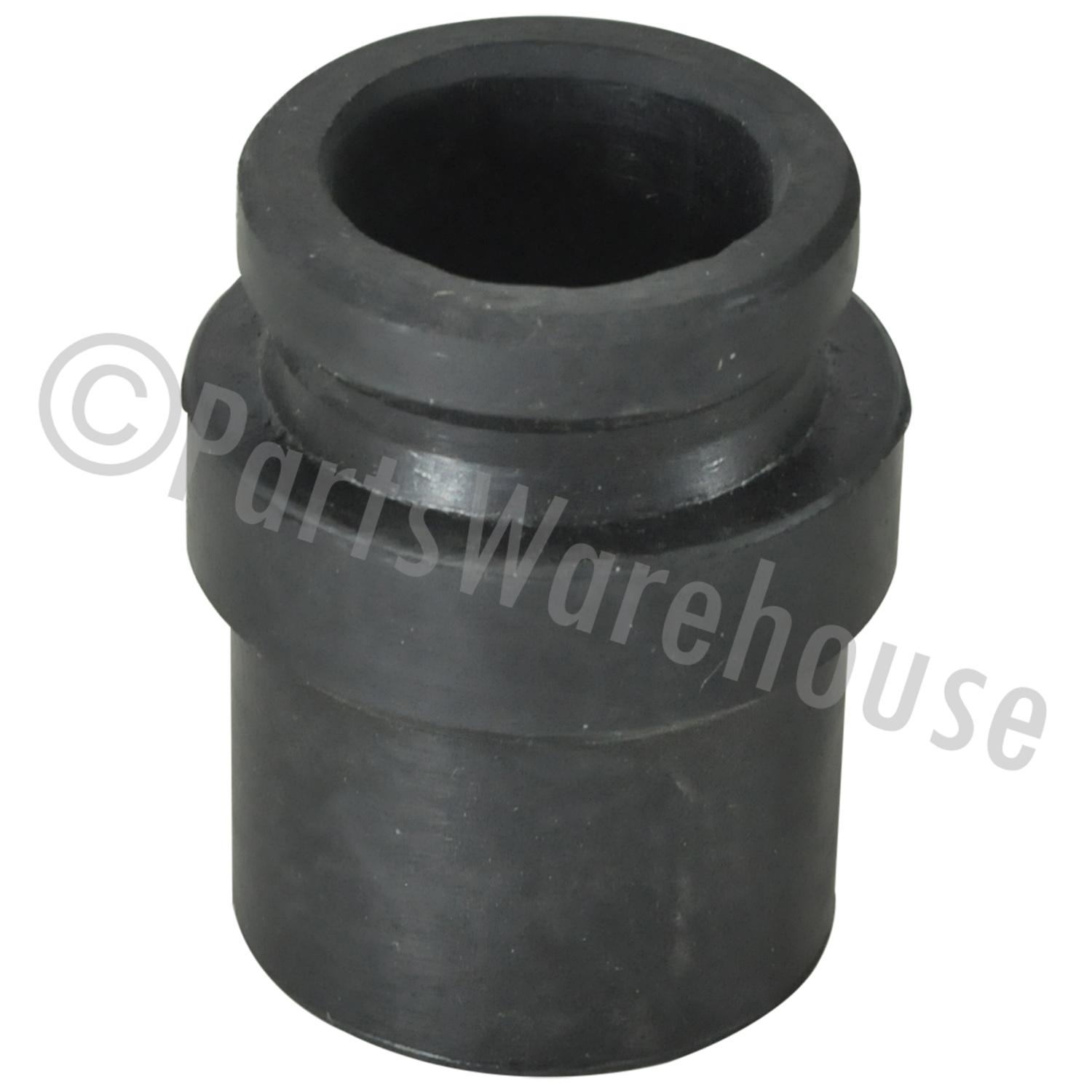

11-17. Dust Control Coupling 12-1165-00-5
11-18. Allen Set X 01-2106-1

SP-15

12. Bolt 3/8 X 1 01-1773-9
13. Pressure Washer 3/8 04-0142-2
14. Nylon Nut 02-0092-3
15. Motor Spacer 25-1495-01-6

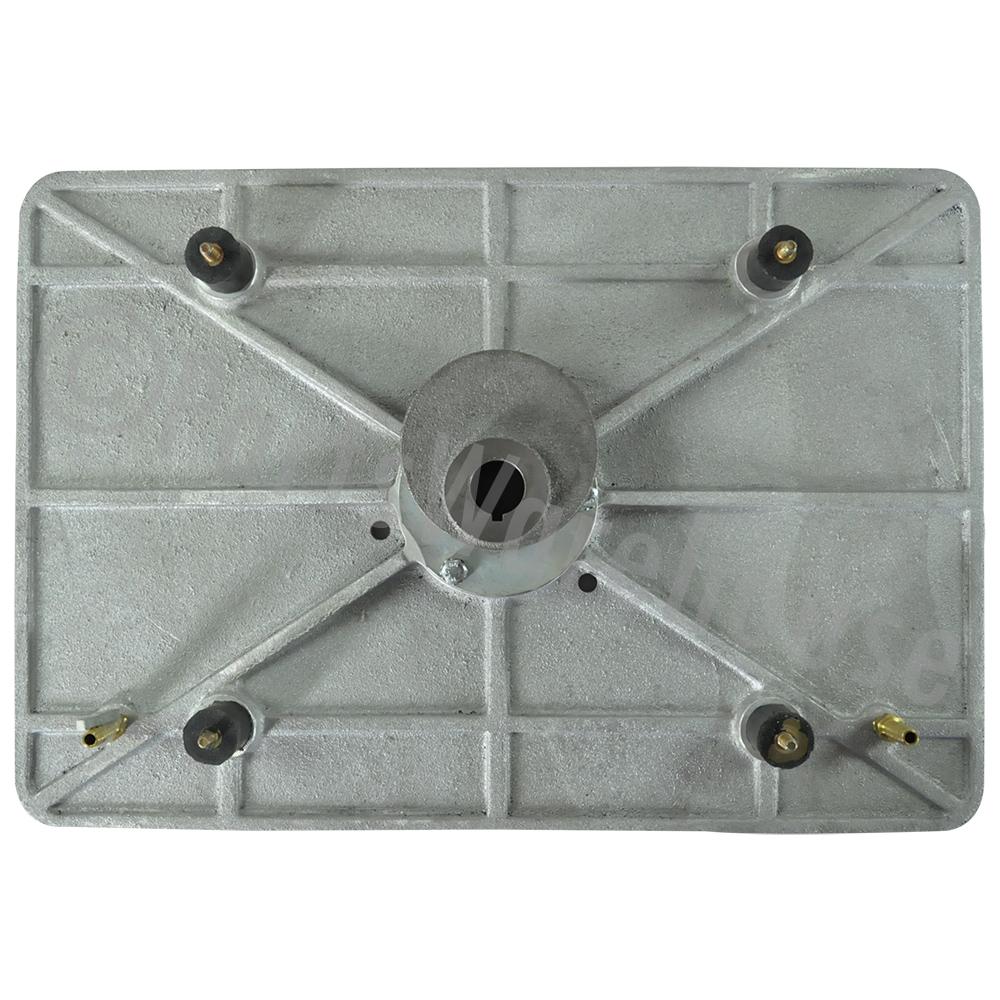

16. Pad Driver Assembly 46-3767-00-4
16-1. Shock Absorber (only available as kit, 4 isolators per package) 45-0867-7
16-2. Bolt 1/4-20 X 1/2 01-0873-8
16-3. Bearing Retainer 05-5585-00-01-2
16-4. Barbed Hose 1/8 Npt 27-0658-00-8
16-5. Bearing 6008 Lu 26-0260-01-3
16-6. Pad Driver 06-1019-01-4
16-7. Spirol Pin 25-1369-5
16-8. Orbital Weight 06-1021-01-0
17. Wedge 3/16 X 1 " 25-0024-7
18. Pad Driver Washer 05-5586-01-0
19. Bolt 5/16 X 1-1/2 01-1777-0
20. Facing Grip 12-1160-00-6
21. Pad 37-0360-00-0
xx. User Manual 19-0845-00-8
xx. 4 Gallon Tank 45-0865-0
xx. 22 Lb Weight 45-0865-1
xx. Pad Kit 45-0864-4
xx. Shock Absorbers Kit 45-0867-7

-xx. = Not shown on schematic.
