DC47

Dyson DC47 Cylinder Vacuum Model: DC47 and DC47 Animal Add to My Models

DC47

1. Upper Duct Assembly DY-923991-02
2. Inlet Duct Assembly DY-921273-01
3. Screw DY-910702-45
5. PCB Assembly NA
6. Glamour Cap Filter Side DY-921348-01
7. Ball Shell Service Assembly Filter Side DY-924597-01
8. Post Filter Assembly DY-924057-02
9. Ball Shell Axle Filter Side DY-919514-01
10. Motor & Bucket Service Assembly DY-964721-04
11. Croissant Assembly DY-924289-05
12. Screw DY-910702-04
13. Cable Rewind Assembly DY-924594-12
14. Stabiliser Wheel Glamour Cap DY-921703-01
15. E-Clip DY-900146-01
16. Stabiliser Wheel DY-921702-01
17. Lower Ball Body Service Assembly DY-924595-01
18. Screw DY-910703-06
19. Chassis Cover Plate DY-919389-01
20. Screw DY-910703-06
21. Brake Cover DY-919498-01
22. Spring DY-919901-61
23. Screw DY-911762-01
24. Brake Wheel Assembly DY-918195-01
25. Brake Carriage DY-919500-01
26. Lower Duct Assembly DY-919640-03
27. Gloss Cloth Tape NA
28. Cable Rewind Spring Service Assembly DY-924592-02
29. Screw DY-910703-03
30. Screw DY-910703-03
31. Stowage Bracket DY-919501-01
32. Ball Shell Service Assembly Service Side DY-924598-01
33. Glamour Cap Service Side DY-921352-01
34. Screw DY-910702-45
35. Ball Shell Axle Service Side DY-922124-01
36. Screw DY-910703-06
37. Screw DY-910703-05

DC47

1a. Cyclone Assembly (Iron/Satin Rich Purple) DY-925042-01
1b. Cyclone Assembly (Iron/Satin Blue) DY-925042-03
2. Bin Assembly DY-924015-01

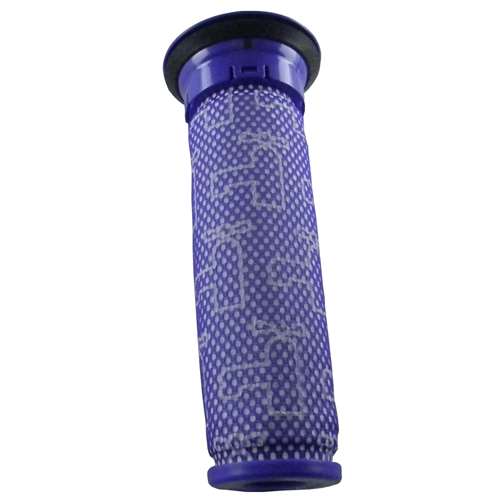

3. Pre-Filter Assembly DY-919354-01

DC47

1. Catch DY-911523-03
2. Spring DY-900199-21
3. Catch NA
4. Spring DY-900199-21
5. Extension Tube Assembly DY-917260-05
6. Catch NA
7. Spring NA
8. Hose Assembly DY-923769-03
9. Power Extension Tube Assembly NA
10. Catch DY-911523-03
11. Spring NA
12. Carbon Fibre Motorhead Assembly NA
13. Jockey Wheel Assembly NA
14. End Cap Assembly DY-920983-01
15. Brushbar Assembly DY-920325-04
16. Slim Roller Assembly DY-920488-01
17. Front Soleplate Service Assembly DY-922029-01
18. Screw NA
19. Axle DY-914872-01
20. Wand Handle Assembly DY-917276-05
21. Combination Tool Assembly DY-918068-01
22. Stair Tool DY-914417-01
23. Catch NA
24. Spring NA
25. Handle and Hose Assembly NA
26. Dual Cavity Flat Out Head NA
27. Tool Holder DY-918064-01
28. Carbon Fibre Turbinehead Assembly DY-920277-08
29. End Cap Assembly DY-915137-01
30. Brushbar Assembly DY-920325-04
31. Front Soleplate Service Assembly DY-922029-01
32. Screw NA
33. Axle DY-914872-01
34. Slim Roller Assembly DY-920488-01

Dyson DC50 Animal and Multifloor Upright Vacuum Cleaner Parts

1. Mattress Tool DY-908887-02
2. Stubborn Dirt/Stiff Bristle Brush Assy DY-918508-01
3. Tangle-free Turbine Tool DY-925068-02
4. Paddle Service Assy DY-963556-01
5. Soleplate Service Assy DY-963826-01
6. Flat Out Head Assy DY-914617-02
7. Dyzolv DY-903888-06
8. Dyson Groom DY-921001-01
9. Soft Dusting Brush DY-908896-02
10. Up Top Tool/Multi Angle Brush DY-917646-01
11. Flexi Crevice Tool Assy DY-917633-01
12a. Iron/Clear Car Cleaning Kit (Retail Pack) DY-908909-08
12b. Carpet Cleaning Kit DY-904975-03
13. Articulating Hard Floor Tool DY-920019-01
14. Zorb Pouch DY-903914-07


- xx. = Not shown on schematic.

Sort By:
Page of 7
Spring. Manufacturer/Part number: 900199-21 Dyson Articulating Hard Floor Tool Assy #DY-920019-01
Dyson Spring #DY-900199-21
List Price $5.04
Sale Price $4.20
You save $0.84!
Dyson Articulating Hard Floor Tool Assembly #DY-920019-01
List Price $59.46
Sale Price $49.55
You save $9.91!
Usually ships Same Day / Next Day Usually ships Same Day / Next Day
Dyson Flexi Crevice Tool Assembly #DY-917633-01 Dyson Soft Dusting Brush #DY-908896-02
Dyson Flexi Crevice Tool Assembly #DY-917633-01
Our Price: $40.13
Sale Price: $33.44
You save $6.69!
Dyson Soft Dusting Brush #DY-908896-02
Our Price: $40.18
Sale Price: $33.48
You save $6.70!
Usually ships Same Day / Next Day Usually ships Same Day / Next Day
Dyson Stubborn Dirt/Stiff Bristle Brush Assembly #DY-918508-01 Dyson End Cap, DC35 DC44 #DY-920983-01
Dyson Stubborn Dirt/Stiff Bristle Brush Assembly #DY-918508-01
Our Price: $28.94
Sale Price: $24.12
You save $4.82!
Dyson End Cap, DC35 DC44 #DY-920983-01
Our Price: $5.28
Sale Price: $4.40
You save $0.88!
Usually ships Same Day / Next Day Usually ships Same Day / Next Day
Dyson Combination Tool Assy #DY-918068-01 Dyson Front Soleplate Service Assembly for DC35 #DY-922029-01
Dyson Combination Tool Assembly #DY-918068-01
Our Price: $16.81
Sale Price: $14.01
You save $2.80!
Dyson Front Soleplate Service Assembly for DC35 #DY-922029-01
Our Price: $16.99
Sale Price: $14.16
You save $2.83!
Usually ships Same Day / Next Day Usually ships Same Day / Next Day
Dyson Turbo Brush, DC47 Dark Gray #DY-920277-08 Dyson Roller, Power Nozzle Bottom Plate DC35, DC47 #DY-920488-01
Dyson Turbo Brush, DC47 Dark Gray #DY-920277-08
Our Price: $93.20
Sale Price: $77.67
You save $15.53!
Dyson Roller, Power Nozzle Bottom Plate DC35, DC47 #DY-920488-01
Our Price: $5.72
Sale Price: $4.77
You save $0.95!
Usually ships within 3 days Usually ships within 3 days
